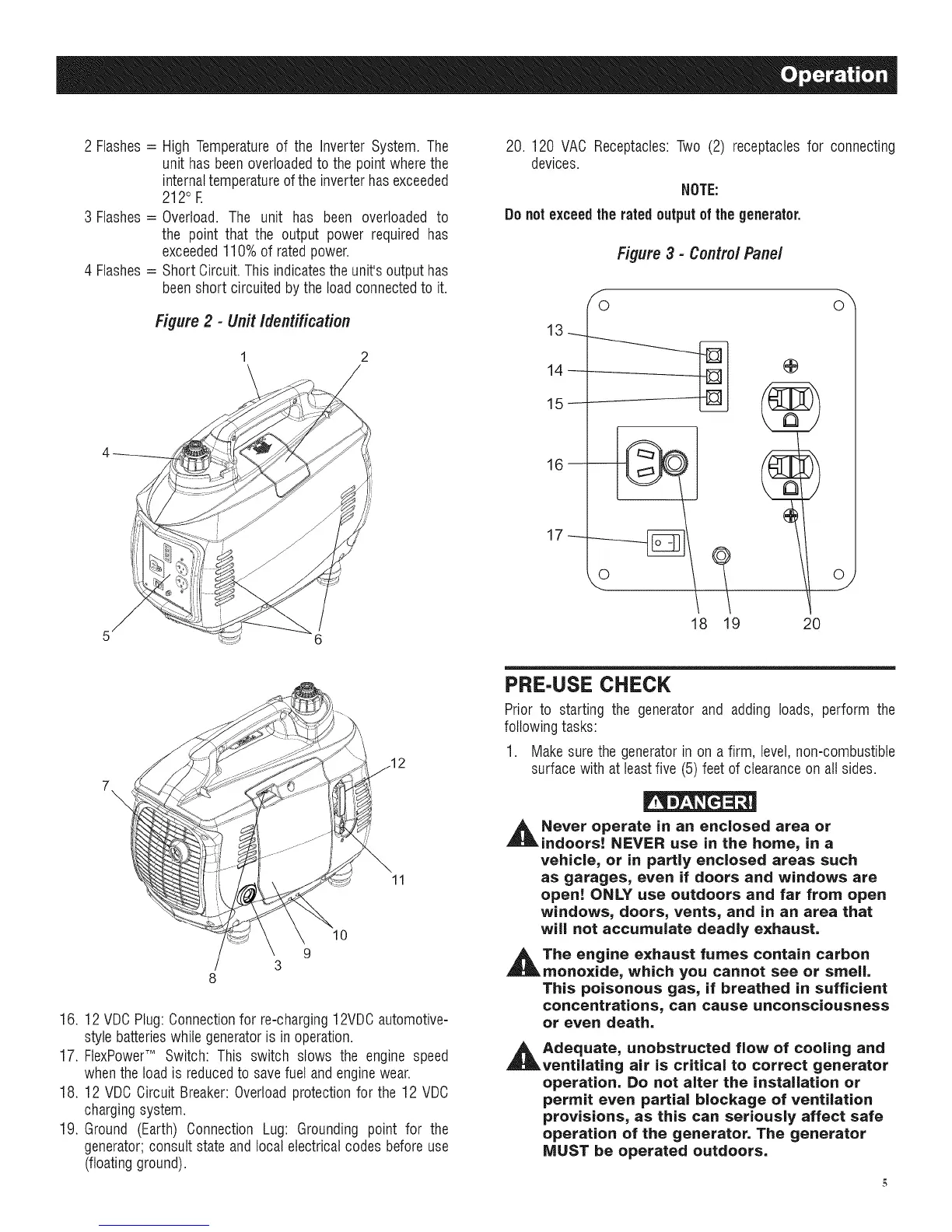

2Flashes= High Temperatureof the Inverter System. The
unit has beenoverloadedto the point where the
internaltemperatureof the inverterhasexceeded
212°E
3 Flashes--Overload. The unit has been overloaded to
the point that the output power required has
exceeded110%of ratedpower.
4 Flashes= Short Circuit.This indicatesthe unit'soutput has
beenshort circuited by the loadconnectedto it.
Figure 2 - Unit Identification
1 2
20. 120 VAC Receptacles:Two (2) receptaclesfor connecting
devices.
NOTE:
Donot exceedthe ratedoutputof the generator.
Figure3 - ControlPanel
13_
14--
15--
16--
17--
Fo
@
o
18 19 20
7\
11
10
9
3
8
16. 12 VDCPlug: Connectionfor re-charging 12VDCautomotive-
style batterieswhile generatoris in operation.
17. FlexPowerTM Switch: This switch slows the engine speed
whenthe loadis reducedto savefueland enginewear.
18. 12 VDC Circuit Breaker:Overloadprotectionfor the 12 VDC
chargingsystem.
19. Ground (Earth) Connection Lug: Grounding point for the
generator;consult state and local electrical codes before use
(floating ground).
PRE-USE CHECK
Prior to starting the generatorand adding loads, perform the
followingtasks:
1. Make sure the generatorin on a firm, level,non-combustible
surfacewith at leastfive (5) feet of clearanceon all sides.
Never operate in an enclosed area or
indoors! NEVER use in the home, in a
vehicle, or in partly enclosed areas such
as garages, even if doors and windows are
open! ONLY use outdoors and far from open
windows, doors, vents, and in an area that
will net accumulate deadly exhaust.
The engine exhaust fumes contain carbon
monoxide, which you cannot see or smell.
This poisonous gas, if breathed in sufficient
concentrations, can cause unconsciousness
or even death.
Adequate, unobstructed flow of cooling and
ventilating air is critical to correct generator
operation. Do net alter the installation or
permit even partial blockage of ventilation
provisions, as this can seriously affect safe
operation of the generator. The generator
MUST be operated outdoors.
