16 Owner’s Manual for MLT6SMD Light Tower
Place Trailer Tongue in Storage Position
1. Verify unit is on a level surface and wheels are
blocked.
2. See Figure 2-6. Extend jack (A) enough to allow
minimum effort to pivot trailer tongue into storage
position.

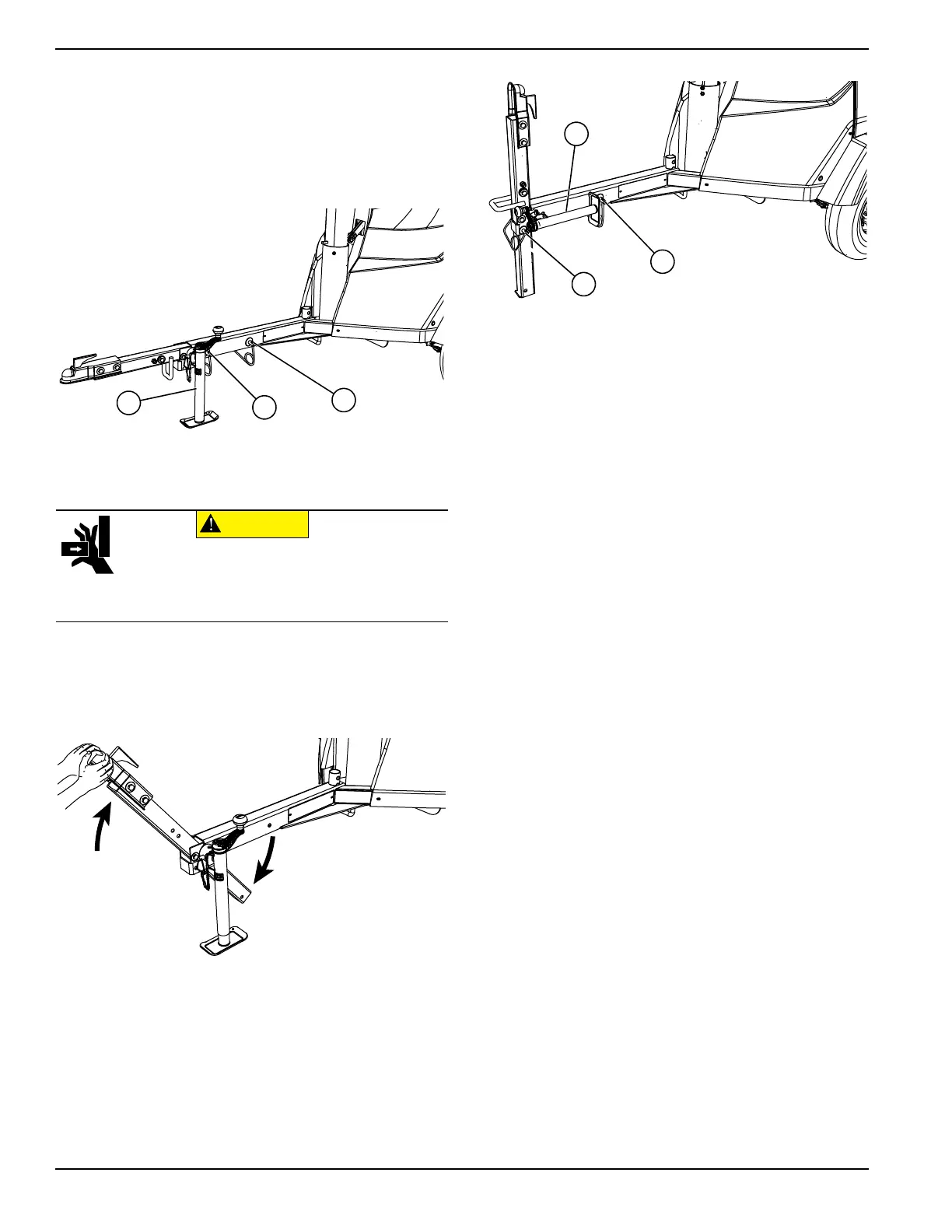

Figure 2-6. Extend Jack and Remove Pins
3. Remove pins (B) and (C) from trailer tongue.
4. See Figure 2-7. Pivot trailer tongue into storage
position.
NOTE: Varying levels of effort may be required
depending on terrain.
Figure 2-7. Pivot Trailer Tongue Into Storage Position
5. See Figure 2-8. Install pins (B) and (C) at locations
shown to secure trailer tongue in storage position.
Figure 2-8. Install Pins and Rotate Jack
6. Remove clevis and remove jack (A) from tongue
weldment.
7. Completely retract jack.
8. Rotate jack 90° counterclockwise, place jack on
tongue weldment, and install clevis to secure jack
parallel to ground.
003593
A
B
C
CAUTION
(000313)
Pinching and crushing hazard. To avoid
possible injury, keep fingers away from pivot
point when folding or unfolding trailer tongue.
003520
003591
A
B
C
