Operator Screens
See Figure 2-6. The operator screens display the most
relevant and critical information an operator will need to
correctly configure and use the unit. From these six
screens, the operator can access information necessary
to operate the unit under normal conditions.

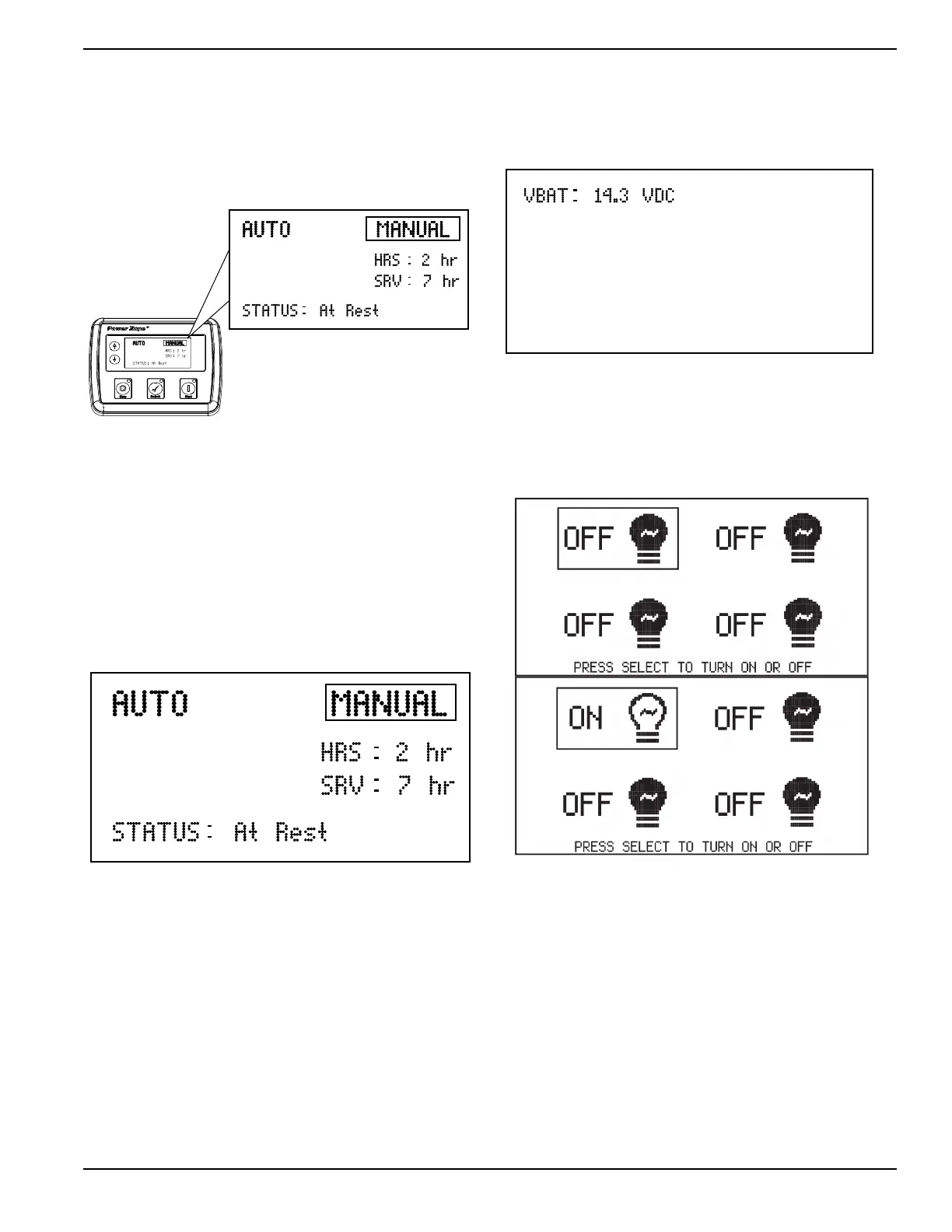

Figure 2-6. Operator Screens Location
Home Screen
See Figure 2-7. Default screen of the controller and
displays after the controller is powered up and the unit
management software is loaded. Displays the controller
mode, total operating hours, hours left until the next
service interval, engine operating status, and engine rpm.
If the unit is in Auto mode, the Home screen may also
display whether the scheduler or “dusk to dawn” are
enabled.
Figure 2-7. Home Screen
Battery Voltage Screen
See Figure 2-8. Displays the engine battery voltage. A
normal reading is 12–14V on 12 volt systems (with the
engine running).
Figure 2-8. Battery Voltage Screen
Lights Screen
See Figure 2-9. Enables the operator to turn the lights on
and off. Refer to Light Operation for more information.
Figure 2-9. Lights Screen
