Operation and Troubleshooting
10 Installation and User’s Manual for Mobile Link
•See Figure 3-7. For PowerPact models,
the accessory port is located under the
Controller, and visible through the
battery door after the plate is removed.

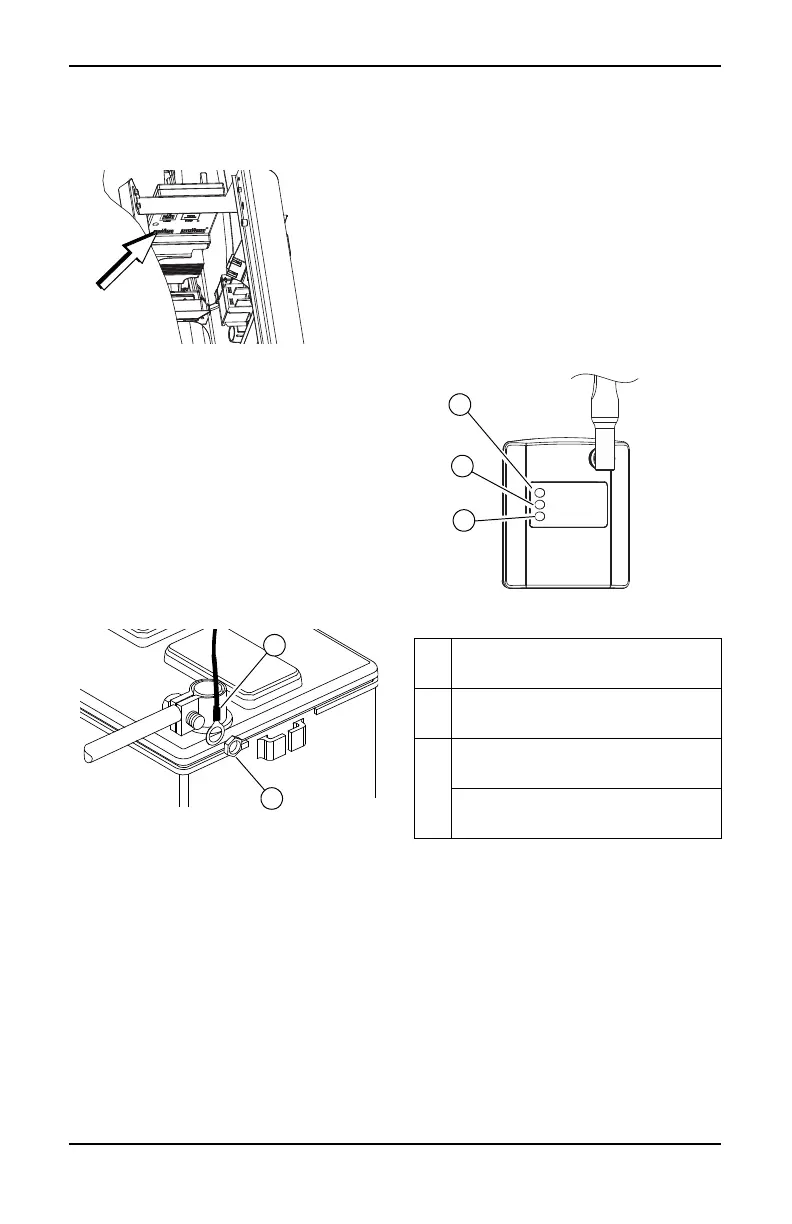

Figure 3-7. Accessory Port (PowerPact)
NOTE: If there is a decal labeled “Port 1” or
“Accessory Prt 1,” remove decal to locate
connector.
19. Install eight pin connector harness into
open socket on controller.
NOTE: The connector will only fit one way. DO
NOT force.
20. See Figure 3-8. Loosen and remove nuts
(A) from both positive (+) and negative (–)
terminal screws on battery cables. Slide
harness power wires (B) over terminal
screws and replace nuts. Tighten securely.
Figure 3-8. Attach Harness Power Wires
NOTE: The harness power wires consist of a
black negative (–) wire and a fused red
positive (+) wire.
21. Install end panel, controller, or sheet metal
controller cover. Install and tighten
retaining fasteners.
22. Verify generator is OFF.
23. Install generator controller fuse.
24. Install T1 fuse into transfer switch using an
appropriate fuse puller.
25. Turn main breaker in the home electrical
panel to ON. On generator control panel,
follow installation wizard and validate
correct date, time, etc.
26. Place generator in AUTO.
27. Turn utility disconnect switch OFF to
simulate a power outage. Generator
should turn ON. Allow to run for
approximately 30 seconds, then turn utility
disconnect switch back to ON or CLOSED
to restore utility service. Transfer switch
will transfer back to utility. Generator will
cool down and then shut down.
28. Verify Mobile Link cellular unit middle LED
is illuminated and bottom LED is
illuminated or flashing at this time.
NOTE: Top LED will not illuminate until
registration/activation process is complete.
Figure 3-9. Mobile Link Cellular LEDs
A LED will illuminate when unit is
registered.
B LED will flash if there is a poor
connection.
C LED will be off if there is no network
connection
LED will flash if the server connection is
pending or down.
