Generac Power Systems PowerPact 7.5 kW

Unpacking and Inspection
8 Installation Guidelines for 60 Hz PowerPact™

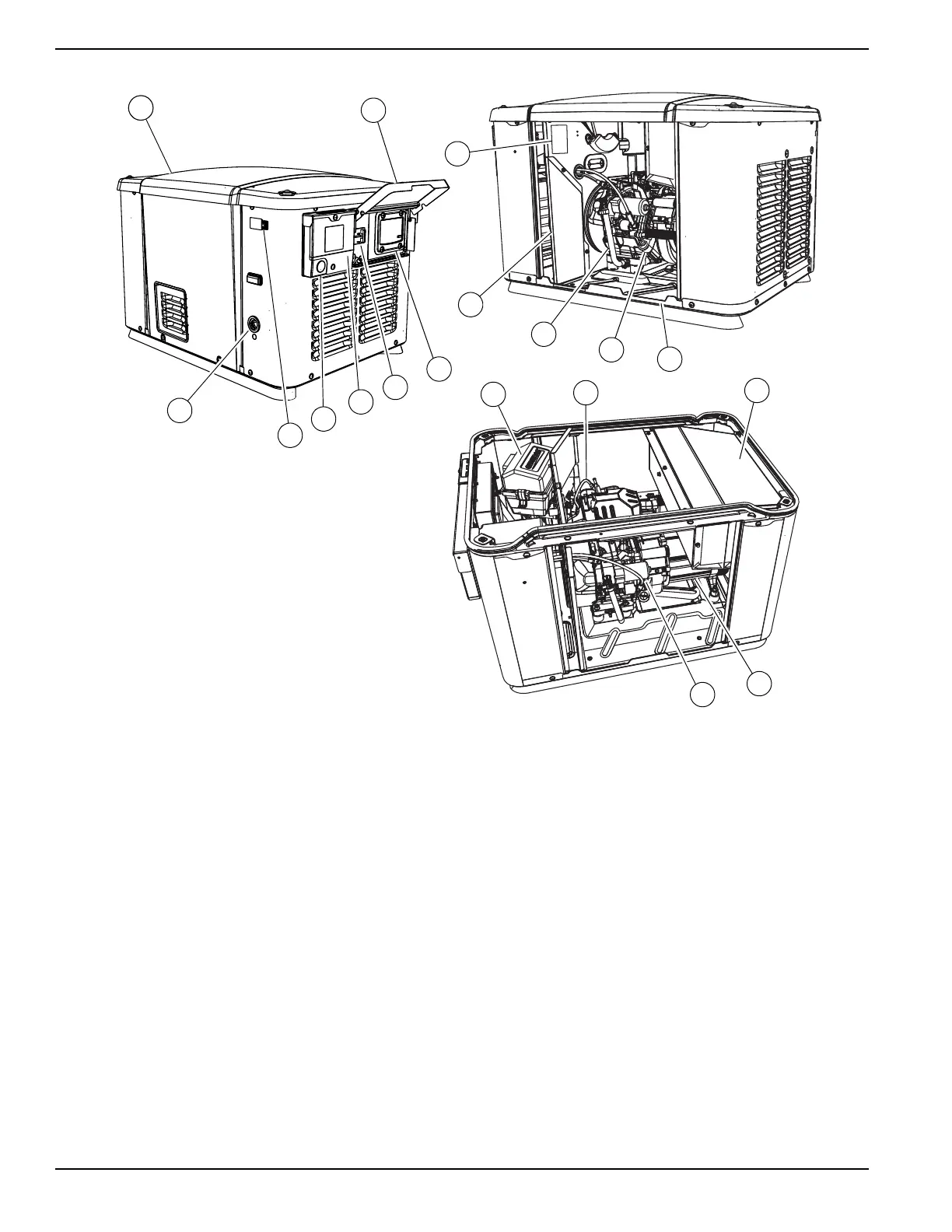

Figure 2-2. Features and Components
A. Top Lid G. Auxiliary Engine Shutdown
Switch
N. Front Panel (not shown)
B. Controller Lid H. Fuel Connection Hole O. Air Box
C. Control Panel J. Data Label P. Spark Plug
D. Circuit Breaker K. Battery Access Panel Q. Exhaust Enclosure
E. Customer Connection Box L. Oil Drain Hose R. Alternator
F. Main AC/Control Wiring Hole
for 3/4 in. Conduit
M. Oil Fill / Dipstick S. Starter Motor
005568
A
B
H
G
E
C
A
J
K
L
M
N
O
P
Q
R
S
D
F
