Electrical Connections
28 Installation Guidelines for 60 Hz PowerPact™

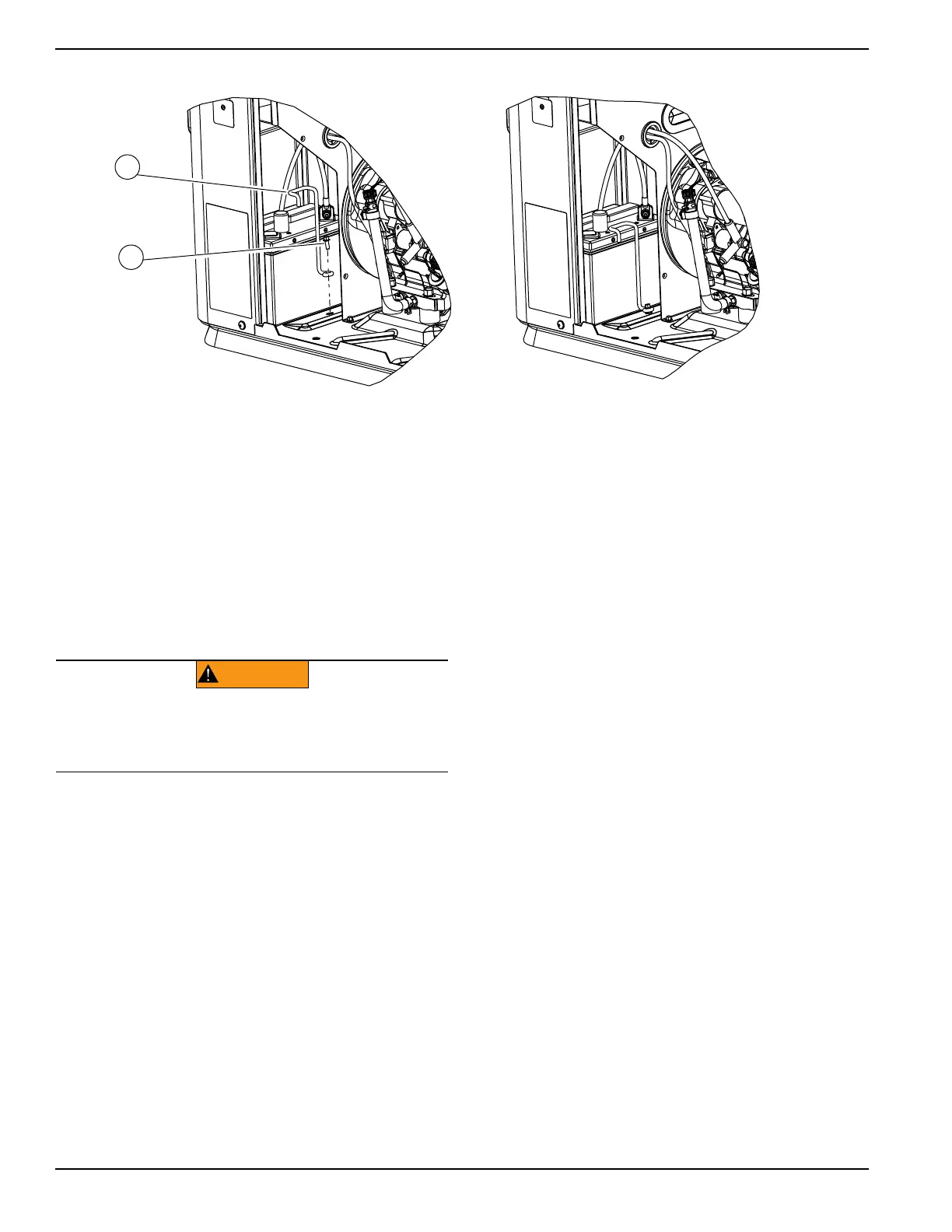

Figure 6-4. Battery Installation
8. Install the 7.5A fuse in the generator control panel.
9. Assemble the battery access panel with the two
hex head screws and tighten securely.
10. Assemble the front door by hooking it to the base
and aligning the slots to the hooks on the top of the
enclosure.
11. Assemble the top lid with the 4 hex socket screws
and secure it in place.
Battery Disposal
Always recycle batteries in accordance with local laws
and regulations. Contact your local solid waste collection
site or recycling facility to obtain information on local
recycling processes. For more information on battery
recycling, visit the Battery Council International website
at: http://batterycouncil.org
WARNING
Environmental Hazard. Always recycle batteries at an
official recycling center in accordance with all local
laws and regulations. Failure to do so could result in
environmental damage, death or serious injury.
(000228)
