Diagrams
Installation Guidelines for 60 Hz PowerPact™ 43

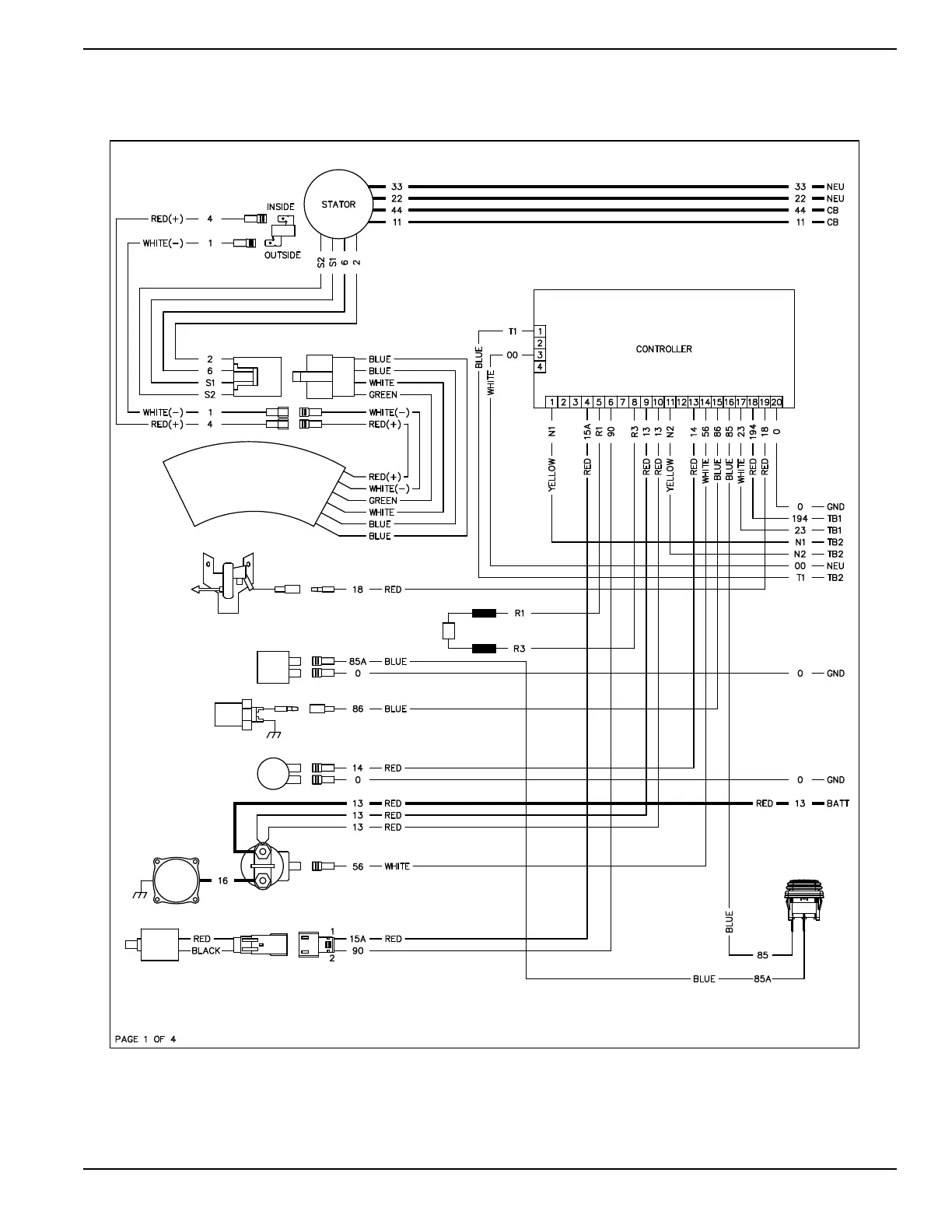

Wiring Diagram 10000021282-A, page 1 of 4
PAGE 1 OF 4
GROUP G
WIRING - DIAGRAM
7.5KW AC POWER PACT 60HZ W/ AUX
DRAWING #: 10000021282
REVISION: A
09/08/17
CS
HOT
SM
SC
FS
LOL
MAG
IM
SP
AVR
1
2
R
BA
J4
J5
AS
