Installation Guidelines for 60 Hz PowerPact™ 41
Section 11: Diagrams

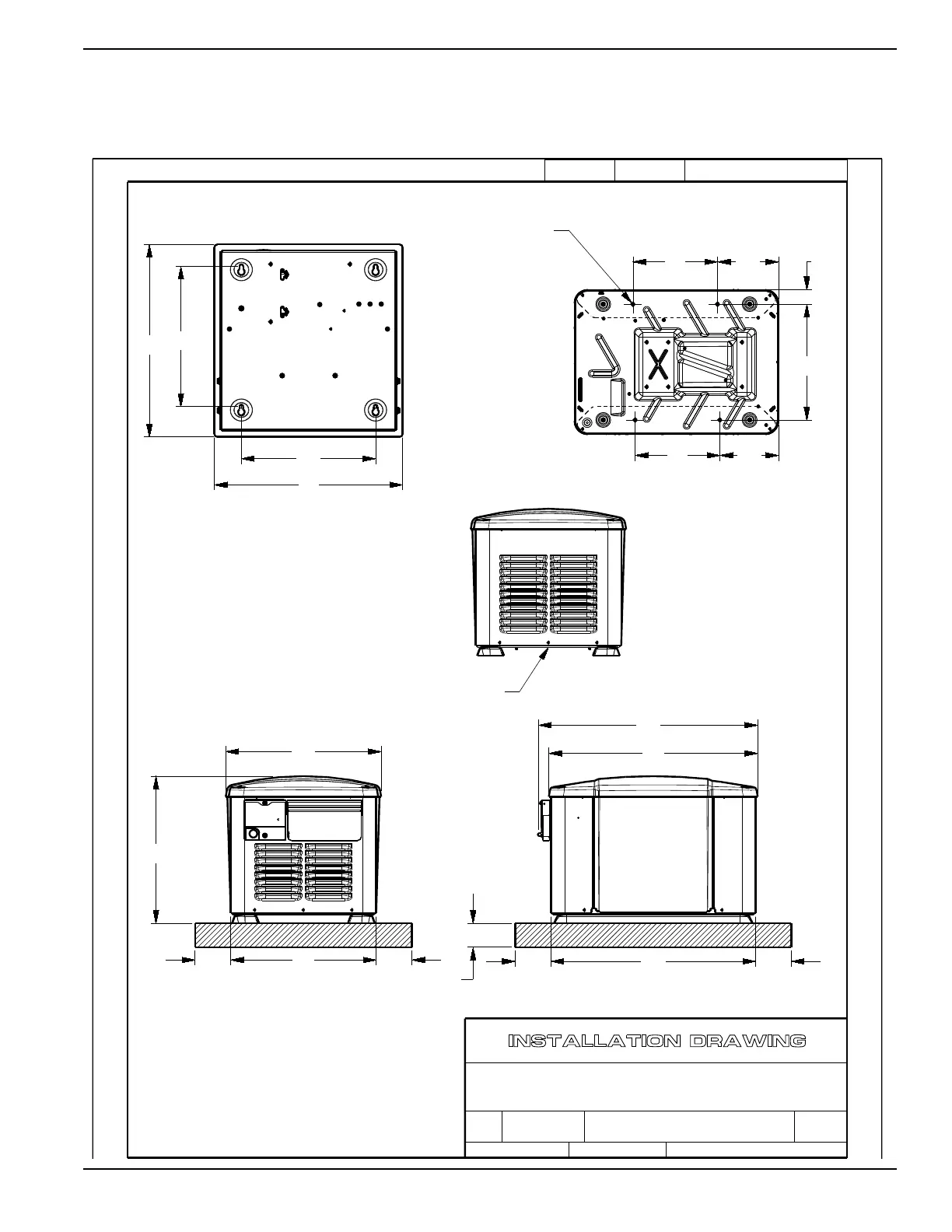

Installation Drawing 10000022108-A, page 1 of 2
642.2
[25.3]
679.6
[26.8]
894.8
[35.2]
636
[25.0]
913.4
[36.0]
370
[14.6]
506.1
[19.9]
370
[14.6]
256.4
[10.1]
266.4
[10.5]
63.5
[2.5]
956.4
[37.7]
279.4
[11.0]
392
[15.4]
292.1
[11.5]
400.6
[15.8]
102
[4.0]
PEA GRAVEL MINIMUM
152.4
[6.0]
152.4
[6.0]
152.4
[6.0]
152.4
[6.0]
TITLE
INSTALLATION DRAWING
PPACT W/ AUX SW
SIZE CAGE NO DWG NO
10000022108
REV
A
N/A
A
SCALE
NTS
WT-KG N/A SHEET
1 of 2
SH
1/2
REV
A
WINDCHILL VERSION
A.7
LEFT SIDE VIEW
FRONT VIEW
HOLE LOCATIONS FOR
OPTIONAL MOUNTING TO
A CONCRETE PAD
5/16 DIA MASONRY ANCHOR
BOLTS RECOMMENDED
(DO NOT REMOVE MOUNTING FEET
DURING CONCRETE PAD INSTALLATION)
CLEAR FROM MOUNTING FEET
LIFT UNIIT BY CENTER
TRANSFER SWITCH
(IF SUPPLIED)
ALL DIMENSIONS IN:
MILLIMETERS [INCHES]
