Generac Power Systems PowerPact 7.5 kW Installation Guidelines

Diagrams
42 Installation Guidelines for 60 Hz PowerPact™

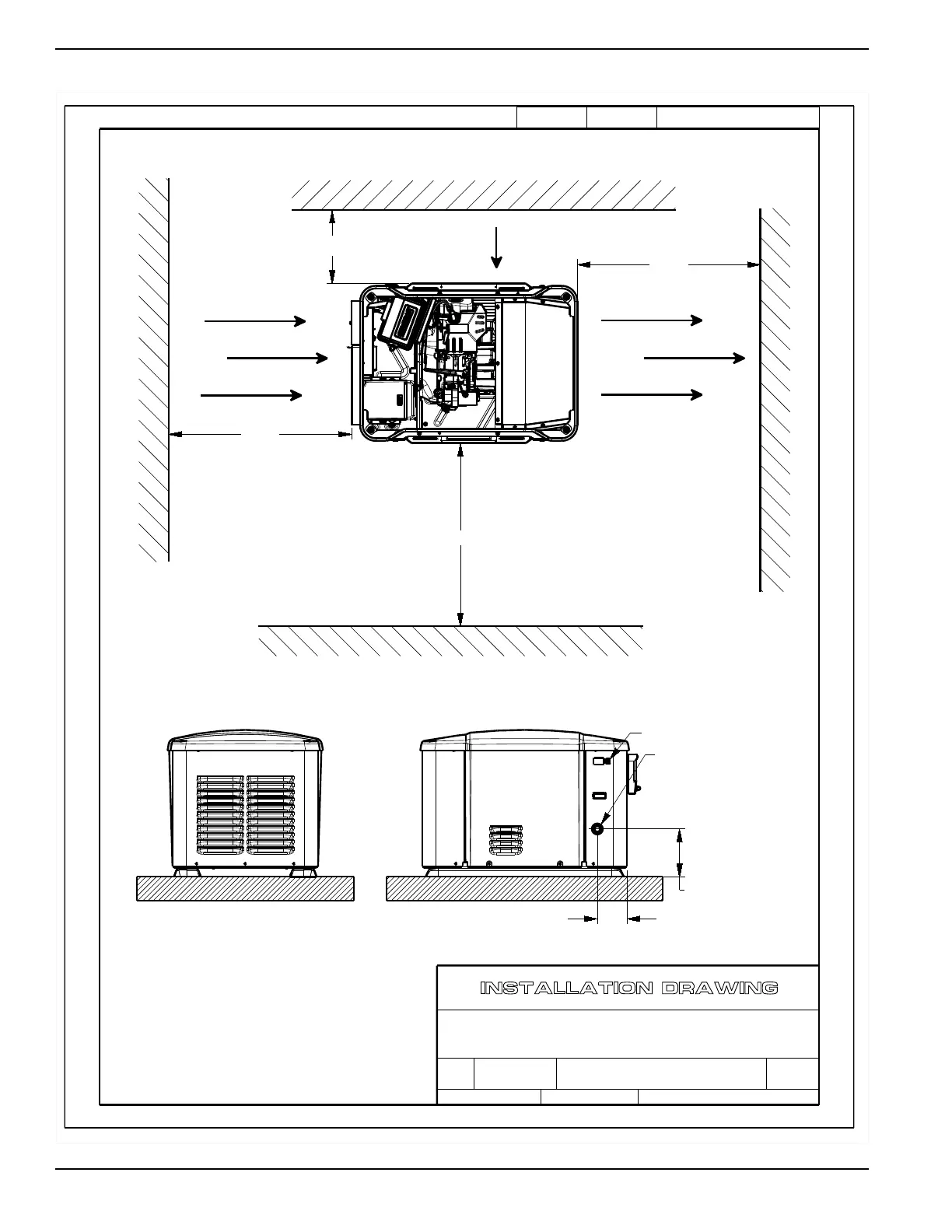

Installation Drawing 10000022108-A, page 2 of 2
209.2
[8.2]
130
[5.12]
457.2
[18.0]
MINIMUM OPEN AREA
914 [36.0]
MINIMUM OPEN AREA
914 [36.0]
MINIMUM OPEN AREA
914 [36.0]
MINIMUM OPEN AREA
TITLE
INSTALLATION DRAWING
PPACT W/ AUX SW
SIZE CAGE NO DWG NO
10000022108
REV
A
N/A
A
SCALE
NTS
WT-KG N/A SHEET
2 of 2
SH
2/2
REV
A
WINDCHILL VERSION
A.7
FUEL INLET (3/4" NPT)
RIGHT SIDE VIEW
REAR VIEW
AIR INLET
AIR OUTLET
AIR INLET
REQUIRED FUEL PRESSURE:
NATURAL GAS : 9-13mm HG
[5-7" WATER COLUMN]
LIQUID PROPANE (VAPOR) : 19-22mm HG
[10-12" WATER COLUMN]
AUXILIARY SHUTDOWN SWITCH & DECAL
ALL DIMENSIONS IN:
MILLIMETERS [INCHES]
