3.5 — Open Viewing Window
1. Rotate viewing window upward to access control panel.
2. To hold viewing window in the open position, remove rod
from clip at back of window and insert into hole in frame.
See Figure 3-5.
3.6 — Start and Run Engine
1. Pull up rubber flap covering fuse holder and verify installation of 7.5 amp fuse. See A of Figure 3-6.
2. Move the Main Circuit Breaker switch down to the OFF (Open) position. See B of Figure 3-6.
3. Press MANUAL on the control pad to start the engine. A blue LED illuminates to confirm that the system is in the
MANUAL mode. See C of Figure 3-6.
4. Allow the engine to run until it reaches normal operating temperature.
5. Press OFF on the control pad to stop the engine. A red LED illuminates to confirm that the system is in the OFF
mode.

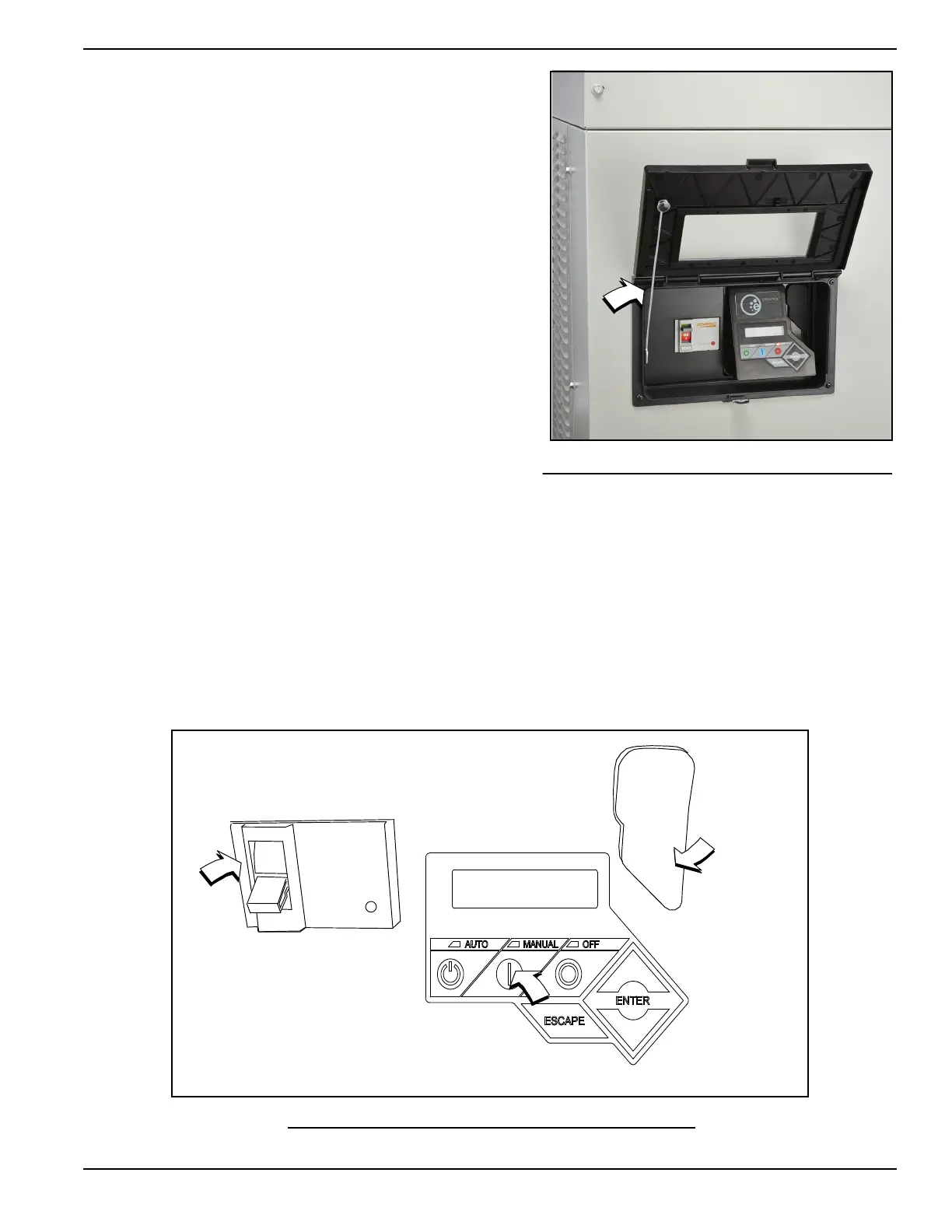

Figure 3-6. Generator Control Panel
Figure 3-5. Viewing Window
o
OFF
PUSH TO TRIP
7.5 Amp Fuse
and USB Port
Main Circuit Breaker
C
B
A
LCD Screen
Control Pad
