Your vehicle at a glance
1

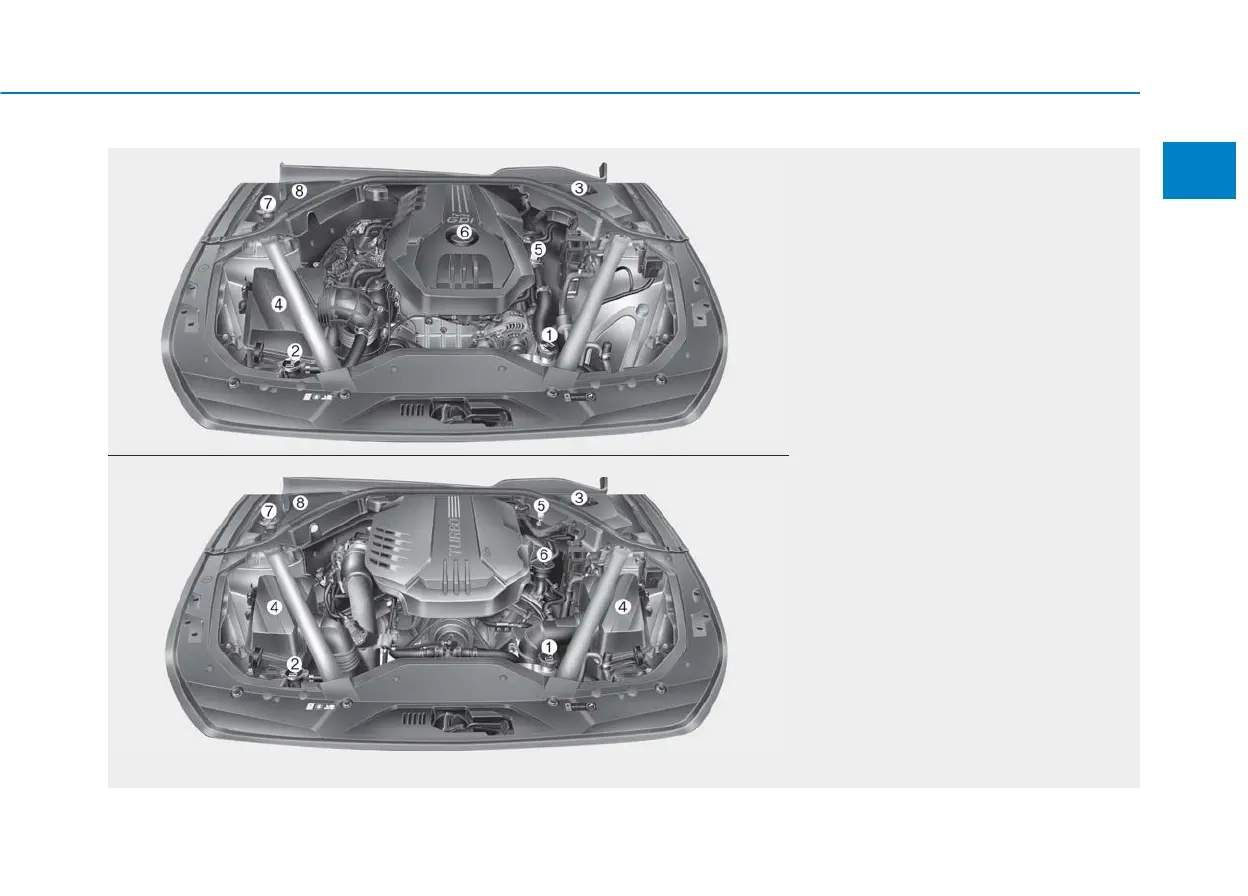

EENNGGIINNEE CCOOMMPPAARRTTMMEENNTT
1. Engine coolant reservoir...................7-19
2. Radiator cap .....................................7-21
3. Brake/Clutch fluid reservoir...............7-23
4. Air cleaner.........................................7-25
5. Engine oil dipstick.............................7-17
6. Engine oil filler cap ...........................7-17
7. Windshield washer fluid reservoir.....7-24
8. Fuse box...........................................7-50
❈ The battery is in the trunk.
OIK077001/OIK017007
■■
Theta 2.0 T-GDI
The actual engine compartment in the vehicle may differ from the illustration.
■■
Lambda 3.3 T-GDI
