Turn signal lamp and back-up lamp

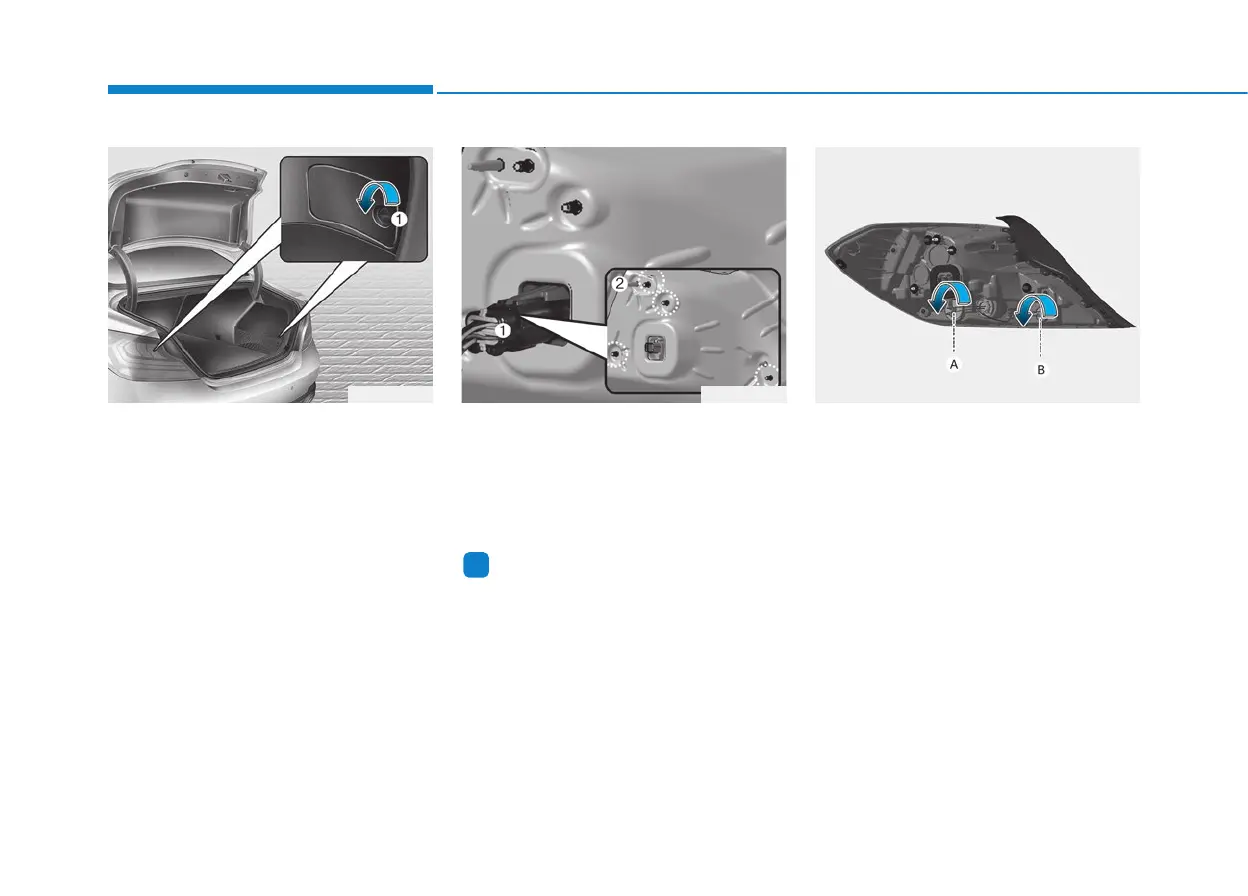

1. Turn the engine off.
2. Open the trunk.
3. Remove the service cover by turn-
ing the lock (1) counterclockwise.
4. Remove the connector (1).
5. Remove the 4 nuts (2).
6. Remove the rear combination
lamp assembly from the body of
the vehicle.
Information
When removing the nut, be careful
not to drop it on the floor as it is
extremely difficult to find. Use a mag-
netic pick up tool to find the nut if nec-
essary.
7. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
8. - Turn signal lamp (A)
Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
- Back-up lamp (B)
Remove the bulb by pulling it
straight out.
