Genesis Instant - B) Power Circuit - 230 V System

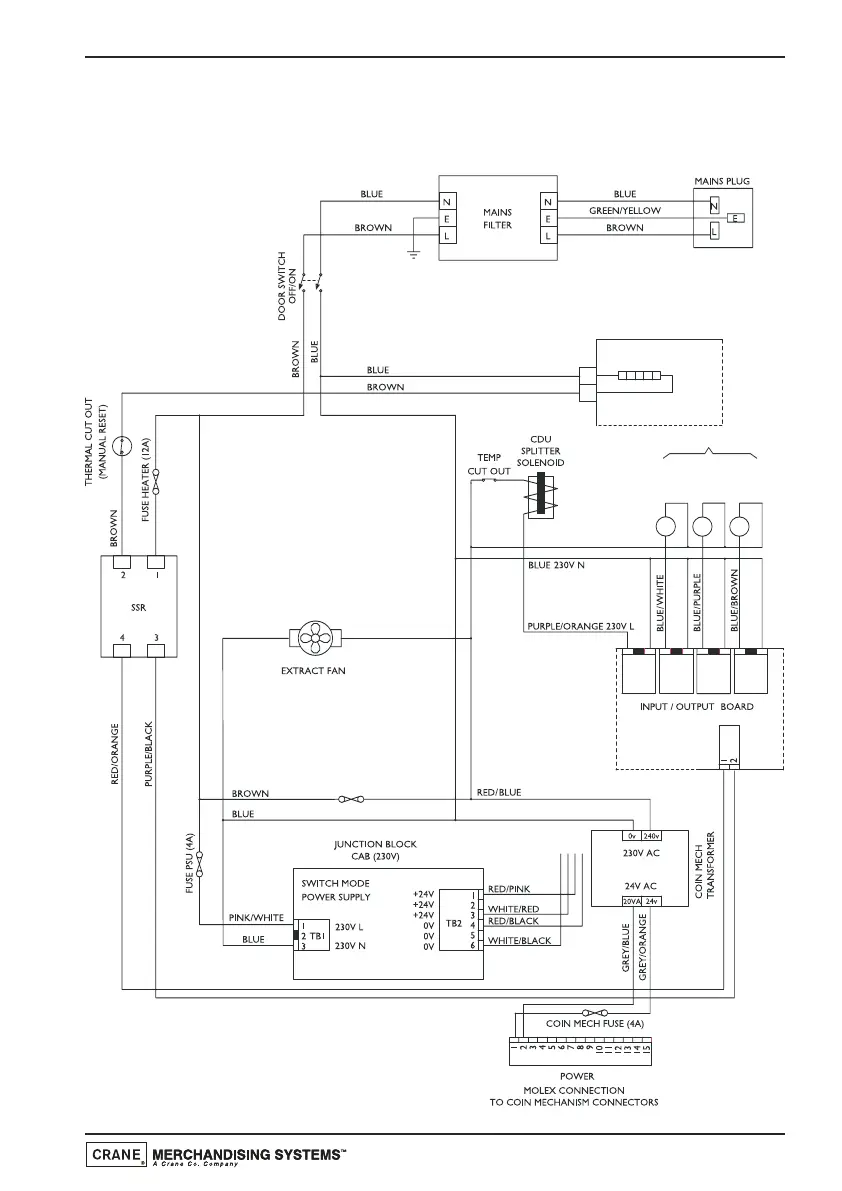

10.15 (b) Power Circuit - 230V System
Post serial numbers from starting 1634.....
J14
HEATER TANK/
PRESSURE BOILER
ELEMENT
AUX FUSE (4A)
J15
1 2 3
J17
1 2 3
J19
1 2 3
J18
1 2 3
M
P
P
GRINDER MOTOR
PUMP 1 PUMP 2
ONLY ON B2C MACHINES
