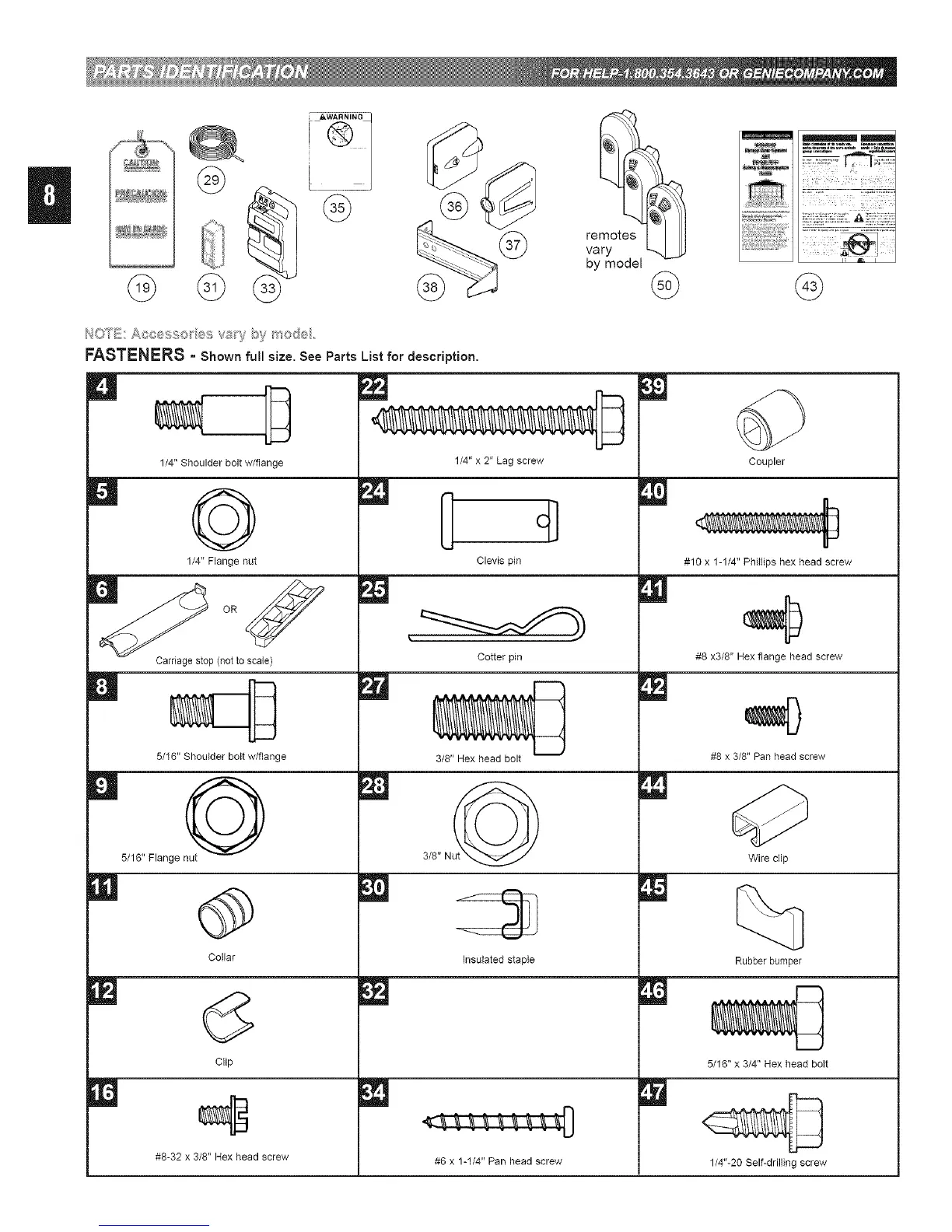

FASTENERS = Shown full size. See Parts List for description.

.J l

q--

1/4" Shoulder bolt w/flange

1/4" x 2" Lag screw Coupler

1/4" Flange nut

Carriage stop (net to scale)

8/16" Shoulder bolt w/flange

g (8)

5/16" Flange nut

Collar

Clevis pin

Cotter pin

,21

3/8" Hex head bolt

3/8" Nut_

Insulated staple

#10 x 1-1/4" PhilHps hex head screw

#8 x3/8" Hex flange head screw

#8 x 3/8" Pan head screw

Wire clip

Rubber bumper

Clip

NI Nt

5/16" x 3/4" Hex head bolt

#8-32 x 3/8" Hex head screw

#6 x 1-1/4" Pan head screw

1/4"-20 Self-drilling screw
