EZiSYSTEM, How to Use the Conductive Rod 49
4 How to Use the Conductive Rod
4.1 General Information
Description The Conductive Rod is a service tracer enabling small diameter non-conductive pipes or
ducts to be traced. It can be used in Line mode or Sonde mode.
4.2 Conductive Rod Overview

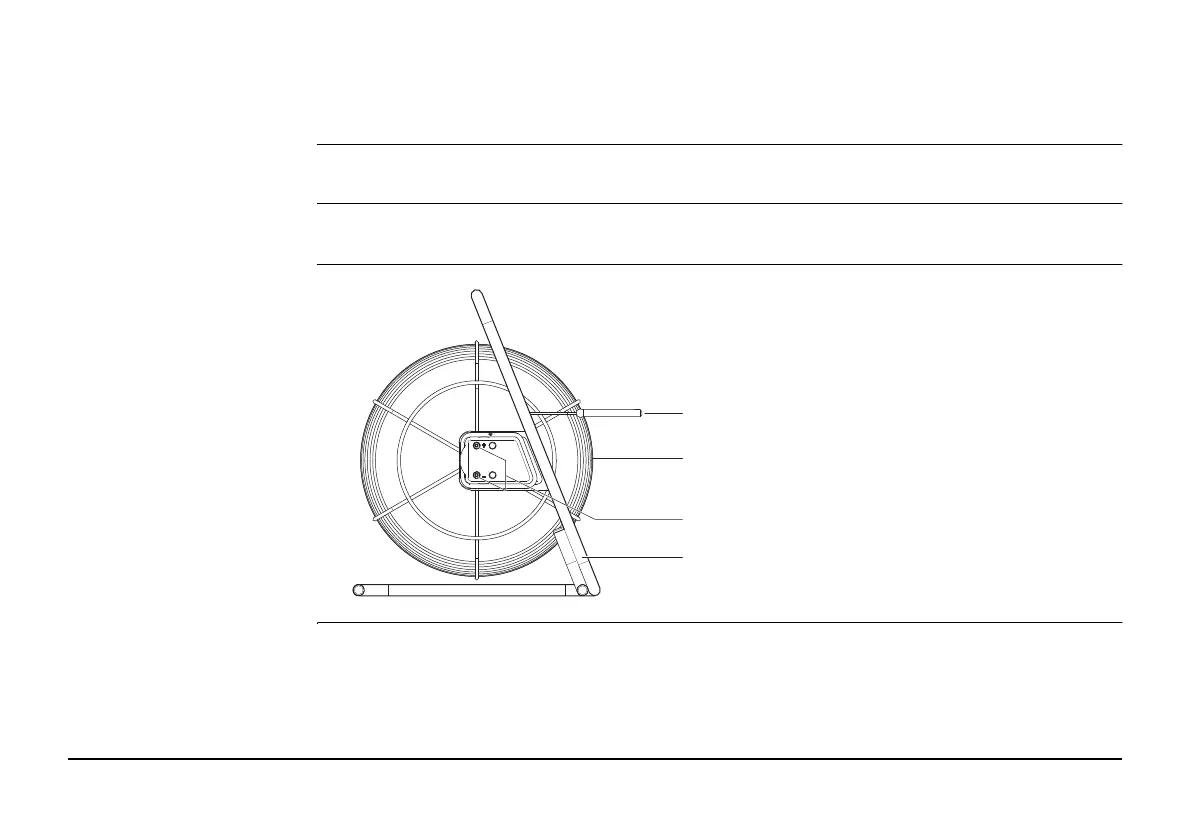

Conductive Rod main
parts
a) End of Coil: Sonde mode
Used to accurately pinpoint the end
point of the rod.
b) Rod: Line mode
Flexible, Glass Fibre sheathed, which
incorporates copper wires to conduct
the signal.
c) Connection Terminals
Used to connect to the Transmitter.
d) Frame
Houses the flexible rod. Can be used in
both vertical (shown) and horizontal
orientation.
a
b
c
d
