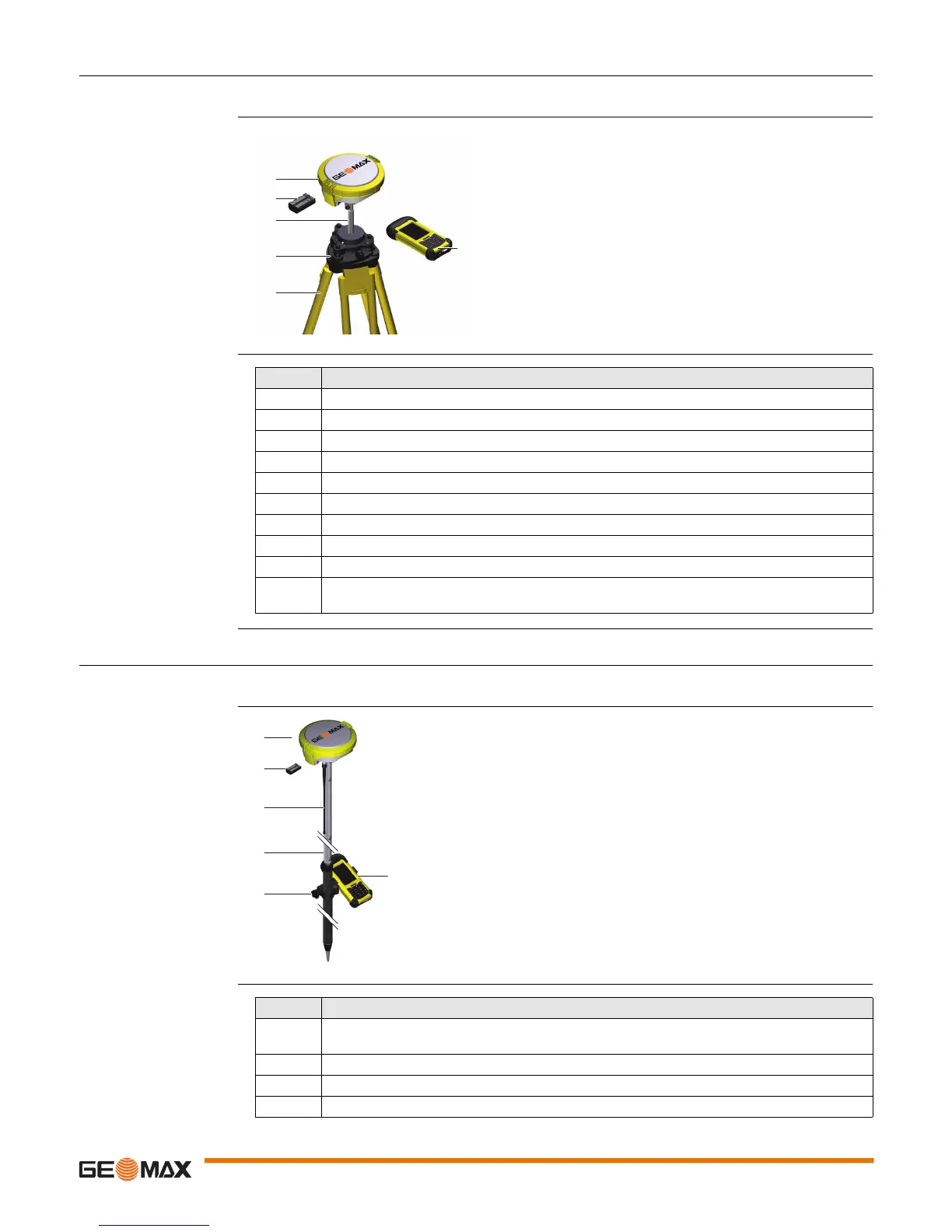

4.1.3 Setting up as a Post-Processing Base
Use The following equipment setup is used for static operations over markers.
Equipment setup -
Zenith15/25 Pro
Equipment setup step-
by-step
4.1.4 Setting Up as a Real-Time Rover
Use The following equipment setup is used for real-time rover.
Equipment setup -
Zenith15/25 Pro
Equipment setup step-
by-step
a) Zenith15/25 Pro instrument
b) ZBA201 battery
c) ZCA100 carrier
d) Tribrach
e) Tripod
f) Getac handheld
004578_002
a
b
c
d
e
f
Step Description
1. Set up the tripod.
2. Mount the tribrach on the tripod.
3. Ensure that the tribrach is over the marker.
4. Mount and level the carrier on the tribrach.
5. Insert the battery into the instrument.
6. Press the ON/OFF button on the instrument for 2 s to switch on the instrument.
7. Screw the instrument onto the carrier.
8. Check that the tribrach and carrier are still level.
9. Connect the handheld to the instrument through Bluetooth.
10. Measure the instrument height using the measuring tape. Refer to "2.6 The Mechanical Refer-
ence Plane, MRP" for information on the instrument height.
a) Zenith15/25 Pro instrument
b) ZBA201 battery
c) UHF antenna
d) ZPC200 pole
e) ZHR200 holder
f) Getac handheld
004579_002
a
b
c
d
e
f
Step Description
1. Attach the ZHR200 holder to the ZPC200 pole. Refer to "4.1.5 Fixing the handheld to a holder
and pole".
2. Clip the handheld into the holder and lock it by tighten the screw on the holder.
3. Turn on the handheld.
4. Insert the battery into the instrument.
