Zenith15/25 Pro | 12User Interface
3 User Interface

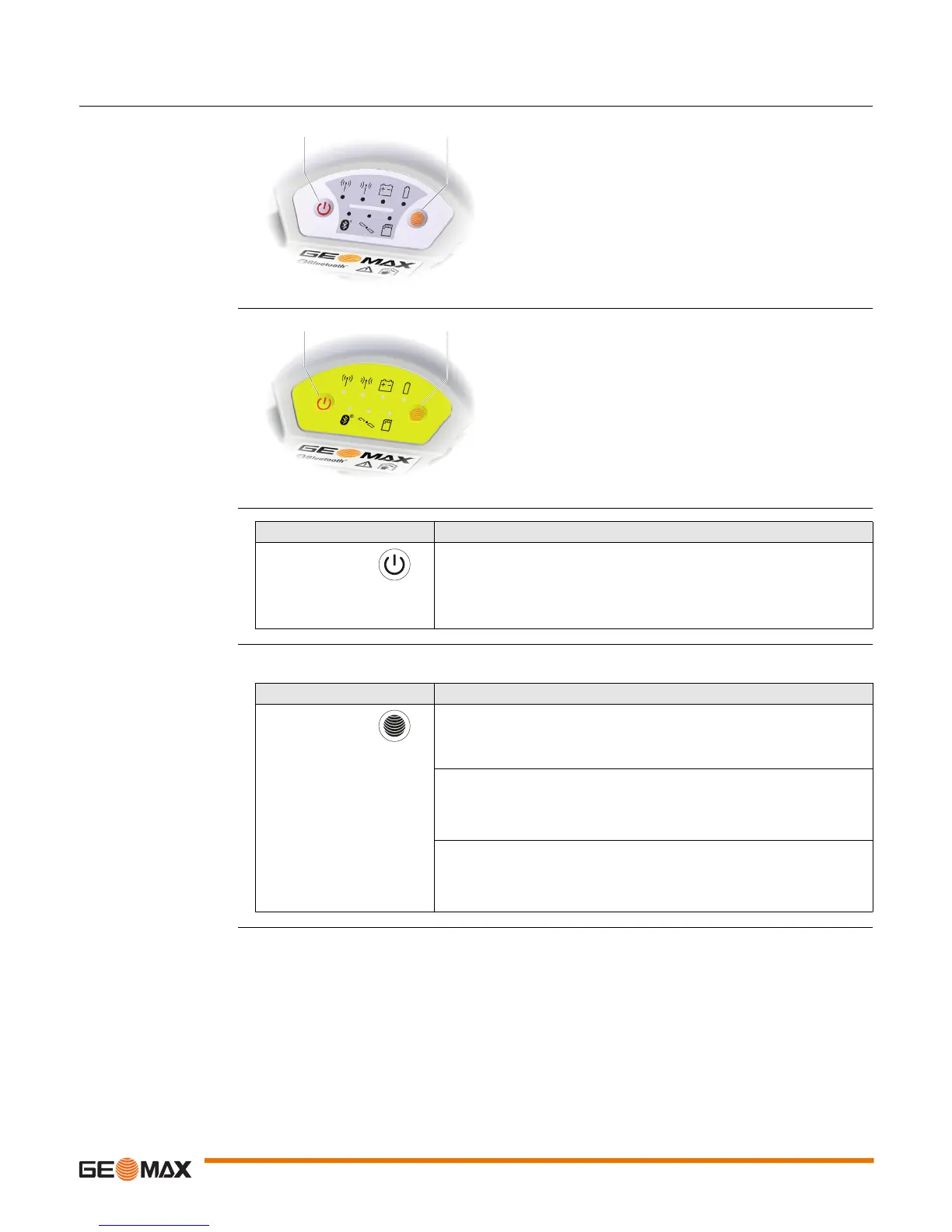

3.1 Keyboard
Zenith15: Using the
keyboard
Zenith25 Pro: Using the
keyboard
ON/OFF button
Function button
All functions described assume the Zenith15/25 Pro is already on.
a) ON/OFF button
b) Function button
0012575_001
ab
a) ON/OFF button
b) Function button
004574_001
ab
Button Function
ON/OFF If Zenith15/25 Pro is off:
Turns on Zenith15/25 Pro when held for 2 s.
While the Zenith15/25 Pro is booting the two Power LEDs flash.
If Zenith15/25 Pro is already on:
Turns off Zenith15/25 Pro when held for 2 s.
Button Function
Function Press and hold button for <1 s.
Switches the Zenith15/25 Pro between rover or base mode.
Press and hold button for 3 s.
Updates the base position coordinates when Zenith15/25 Pro is in base
mode. The RTK base LED flashes for 2 s. When no position is available, the
LED flashes red.
Press and hold button for 5 s.
Connects to the configured RTK base station or NTRIP server when the
Zenith15/25 Pro is in rover mode. The RTK rover LED flashes for 2 s. No
action if a rover mode is not configured.
