User Interface Zenith15/25 Pro | 13
Button combinations

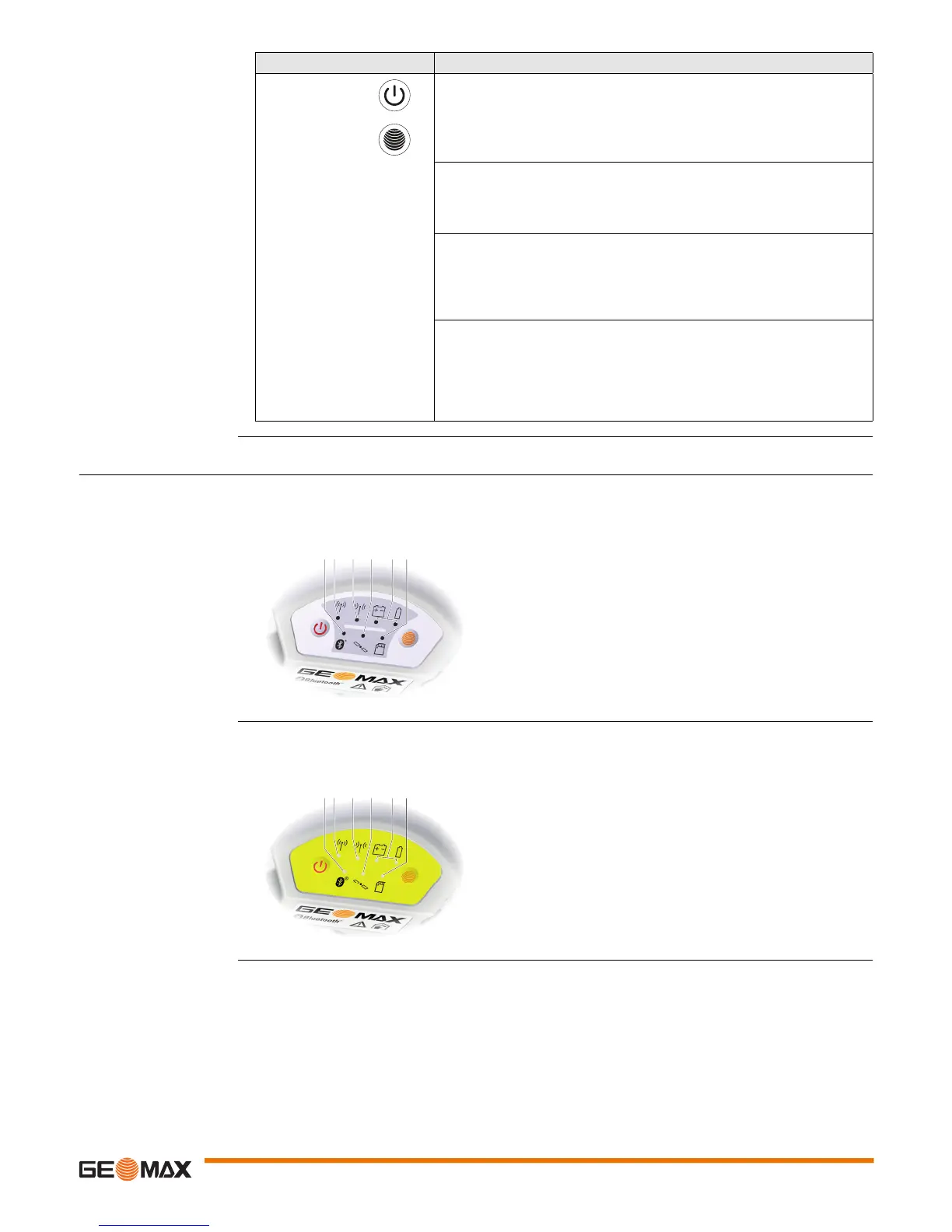

3.2 LED Indicators
Zenith15: LED indica-
tors
Description
The Zenith15 has Light Emitting Diode indicators. They indicate the basic instrument status.
Diagram
Zenith25 Pro: LED indi-
cators
Description
The Zenith25 Pro has Light Emitting Diode indicators. They indicate the basic instrument status.
Diagram
Button Function
ON/OFF Press and hold buttons for 1 s.
Function The current almanacs stored on the GNSS instrument are deleted and new
almanacs are downloaded. The Position LED flashes red three times.
Press and hold buttons for 5 s.
The Memory LED flashes red quickly three times. The microSD card of the
GNSS instrument is formatted. The Memory LED continues to flash red as
the SD card is formatted.
Press and hold buttons for 10 s.
The System RAM on the GNSS instrument is formatted. Settings of all
installed software will be deleted. The Storage, RTK Base and RTK Rover
LEDs flash red. The Position LED flashes yellow quickly three times. After
the formatting the System RAM, the GNSS instrument is turned off.
Press and hold buttons for 15 s.
The registry of the GNSS instrument is deleted. Windows CE and Bluetooth
communication settings will be reset to factory defaults. The Storage, RTK
Base and RTK Rover LEDs flash red. The Position LED flashes yellow
quickly three times. After deleting the registry, the GNSS instrument is
turned off.
a) Bluetooth LED
b) RTK Base LED
c) RTK Rover LED
d) Position LED
e) Power LEDs
f) Storage LED
ab c d e f
012728_0 01
a) Bluetooth LED
b) RTK Base LED
c) RTK Rover LED
d) Position LED
e) Power LEDs
f) Storage LED
004586_001
ab c d e f
