Applications ZTS600 | 105
3. Complete application pre-settings. Refer to "8 Applications - Getting
Started".
4. Select Arc.
Next step Define the reference arc.

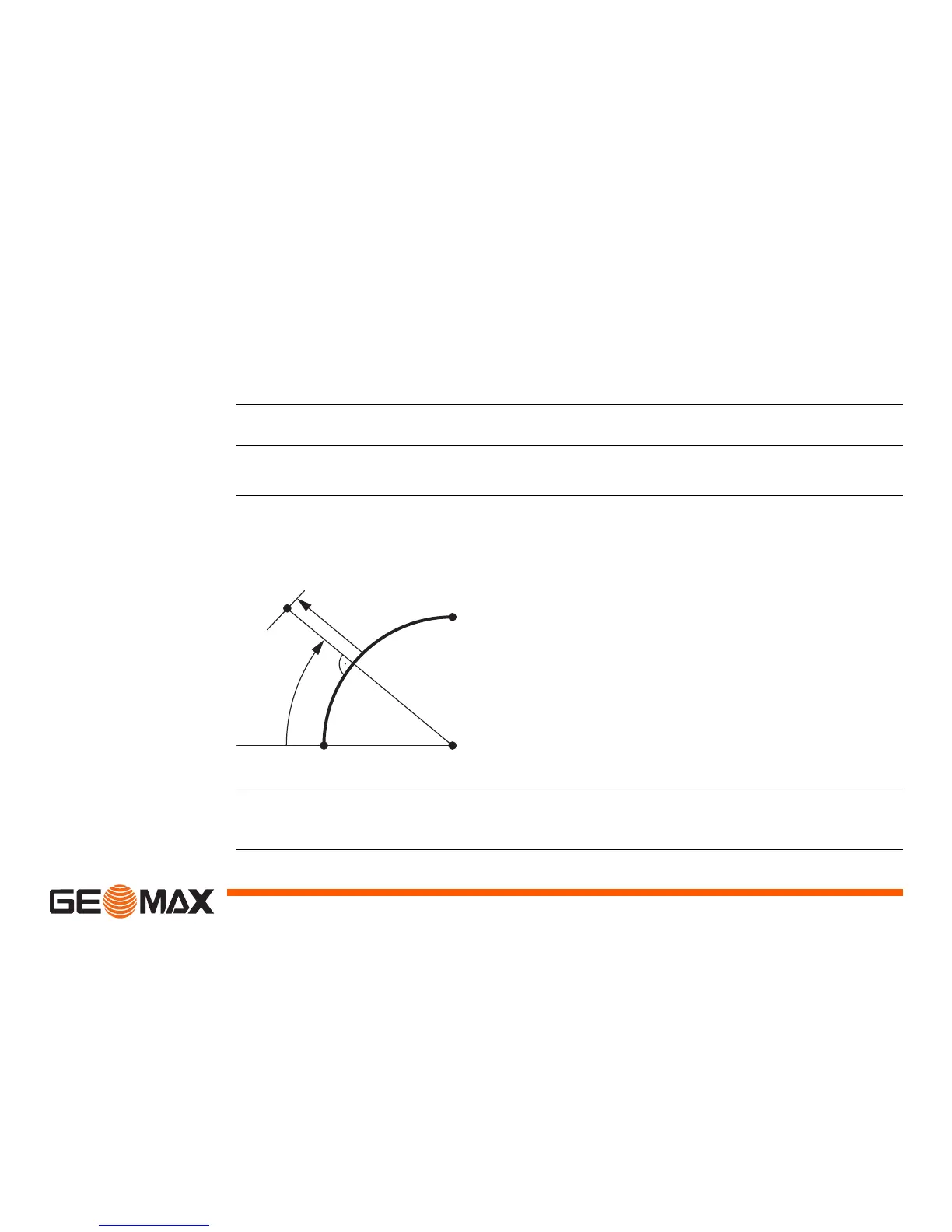

9.6.2 Defining the Reference Arc
Description The reference arc can be defined by a center point and start point, or a start
point, end point, and radius. All points can be either measured, manually
entered, or selected from the memory.
All arcs are defined in a clockwise direction and all calculations are made in two
dimensions.
SP Start point
EP End point
CP Center point
R Radius of arc
L Distance from start of arc, following
curve
Off Perpendicular distance from arc
CP
SP
R
L+
Off -
EP
P
