GeoVision GV-BX2400-0F User Manual

Accessing the Camera
20
20.1 Accessing Your Surveillance Images
Once installed, your GV-IPCAM H.264 is accessible on a network. Follow
these steps to access your surveillance images:
1. Start your web browser.
2. Enter the IP address or the domain name of the camera in the
Location/Address field of your browser.

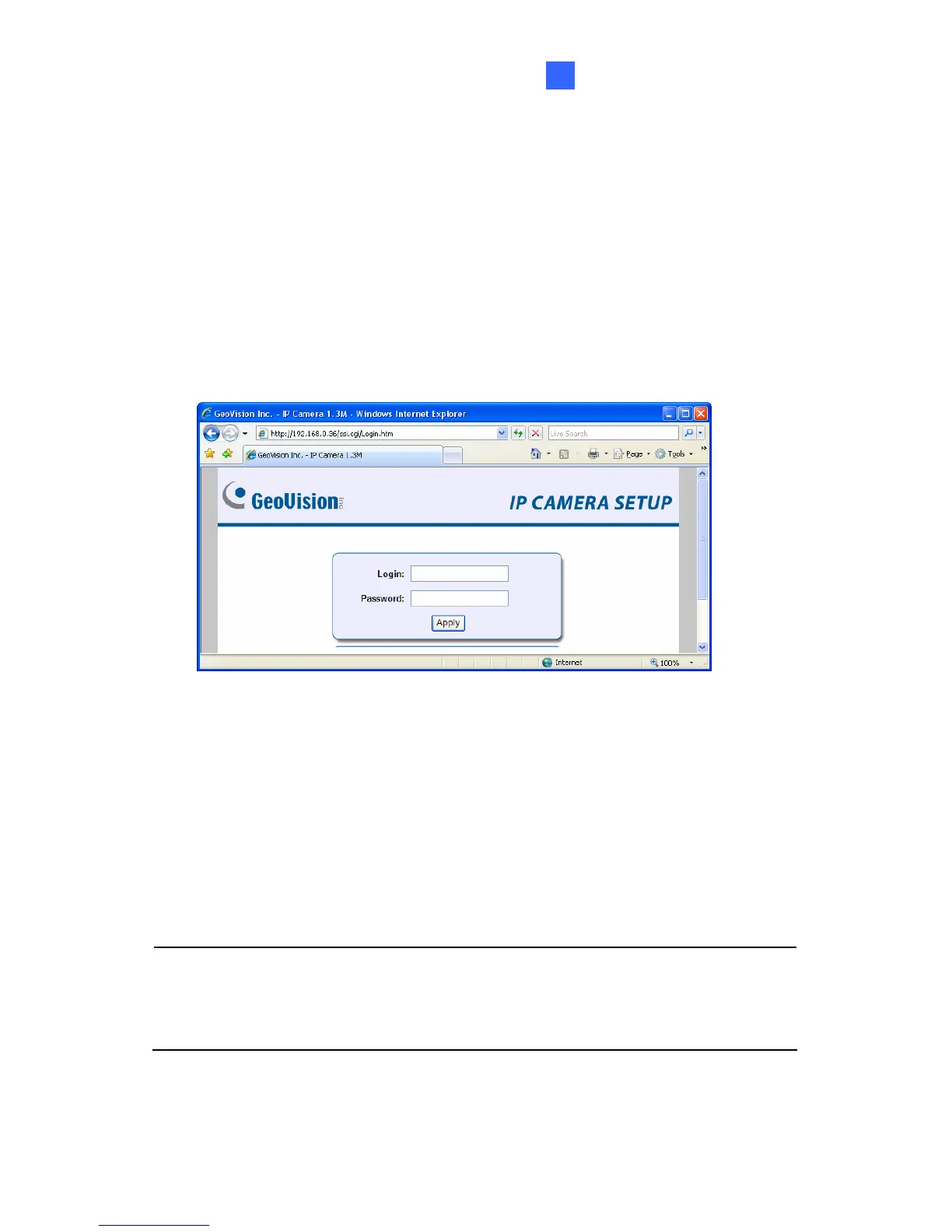

Figure 20-1
3. Enter the login name and password.
• The default login name and password for Administrator are
admin.
• The default login name and password for Guest are guest.
4. Click Apply. A video image, similar to the example on Figure 20-2, is
now displayed in your browser.
Note: To enable the updating of images in Internet Explorer, you must
set your browser to allow ActiveX Controls and perform a once-only
installation of GeoVision’s ActiveX component onto your computer.
271

GeoVision GV-BX2400-0F Specifications

General

Image Sensor	1/3" progressive scan CMOS
Sensor Type	CMOS
Lens Type	Fixed
Minimum Illumination (B/W with IR on)	0 Lux
Gain Control	Auto
Video Compression	H.264, MJPEG
Frame Rate	30 fps at 1920 x 1080
Network Interface	10/100 Ethernet
Operating Humidity	10% to 90% (non-condensing)
Ingress Protection	IP66
Day/Night	Yes
WDR	Yes
Picture Elements	1920 x 1080
Resolutions	1920 x 1080, 1280 x 720, 640 x 480
Focal Length	4mm
Shutter Speed	1/5 ~ 1/8000 sec
White Balance	Auto, Manual
S/N Ratio	50 dB
Audio Compression	G.711
Audio Output	Yes
Protocols	TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, ICMP, UPnP, SNMP, SMTP, NTP
Connectors	RJ-45
Power Supply	12V DC
Power	12V DC
Operating Temperature	-20°C ~ 50°C (-4°F ~ 122°F)
Weight	350 g
Effective Pixels	2.0 MP
Lens	4.0 mm
