12.6 Focus Adjustment
On initial installation, it is advised that you adjust the focus for image clarity.
Print out the diagram of radiating lines included on Software DVD and hang
up the diagram at the surveillance area. Use the Zoom In / Out and Focus
In / Out buttons on the PTZ control panel from the Web interface (No.4 and
5, Figure 12-15) and adjust the PTZ Camera until it displays clear radiating
lines as shown in picture on the left.

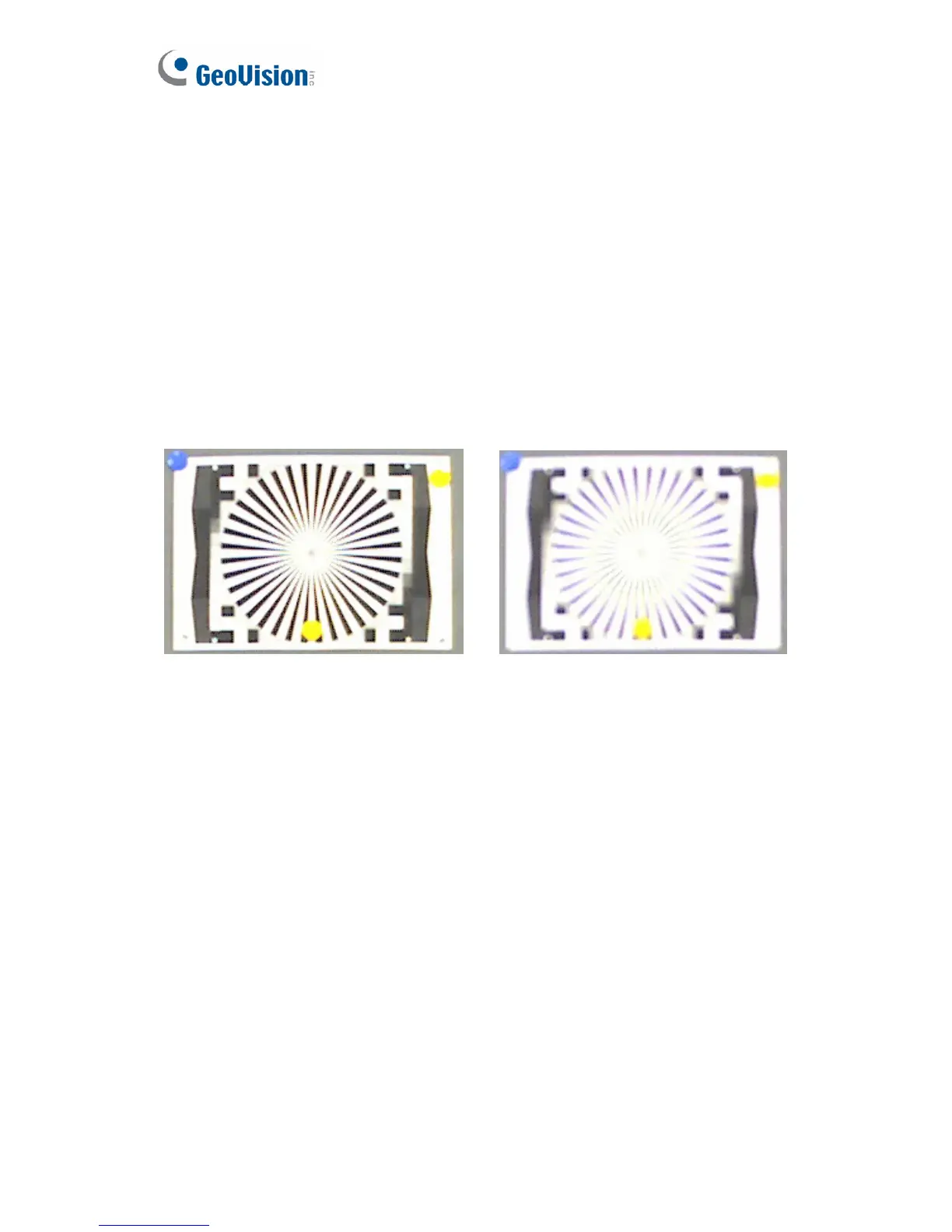

Good focus Poor focus
Figure 12-12
To access live view for the first time or to assign an IP address, see 19.1
Accessing the Live View.
148
