GeoVision GV-VS14 Quick Start Guide

8

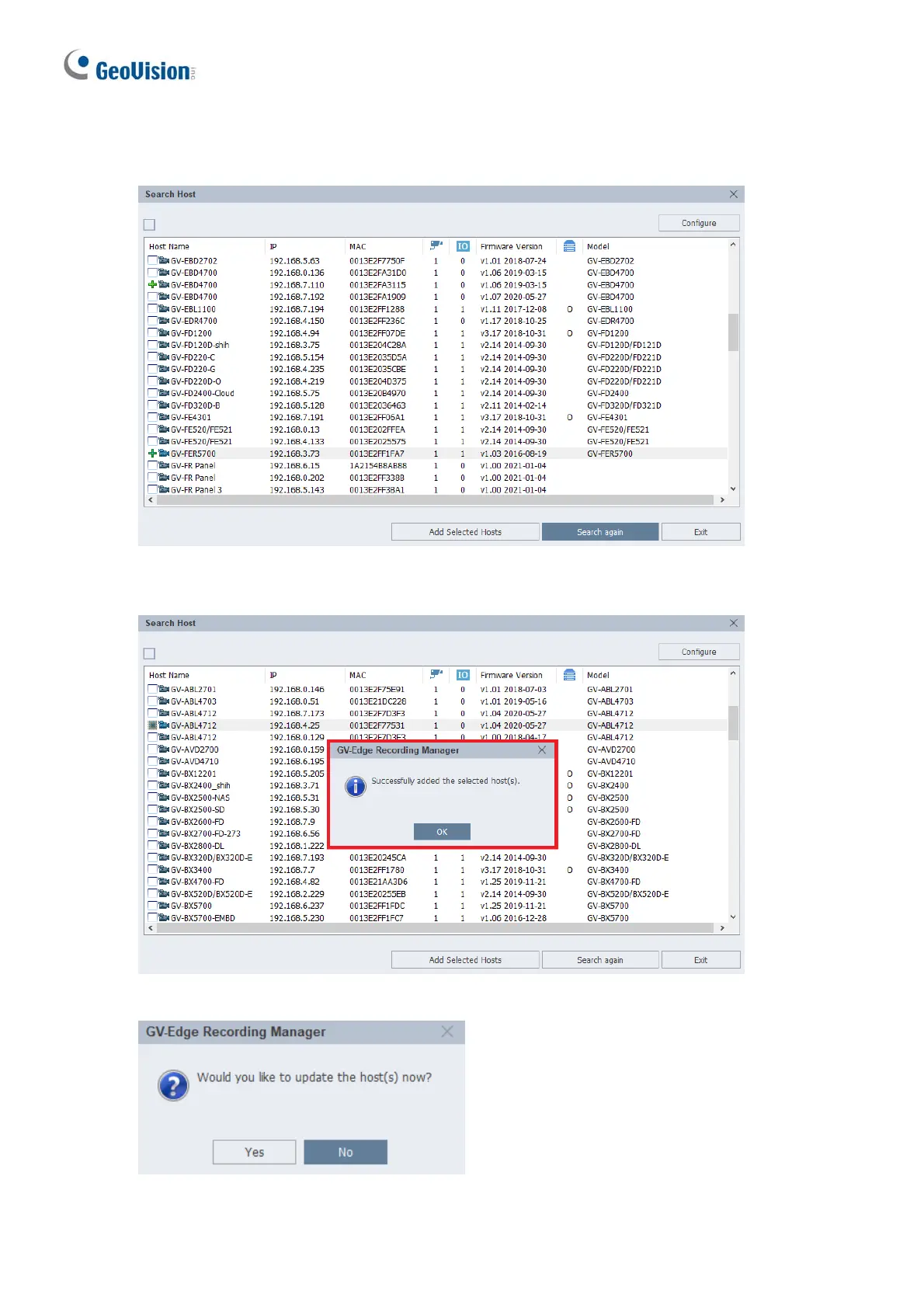

6. Repeat steps 4 and 5 to select more hosts. The selected hosts are indicated with a green
plus sign.
7. Click the Add Selected Hosts button. When the hosts are added to the Host List, you are
prompted with a message. Click OK.
8. When prompted to update the status of the added hosts, select Yes or No.

GeoVision GV-VS14 Specifications

General

PAL resolutions	704 x 576, 704 x 576, 352 x 288, 352 x 288, 176 x 144 pixels
NTSC resolutions	704 x 480, 704 x 480, 352 x 240, 352 x 240, 176 x 112 pixels
Channels quantity	4 channels
Maximum frame rate	30 fps
Maximum video resolution	704 x 576 pixels
Video compression formats	H.264, M-JPEG
PTZ control	Yes
Compatible operating systems	Windows XP\\r Windows Vista\\r Windows 7\\r Windows 8\\r Windows Server 2008\\r Windows Server 2012
Product color	Black, White
Supported network protocols	HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, Multicast, RTSP, QoS (DSCP), SNMP
Copper ethernet cabling technology	100BASE-T, 10BASE-T
BNC input ports	4
I/O terminal ports	-
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Minimum system requirements	Internet Explorer 7+
Power requirements	12V, 1.35A
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	0 - 85 %

Weight and Dimensions

Weight	730 g
Dimensions (WxDxH)	145 x 174 x 40 mm
