GeoVision GV-VS14 Quick Start Guide

Getting Started
7
2
2.2 Adding Hosts
Note: To connect to GV-DVR / NVR / VMS hosts, make sure Control Center Service and
Remote ViewLog Service functions are enabled to allow remote access of GV-Edge
Recording Manager.
1. Execute the GV-Edge Recording Manager program.
2. Upon first startup, GV-Edge Recording Manager automatically searches for the GV-IP
Devices and the servers installed with GeoVision software that are under the same LAN.

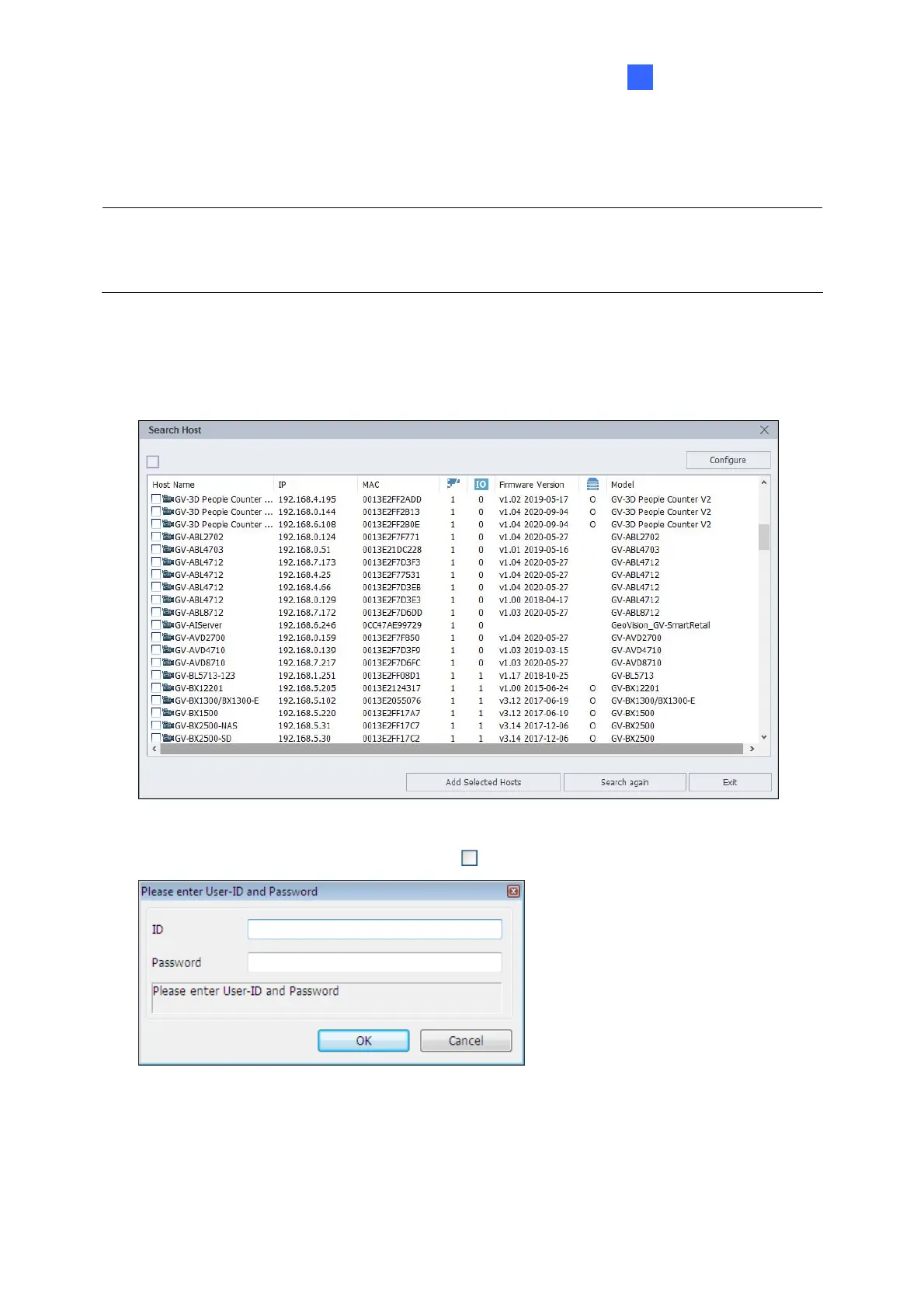

3. When the search is finished, you are prompted to select hosts. Click OK to proceed.
4. Select a desired host by checking the box
. This dialog box appears.
5. Type the ID and password of the device and click OK.

GeoVision GV-VS14 Specifications

General

PAL resolutions	704 x 576, 704 x 576, 352 x 288, 352 x 288, 176 x 144 pixels
NTSC resolutions	704 x 480, 704 x 480, 352 x 240, 352 x 240, 176 x 112 pixels
Channels quantity	4 channels
Maximum frame rate	30 fps
Maximum video resolution	704 x 576 pixels
Video compression formats	H.264, M-JPEG
PTZ control	Yes
Compatible operating systems	Windows XP\\r Windows Vista\\r Windows 7\\r Windows 8\\r Windows Server 2008\\r Windows Server 2012
Product color	Black, White
Supported network protocols	HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, Multicast, RTSP, QoS (DSCP), SNMP
Copper ethernet cabling technology	100BASE-T, 10BASE-T
BNC input ports	4
I/O terminal ports	-
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Minimum system requirements	Internet Explorer 7+
Power requirements	12V, 1.35A
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	0 - 85 %

Weight and Dimensions

Weight	730 g
Dimensions (WxDxH)	145 x 174 x 40 mm
