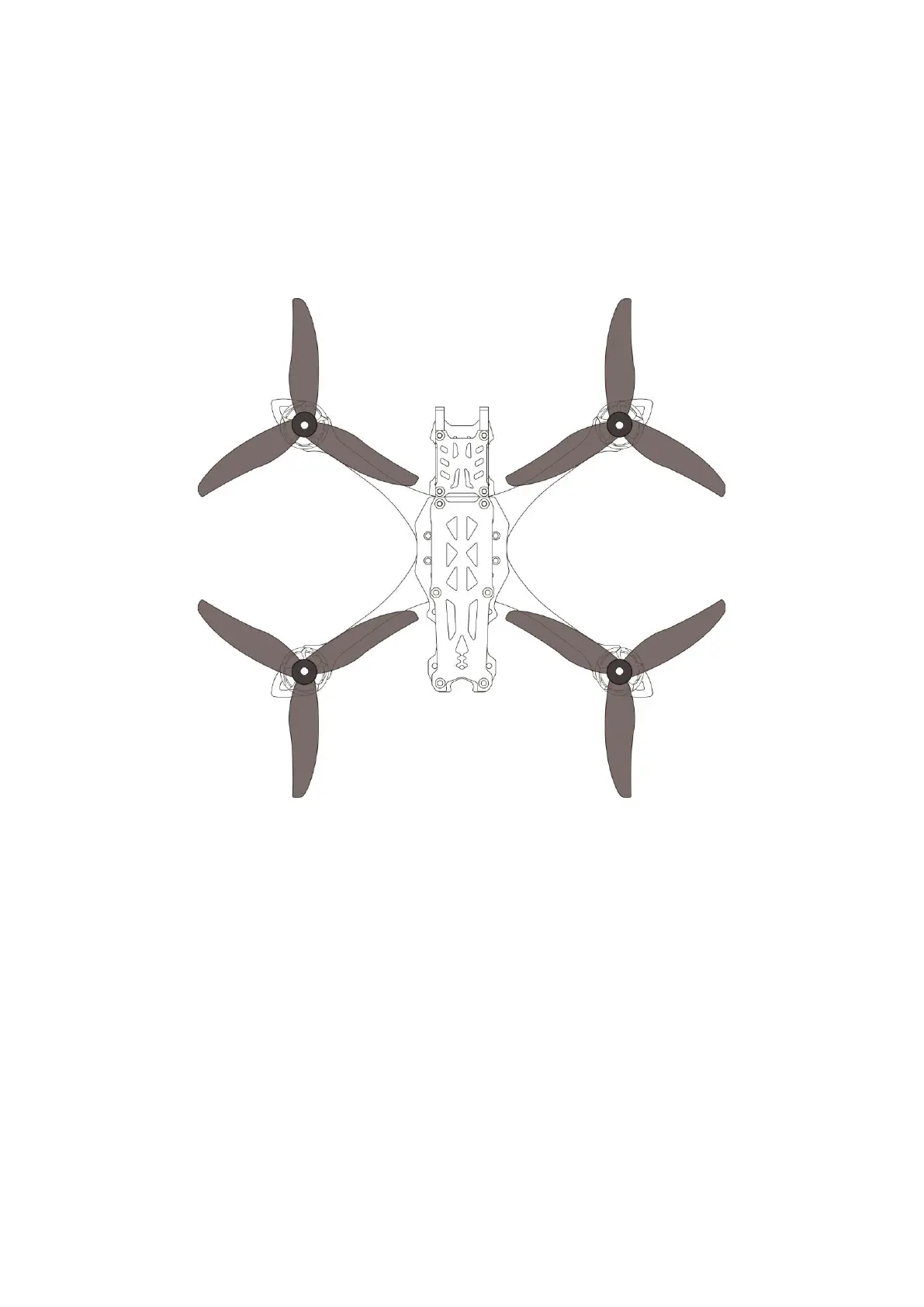

Install Propellers:
Although the propeller of MARK5 are installed in the factory, the direction of the propeller
should be checked before taking off.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the GEPRC MARK5 and is the answer not in the manual?

GEPRC MARK5 Specifications

General IconGeneral
Frame Size5 inch
Wheelbase225mm
Arm Plate5mm carbon fiber
ESC45A BLHeli_32
Flight ControllerGEPRC F722 FC
CameraCaddx Ratel 2
Battery6S LiPo recommended
Top Plate2.5mm carbon fiber
Bottom Plate2.5mm carbon fiber
FC Mounting30.5mm x 30.5mm
VTX Mounting20x20mm
Motor Mounting16x16mm
Camera Mounting19mm
Propeller5 inch
ReceiverPNP
Antenna5.8GHz
