19. Place the Feed Roll Bar onto the Left and Right Columns to
properly install the Paper Roll.
20. Follow the direction of the yellow arrows and place the Nip Bar
Lever in the UP position. This disengages the drive to move
the paper and allows a new roll to be installed.
21. Place the paper above the Crossbeam under the Front
Dancer Bar and feed it to the back of the plotter.
22. Feed the paper under and around the Take-On Dancer Bar
toward the front of the plotter.
23. Feed the paper through the Pinch Rollers toward the front of
the plotter (Figure 18).

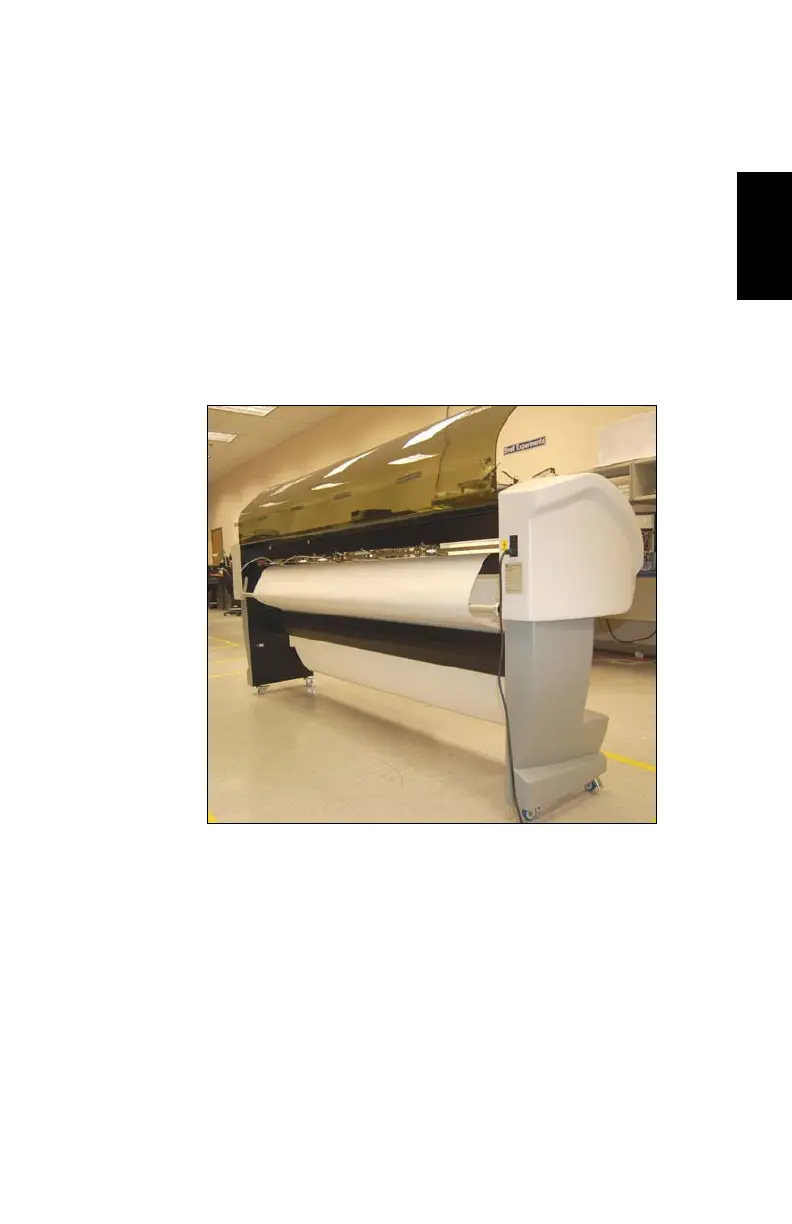

Figure 18. Paper fed through the Nip Bar and Pinch Rollers
