Complete a Test Plot on the GERBERplotter XLp
Series
This section provides step-by-step instructions to complete a plot using
the XLp Series and WinPlot.
To complete a plot using AccuMark, refer to the AccuMark plotting
documentation.
Read the Safety Instructions section before operating the plotter.
1. Ensure the XLp Series plotter is turned on and online.
2. Check the paper to ensure it is properly loaded.
3. On the computer, click the XLp Interface Icon located on the
Status Area of the Task Bar.
4. Select Plot Files.

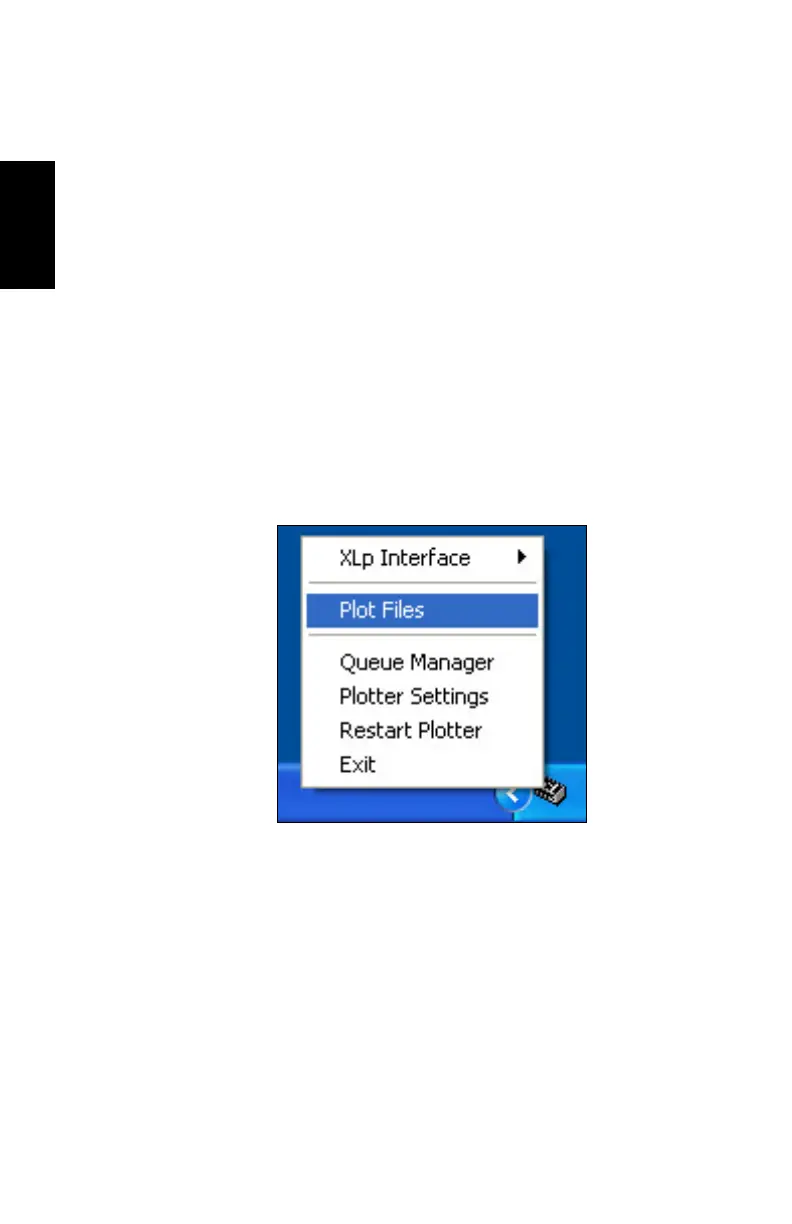

Figure 44. XLp Interface Icon
