Gerber EDGE FX Installation Guide

5
Storage of materials and foils
Plan additional space to store EDGE READY™ materials and GerberColor EDGE FX Foil Inserts
and assembled GERBER EDGE FX Foil Cartridges. Foils must be protected from direct sunlight.
Storing materials
When not in use, the material should be stored in the original plastic bag to protect it from dust
and dirt. Save the original box for long-term storage of material rolls. Never store the material
lying down or loaded in the GERBER EDGE FX, which can leave impressions on the material.
Storing the foil
Foil Inserts and Cartridge Assemblies must be stored between 40º and 90º F (4º to 32º C), in a
dry environment that is protected from direct sunlight.
Assembled Foil Cartridges should be stored in the original cardboard sleeve.
Foil is especially susceptible to static electricity which can attract dust and dirt. When the Foil
Insert is not installed in the Foil Caddy store it in the original Blister Package. The Foil ID Card
that is used in the Foil Caddy should also be returned to the slot in the Blister Package when
stored. The Blister Packages can be stacked to maximize storage space.

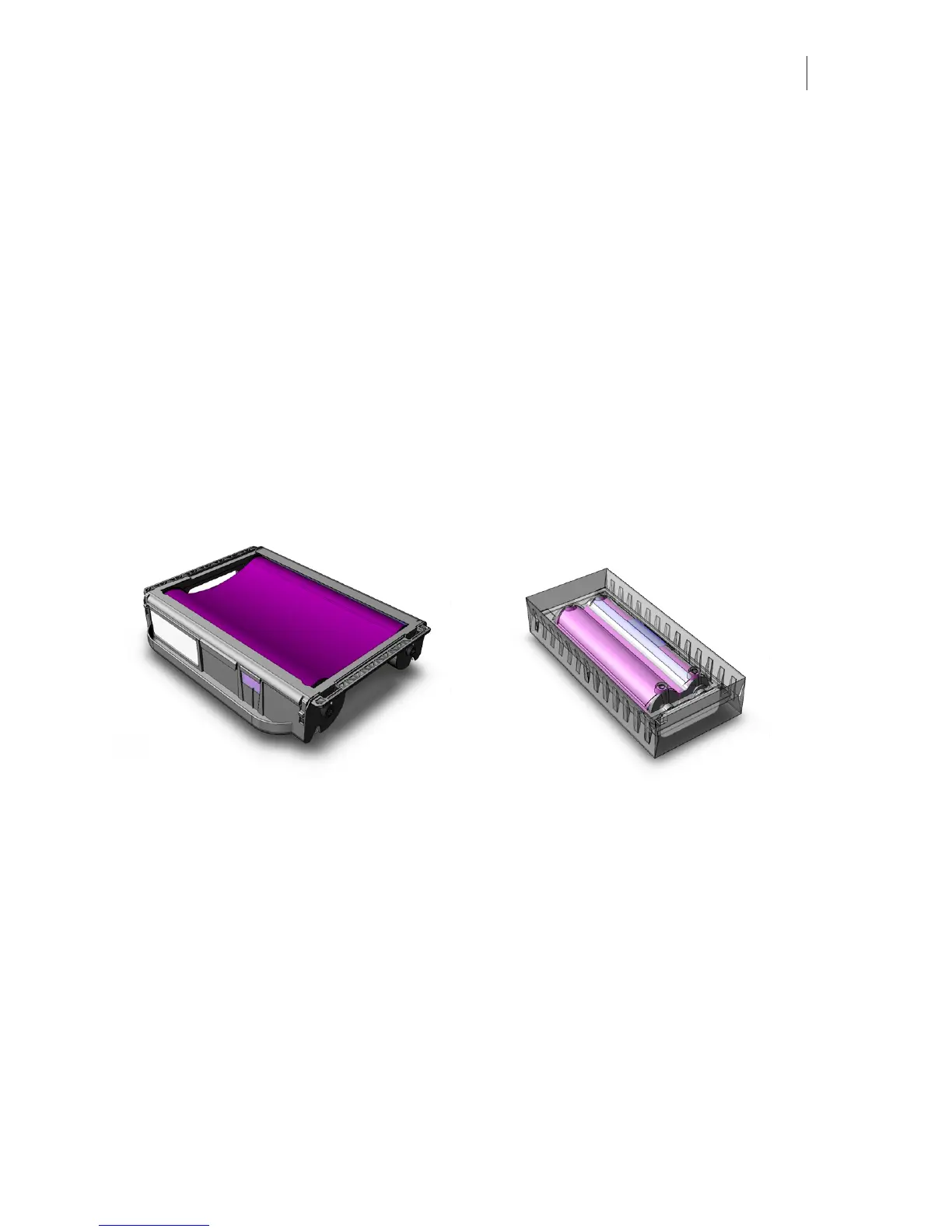

Assembled GERBER EDGE FX Foil Cartridge Foil Blister Package

Gerber EDGE FX Specifications

General

Print Technology	Thermal transfer
Resolution	300 dpi
Connectivity	Parallel
Media Types	Vinyl, Reflective
Max Media Width	15 in (381 mm)
Max Print Width	11.8 in (300 mm)
