This document shows the chronology of the disassembling of the Taurus tool
series, illustrated by corresponding pictures. This operation necessitates the use
of special tools which are separately listed. Special procedures which must be
followed are described in details and pictured. Reference is also made to the
operating instructions booklet as well as to the illustrated parts price list.
•

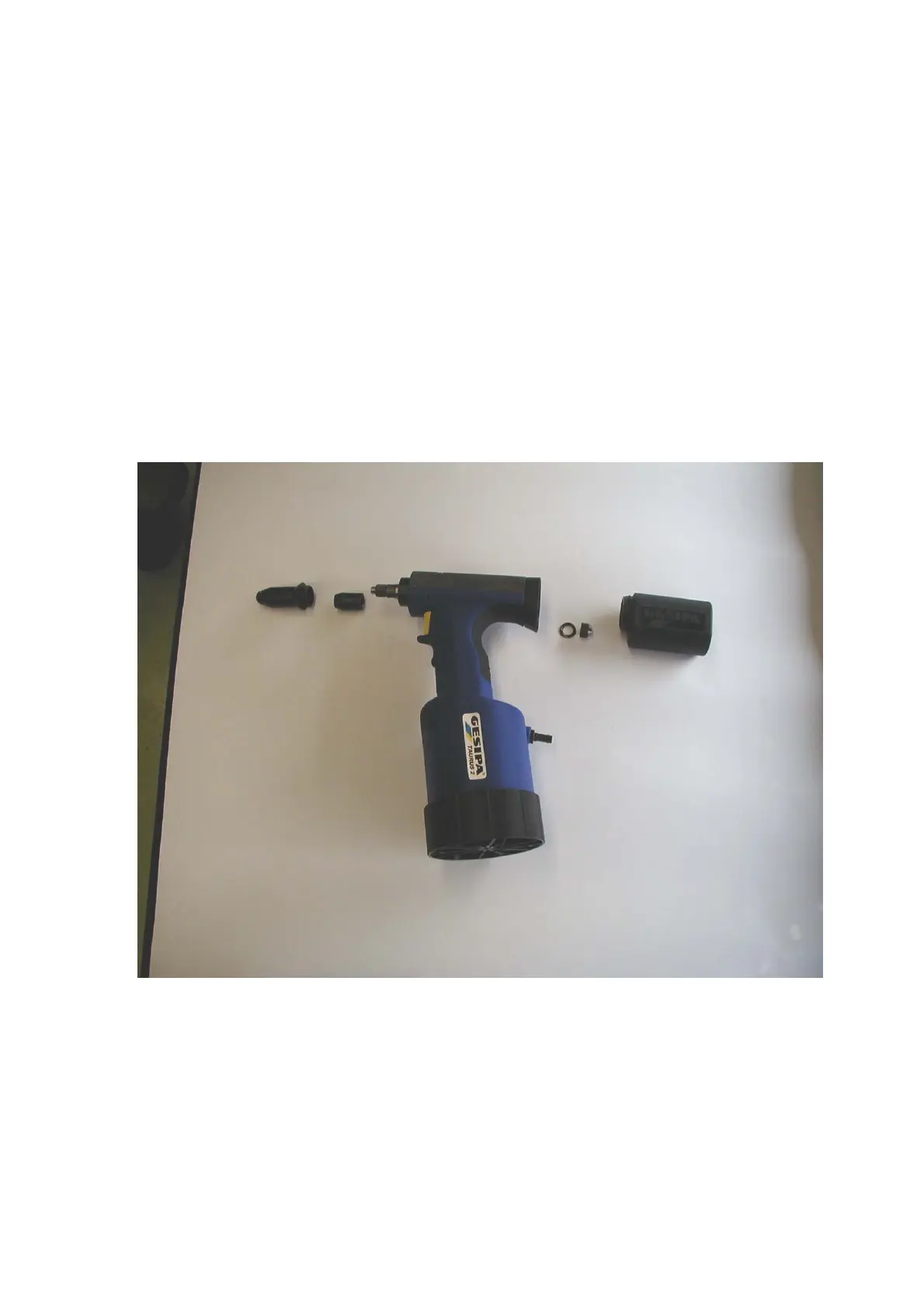

Disconnect the tool from the air pressure supply
• Unscrew head (24)
• Unscrew jaw housing (16)
• Unscrew rest mandrel container (103/104)
• Unscrew pressure pipe screw (43a,43) with spring washer (49)
•
Re-install the rest mandrel container (103/104)
