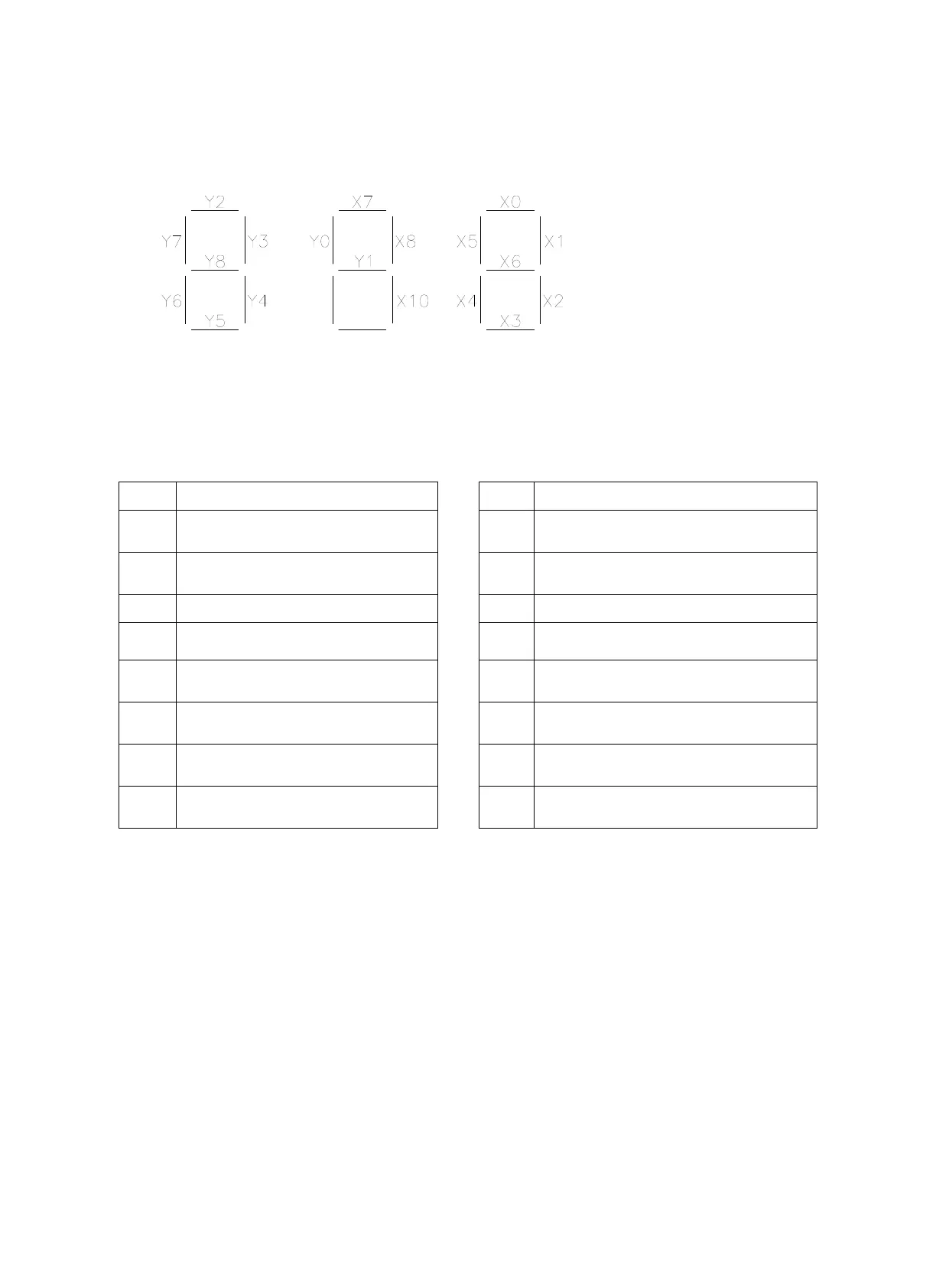

Toggle Switch 5 display code explanation
X 0 Carriage Up limit Y 0 Pin punch
X 1 Carriage Down limit Y 1
Pre-Stretch Motor Start
X 2 Carriage Height photo sensor Y 2
Pre-Stretch Low Motor Speed
X 3 Pre-Stretch Limit Y 3 Pre-Stretch accommodate
X 4 Turntable Alignment Y 4
Turntable Start
X 5 Start button 5 Y 5
Turntable Low Speed
X 6 Reset button 6 Y 6
Carriage Up
X 7 Stop button Y 7
Carriage Down
X 8 Power cut circuit 60 Y 8
Start Lamp
To Next Page
