Getac UX10 Series User Manual

3

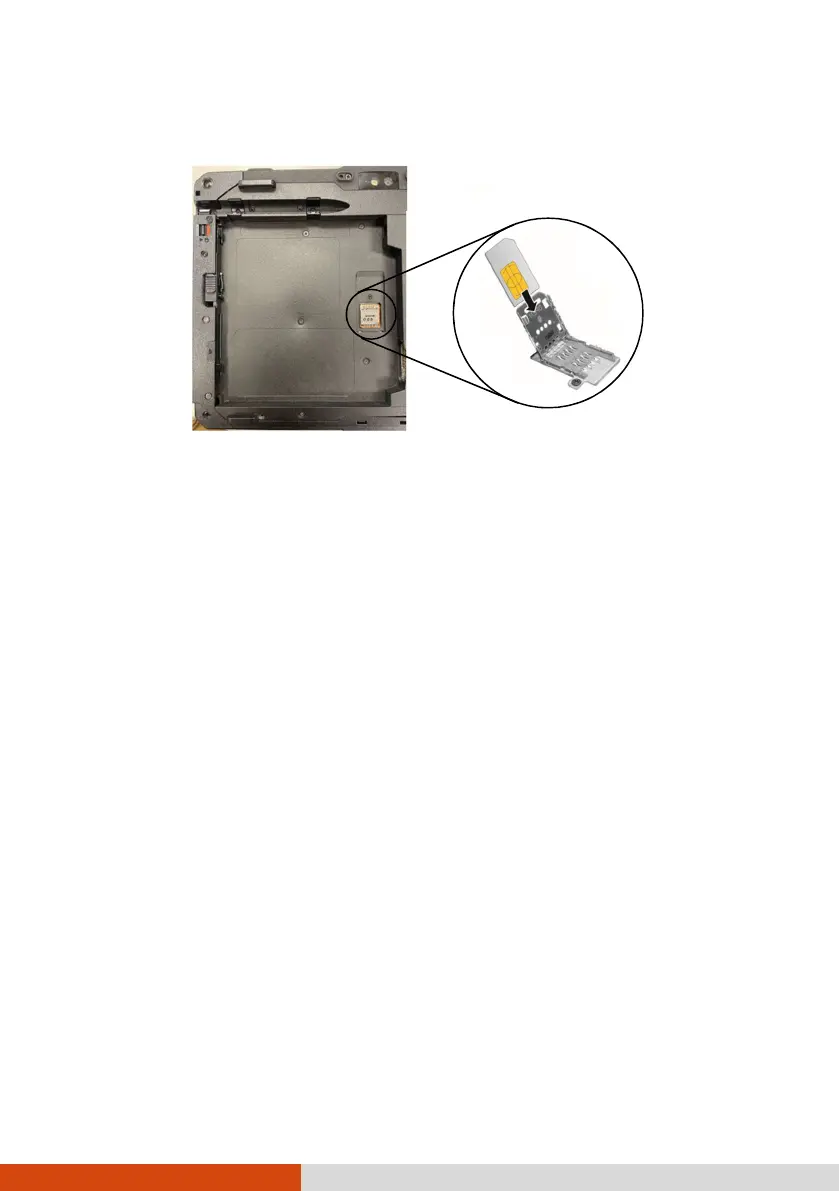

2. Slide the SIM card holder tray toward the OPEN direction to unlock. Lift up the
tray and, noting the orientation, insert the SIM card into the tray.
3. Close the holder tray and slide it back to the locked position.
Installing the Battery Pack
1. With the battery pack correctly oriented, attach its connector side to the
battery compartment at an angle (

) and then press down the other side
(

). The battery release latch should automatically engage.
NOTE: If you have the high-capacity battery model, the battery pack looks different
from the one shown here. The removal and installation method is the same.

Getac UX10 Series Specifications

General

Resolution	1920 x 1200 pixels
Storage	Up to 512GB SSD
Operating System	Windows 10 Pro
Rugged Features	MIL-STD-810H
Graphics	Intel Iris Xe Graphics
Wireless	Wi-Fi 6
Camera	Rear: 8MP
Security	TPM 2.0
Touchscreen	Capacitive
Connectivity	Optional 4G LTE
Display Size	10.1 inches
Processor	Intel Core i5 or i7
I/O Ports	USB 3.2 Gen 1 Type A x1 USB 3.2 Gen 2 Type C x1 Headphone / Microphone combo x1 DC in x1 Optional: Serial port (RS-232) x1, LAN (RJ45) x1, HDMI x1, Display Port x1, External antenna port for WWAN and GPS
