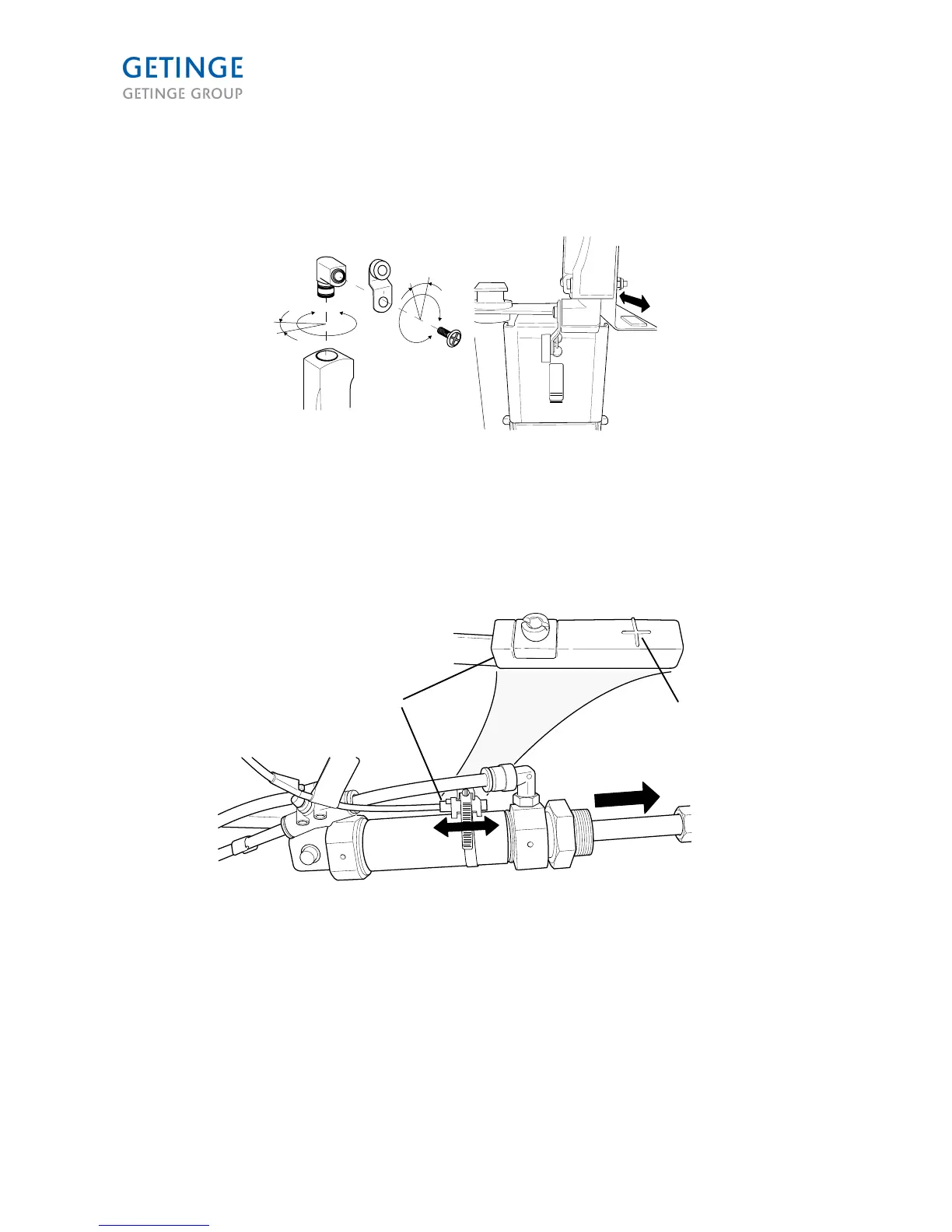

Crush protection, door
The switch for the door's crush protection is adjustable horizontally. Adjust the sensor's position so it is
as close to the crush protection plate as possible, without being activated.
The sensor's joint can be adjusted as needed to achieve the right position.
Check that the point of impact for activated/non-activated switches is distinct and that the breakpoint is
not in the switch's outer area.
Threshold cylinder switch
The cylinder for threshold control is fitted with a sensor that indicates when the cylinder is fully extended.
1. Sensor D1/D0
2. Sensitivity point
Activate manual mode for the digital output that controls the threshold cylinder
Test digital output
(2.1.6.8.2.4)
. Move the cylinder to its outer position. Move the sensor along the cylinder until it is
becomes activated, which is indicated by the sensor's built-in LED. Mark the position with a line on the
cylinder at the same level as the sensor's sensitivity point, which is marked on the sensor. Then continue
to move the sensor until it becomes non-activated, and mark this position on the cylinder. Place the
sensor so that its sensitivity point is centered between both marks.
Verify that the adjustment is correct by moving the threshold forward and backward. Adjust the restrictor
check valves to achieve a gentle and fluid motion.
