2.5 Water connections
2.5.1 General requirements
7KHSLSHVPXVWEH¿WWHGZLWKDQDSSURYHGVKXWRIIYDOYH
Water connections should meet the requirements according to the
table below.
Cold water (Blue) Warm water (Red)
Connection PP PP
Pressure 100 - 800 kPa 100 - 800 kPa
Flow rate 20 l/min at 400 kPa
pressure
20 l/min at 400 kPa
pressure
Temperature At least 2°C, but less
than 20°C
45 – 60°C
5HTXLUHPHQWVIRU.,:$FHUWL¿HGLQVWDOODWLRQV
Use KIWA approved check valves from ArjoHuntleigh AB (A)
between the water connections (B) and the machine water
hoses (C).
002396
C
A
B

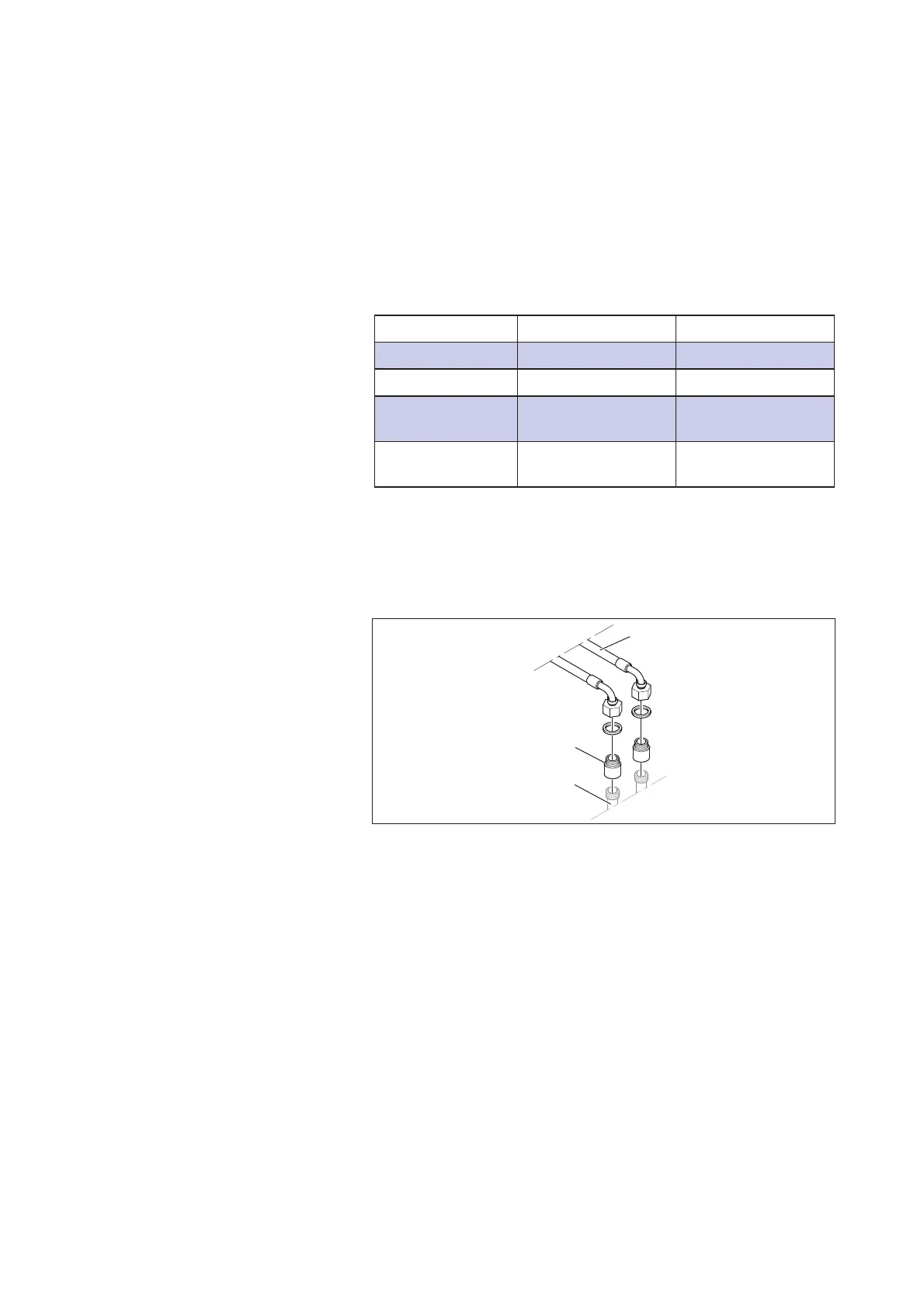

Figure 8. Installation of check valves
2.5.3 Connect water
Connect the water as follows:
1. Check that the requirements for pipes and water connections
are met.
2 Connect the water.
)RU.,:$FHUWL¿HGLQVWDOODWLRQVFKHFNWKDWWKHFKHFNYDOYHV
are attached correctly.
4. Seal all connections with PTFE tape.
