Getinge Lucea 50 Maintenance Manual

3
Technical specifications
Diagrams
12 / 44
Lucea 50_100
01740 EN 01

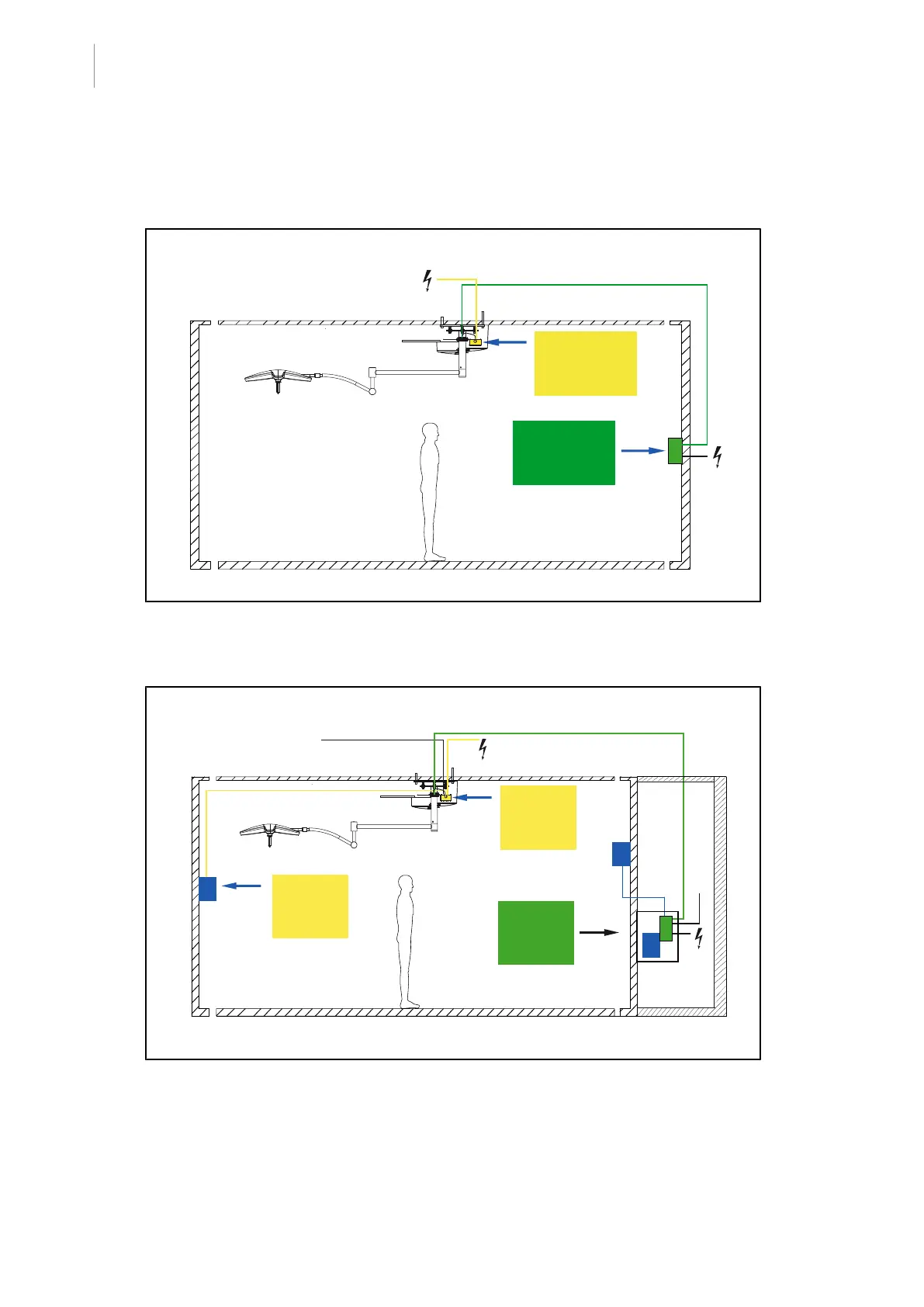

3.5.1 Electrical connections: Installation diagram
Ceiling-mounted or wall-mounted power supply without backup
Power supply output
Option A:
power supply
ceiling-mounted unit
Option B:
power supply
wall-mounted unit
Fig.1: Power supply without backup
Ceiling-mounted or wall-mounted power supply with customer backup switchover
RS
RS
RS
Power supply output
Equipment
room
Option A
Ceiling-mounted
power supply
Option B
Wall-mounted
power supply
with remote backup unit
Option A
with wall-mounted
remote backup
unit
Customer backup input
Customer backup input
Or
remote
RB: Remote backup unit
Fig.2: Power supply with backup
Link between backup switchover and remote backup unit: CAT 5 (maximum length 80 m)
