SW Service Protocol PM OR Lights LUCEA 50 100-A
5
Lucea 50_100
01740 EN 01
43 / 44
SAFETY SCREWS :
Maquet recommends a preventive safety screw replacement every 6 years.
TUB 60 ADPT 120 TO 60 BUSHING OF THE MAIN ARM OF SUSP. SA
ARD515088900
SUSP. BLUE 30-80
SUSP. LCA40-50-100
SUSP. VOLISTA ACCESS
P/N : ARD315027555
SET OF 6 PREGLUED SCREWS CHC TB M6X20 10.9
Tightening torque : 16 Nm
P/N : ARD368325556
SET OF 4 SCREWS FHC M6X8 INOX A2-70
P/N : ARD368835555 SET ADAPTER FOR TUBE HLX2
SET OF 4 PREGLUED SCREWS FHC M6X16 - 10.9 ARD567914999 Tightening torque : 6 Nm
Tightening torque : 16 Nm
BUSHING OF THE MAIN ARM OF SUSP. SATELITE
ECL
SUSP. PRC
SUSP. PRX (Avant Sept. 2002)
A = P/N : ARD315027555
SET OF 6 PREGLUED SCREWS CHC TB M6X20 10.9
B = P/N : ARD367014555
SET OF 6 PREGLUED SCREWS CHC M6X12 10.9
Tightening torque : 16 Nm P/N : ARD315028555
SAT-SET OF 4 SCREWS FOR ONDASPACE - 12.9
Tightening torque : 16 Nm
SET ADAPTER FOR TUBE HANAU CITY
ARD397807555 BUSHING OF THE MAIN ARM OF SUSP. ACCESS
P/N : ARD367014555 P/N : ARD397808555
SET OF 6 PREGLUED SCREWS CHC M6X12 - 10.9 SET OF 12 PREGLUED SCREWS CHC & FHc - 10.9
Tightening torque : 16 Nm
TUB 130
SUSPENSION SA
SUSP. PRX (Après Sept. 2002)
P/N : ARD368840555
SET OF 4 PREGLUED SCREWS FHC M6X12 - 10.9
A : Tightening torque : 16 Nm
Tightening torque : 16 Nm
B : Tightening torque : 16 Nm
BUSHING OF THE MAIN ARM OF SUSP. LCA DF
P/N : ARD367270555
SET OF 6 PREGLUED SCREWS CHC M6X20 -10.9
Tightening torque : 16 Nm
SATELITE P/N : ARD368840555
SET OF 4 PREGLUED SCREWS FHC M6X12 - 10.9
AXE 1 : SUSPENSION SA
AXE 1 : SUSP. PRX (Après Sept. 2002) Tightening torque : 16 Nm
AXE 2-3 : ARM SAT
A = P/N : ARD315027555
SET OF 6 PREGLUED SCREWS CHC M6X20 -10.9
B = P/N : ARD315026555
SET OF 6 PREGLUED SCREWS CHC M6X25 - 10.9
Tightening torque : 16 Nm
SAFETY SEGMENT :
Maquet recommends a preventive safety segment replacement every 6 years.
For the reference, please, consult the technical manual of your equipment.

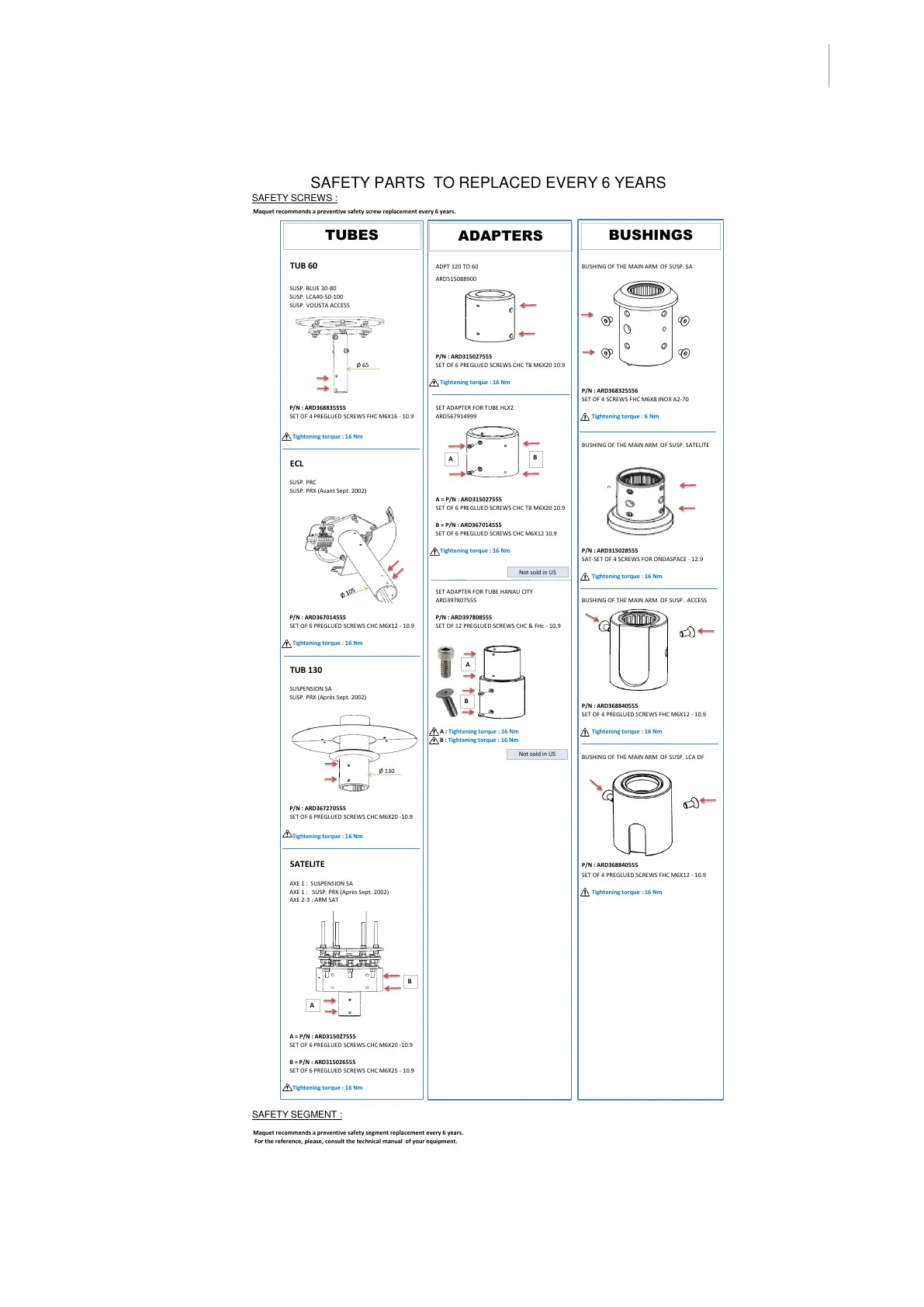

SAFETY PARTS TO REPLACED EVERY 6 YEARS
A
B
Not sold in US
A
B
Ø 130
Ø 65
A
B
TUBES
Not sold in US
ADAPTERS
BUSHINGS
