GEZE ECturn Inside Installation And Service Instructions

ECturn Inside
12

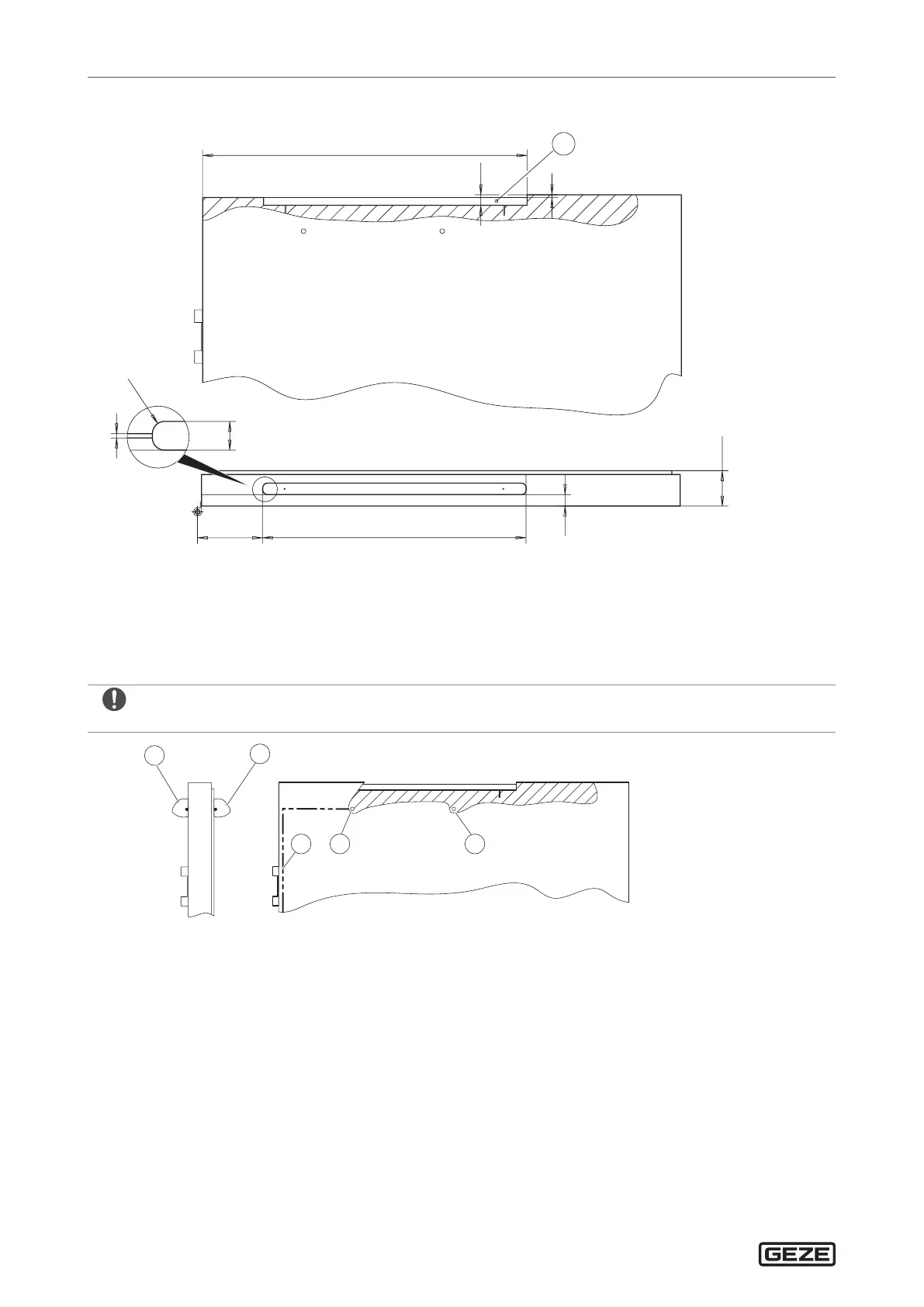

Dimensions
5.2.4 Preparation of door leaf











*) Dimensions or positions can deviate depending on the door type
1 Rebate for lever
5.2.5 Security sensors
X
Make sure that fixing screws and drill holes do not cross the motor gear unit.


  
1 Security sensor "Open"
2 Security sensor "Close"
3 Connector cable to the control unit
4 Drill hole Ø 8 mm for control unit connector cable.
5 Drill hole Ø 8 mm for connection cable for the "Close" sensor
