ECturn Inside
17
Installation

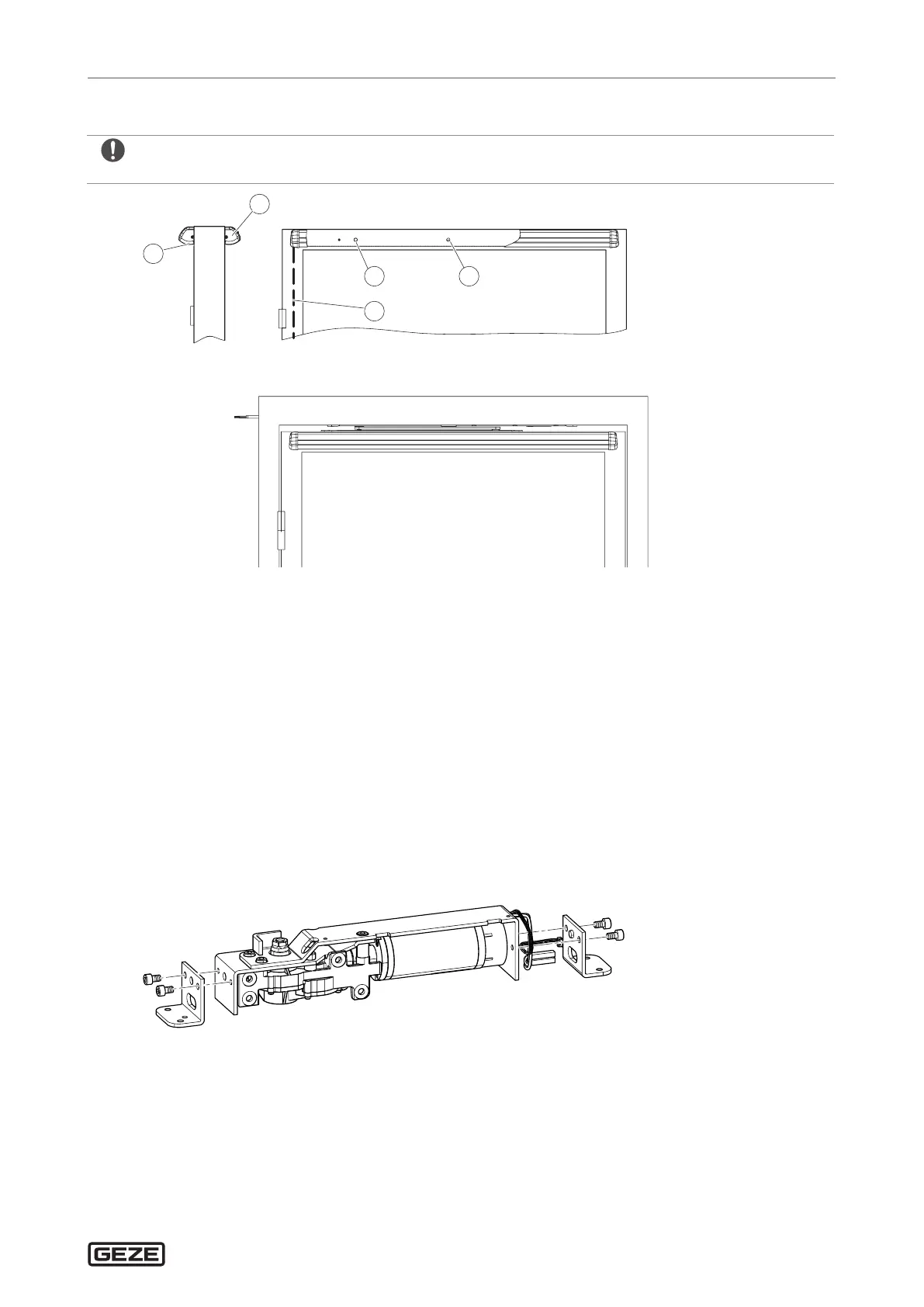

5.4.5 Security sensors
X
Make sure that fixing screws and drill holes do not cross the motor gear unit.
1 Security sensor "Close"
2 Security sensor "Open"
3 Drill hole Ø 8 mm for control unit connector cable (5)
4 Drill hole Ø 8 mm for connection cable for the "Open" sensor
5 Connector cable to the control unit
6 Installation
6.1 Installation type wood
6.1.1 Preparatory work
X
Install the power supply and route low voltage to the drip loop.
X
Install the drip loop.
6.1.2 Installation on the door leaf
X
Install the bracket on the motor gear unit.
X
Install the motor gear unit in the door leaf.
