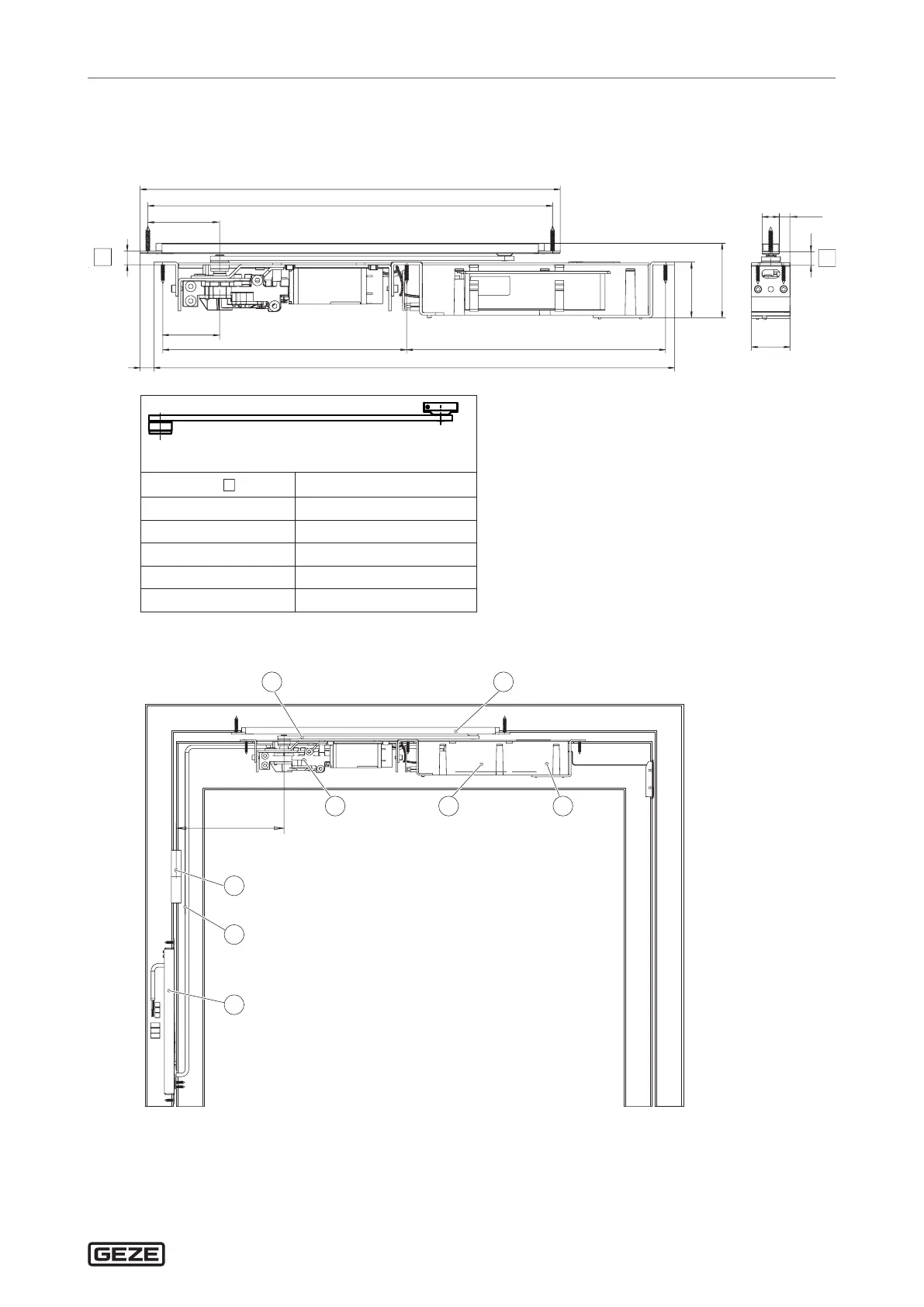

Dimensions
5.3 Dimensions when installed in metal door
5.3.1 Main dimensions

















*) Dimensions or positions can deviate
depending on the door type
**) Values between by slightly bending
the lever
Dimensions
K
(mm)**
Spindle extension (mm)
16 without
22 6
29 13
32 16
36 20
5.3.2 Installation situation







1 Lever
2 Guide rail
3 Control unit
4 Rechargeable battery
5 Motor gear unit
6 Door hinge
7 internal connection cable Ø 6.5 mm for low
voltage
8 Drip loop and separating point
