GEZE Perlan AUT-NT Wiring Diagram

GEZE Perlan AUT-NT
5
Abbreviations
5 Abbreviations
Wire colours
BN brown
BK black
BU blue
GN green
GY grey
YE yellow
OG orange
PK pink
RD red
TQ turquois
VT violet
WH white
Connections, terminals and plugs
GND Reference potential
INC Rotary transducer
K Contactor
KS Contactor close
MA Motor
MB Motor
STOP Stop
6 Supply terminals
CAUTION!
Destruction of the component through incorrect connection.
Defective controller
X
Ensure that the polarity of Connections 1 and 2 is correct.
Motor connection
Terminal Signal name Wire colour
1 Earth white
85 Signal 1 yellow
86 Signal 2 green
82 +5 V brown
MB Motor + red
MA Motor – blue
Voltage connection
Terminal Signal name
1 Earth (–) power pack
2 24 V DC (+) power
pack

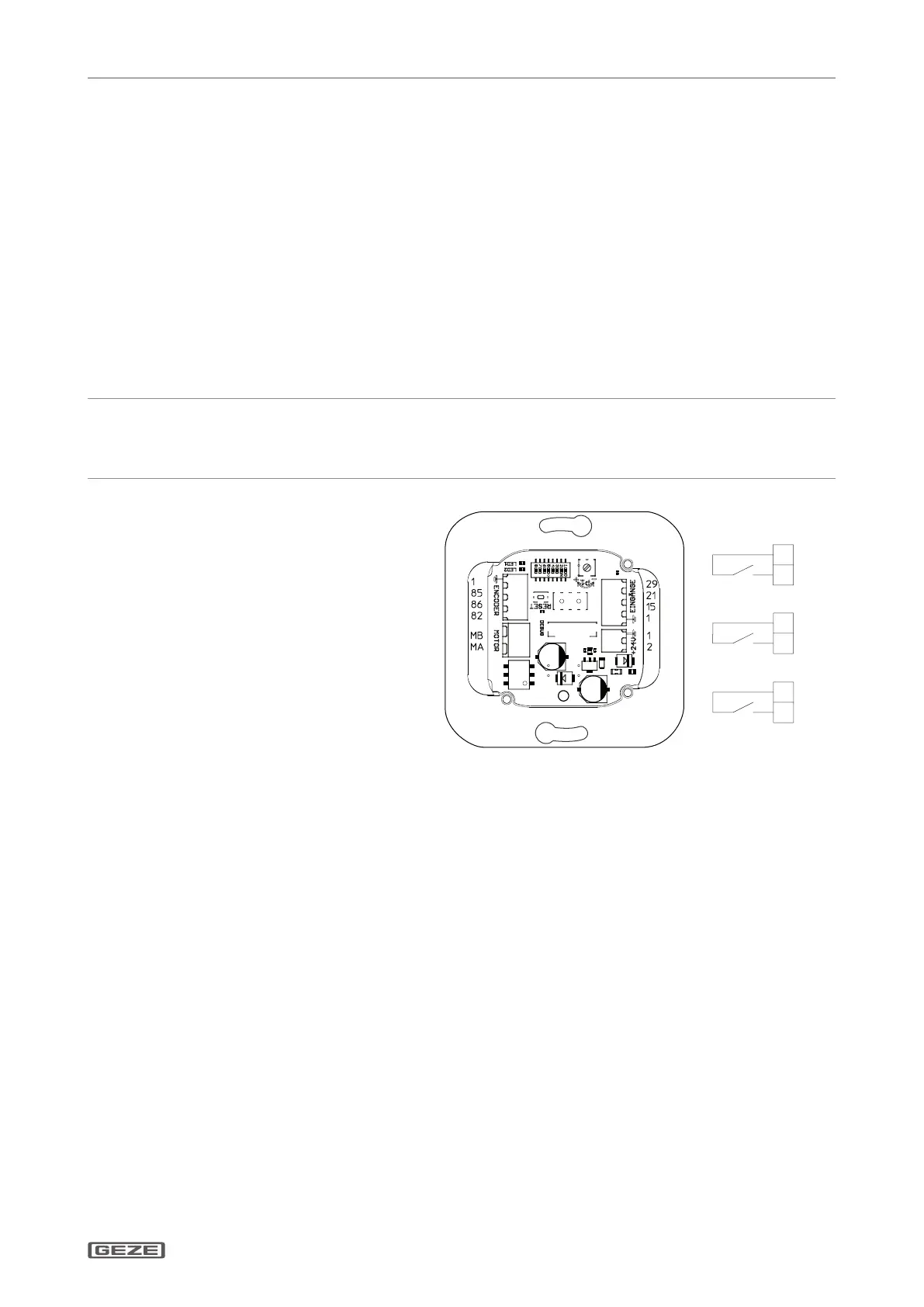

Switch connection
Terminal Signal name
29 CLOSE
21 OPEN
15 STOP
1 Earth
1
15
1
29
1
K
KS
STOPP
GND
K
GND
KS
GND
STOPP
21
7 Function description
The system is an electrical sliding door drive. The controller drives a 24V DC motor that moves a linear sliding
door via a toothed belt.
The controller and power packs have to be mounted in separate concealed/surface-mounted boxes in accord-
ance with DIN49073. The housing is hidden completely in separate concealed/surface-mounted boxes. The con-
troller is operated via a detachable switch that ts into a common switch range with a rocker switch dimension of
55mm. The controller is supplied by a power pack. The power pack supplies 24V direct current and is connected
to Terminals 1 and 2. It can be mounted in a neighbouring concealed/surface-mounted box or further away.
The screw terminals for connecting the lines are combined into groups:
à Supply voltage (Terminals 1 and 2)
à Inputs (Terminals 1, 15, 21, 29)
à Motor (Terminals MA and MB)
à Rotary transducer (Terminals 1, 85, 86 and 82)
