GFA TS 971 - Electrical Installation and Wiring; Electrical Installation Overview

TS 971 Industrial Door Control
8

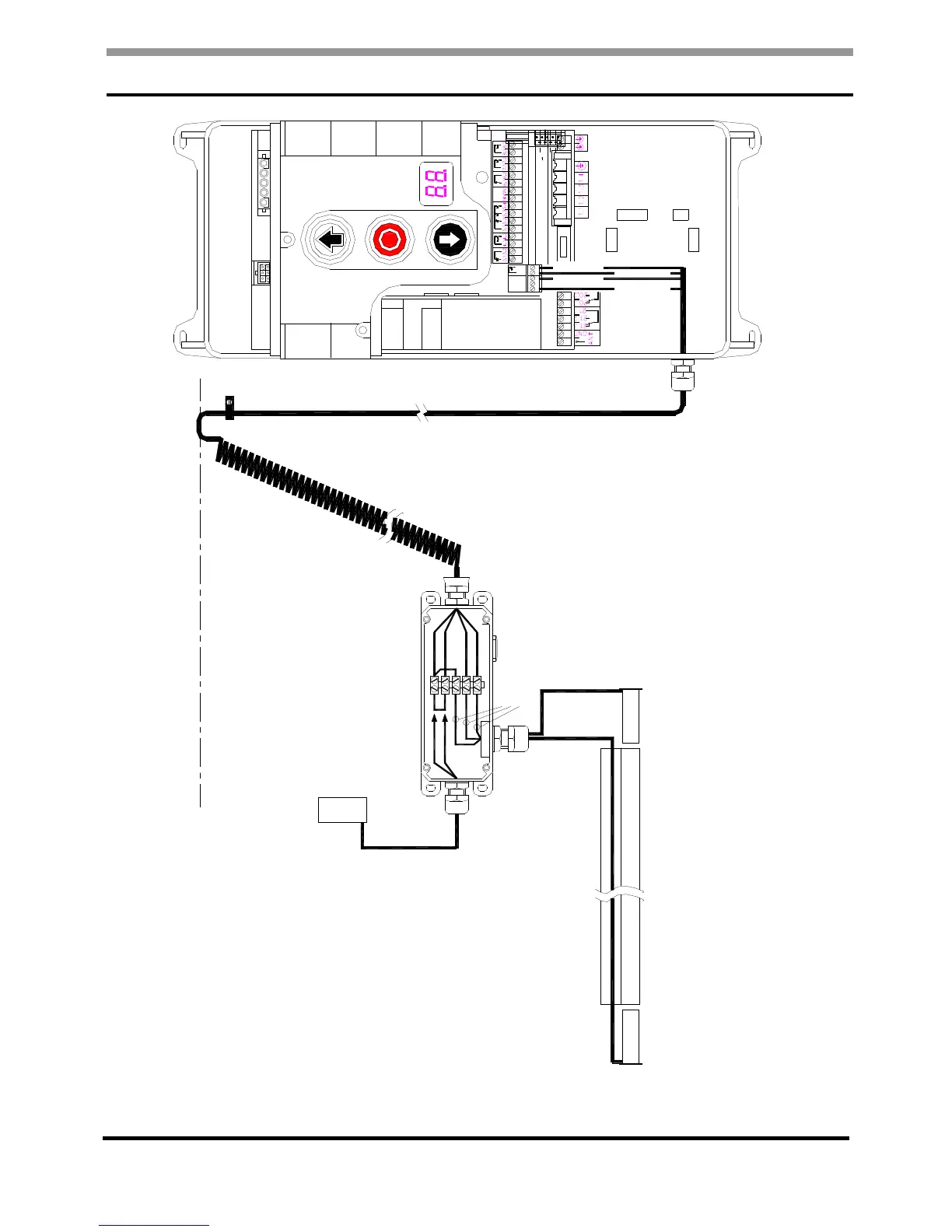

TS 971 - KSR4P – Optical Safety Edge
Fig 4a
4 WH 3 GRN 2 YEL
1 BRN
SK/w
SK/g
SK/b
ST+
ST
2 x WHITE 2 x GREEN 2 x BROWN
1 BROWN
3 GREEN
2 YELLOW
4 WHITE
2.1
2.2 2.3 2.4 2.5
SHUTTER CENTRE LINE
SHOOT BOLT,
PASS DOOR OR
SLACK WIRE SWITCH
REMOVE LINK IF
CONNECTING SHOOT
BOLT, PASS DOOR OR
SLACK WIRE SWITCH
RECEIVEREMITTER
2.5
2.4
2.3
2.2
2.1
F1=1,6A t
