GFA TS 971 - Connection Cable Overview

TS 971 Industrial Door Control
9
TS 971 - KSR6 – Wireless Optical Safety Edge
N.B. The TS 971 terminals 2.1 – 2.5 are disabled when the wireless safety edge used.
DO NOT CONNECT ANY DEVICE TO TS 971 TERMINALS 2.1 – 2.5
RECEIVEREMITTER
ST3 ST1
SET SWITCH
TO
POSITION'A'
ST3
ST2
ST1
P1
S1
B A
IR
KL1
X1
X2
SHOOT BOLT,
PASS DOOR OR
SLACK WIRE SWITCH
REMOVE LINK FROM X1 IF CONNECTING SHOOT
BOLT, PASS DOOR OR SLACK WIRE SWITCH
N.B. IF NO SWITCHES ARE CONNECTED TO X1
REMOVE THE LINK AND REPLACE WITH THE 8K2
RESISTOR SUPPLIED WITH THE BATTERY
SET SWITCH
TO
POSITION'IR'

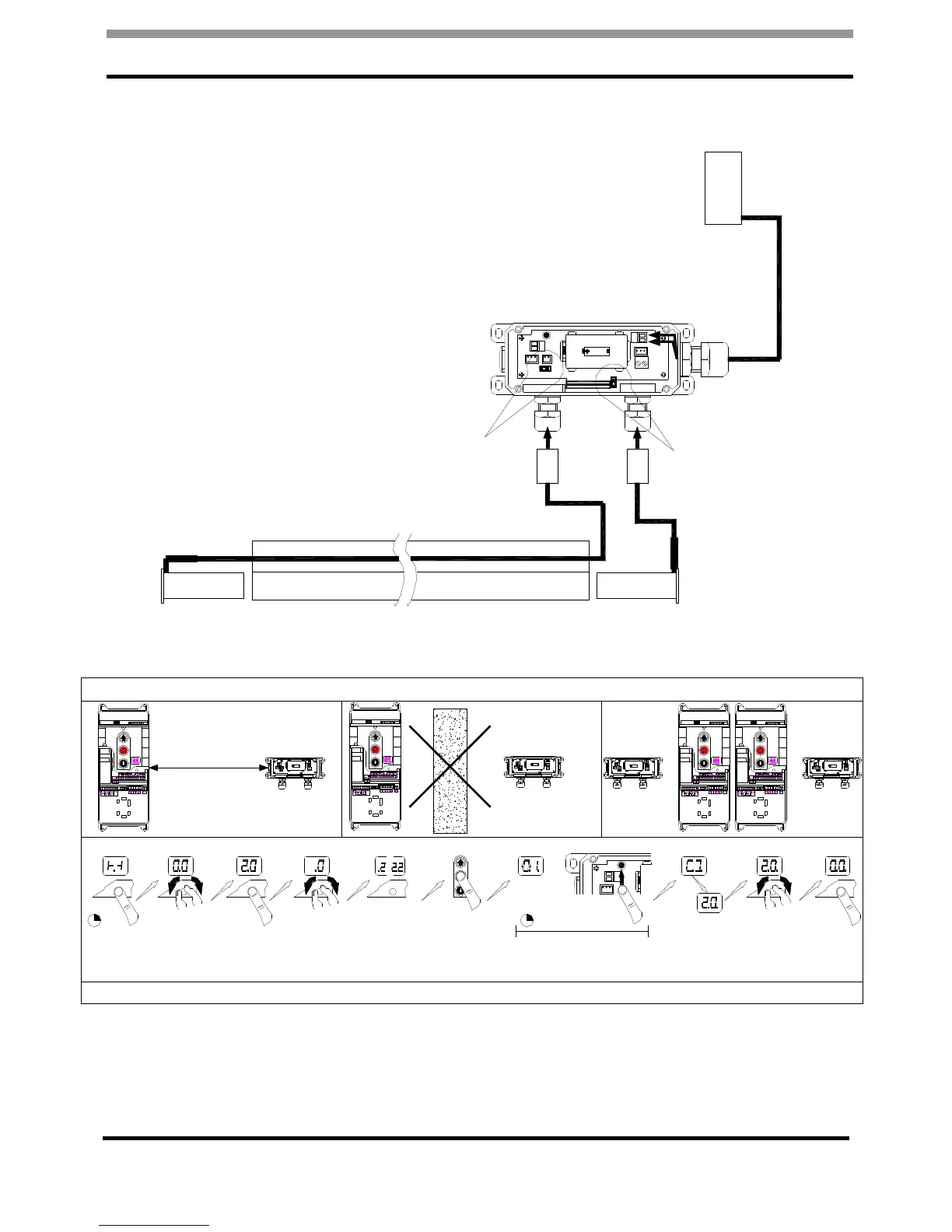

INSTALLATION AND PAIRING THE TS971 AND WIRELESS SAFETY EDGE
ST3
ST2
ST1
P1
S1
B A
IR
KL1
X1
X2
10m
MAX
ST3
ST2
ST1
P1
S1
B A
IR
KL1
X1
X2
OBSTRUCTIONS,
PARTICULARLY STEEL
OR REINFORCED
CONCRETE WILL REDUCE
THE RANGE OR BLOCK
THE SIGNAL ENTIRELY
ST3
ST2
ST1
P1
S1
B A
IR
KL1
X1
X2
ST3
ST2
ST1
P1
S1
B A
IR
KL1
X1
X2
SYSTEMS IN
THE SAME
AREA MUST BE
PROGRAMMED
TO DIFFERENT
CHANNELS.
3s
-
+
PRESS AND
HOLD FOR 3
SEC
TURN TO 2.0 PRESS ONCE
AND RELEASE
-
+
TURN TO SELECT
A CHANNEL.
-
PRESS STOP
ONCE AND
RELEASE
P1
X2
10s
WITHIN 10 SEC PRESS
WIRELESS SAFETY EDGE
BUTTON P1
*
*
-
+
*
THE ADDITIONAL DECIMAL
POINT INDICATES THAT
PAIRING IS SUCCESSFUL
*
TURN BACK TO 0.0
AND BREIFLY PRESS
TO EXIT
CONSULT THE TS971 INSTALLATION INSTRUCTIONS FOR FULL INSTRUCTIONS AND SAFETY INFORMATION
2 - 2.2
