GFI System SKYLAB REVERB User Manual

2
User Manual
SKYLAR
REVERB
USER MANUA L
OUTPUT
EXPRESSION
MONO IN
STEREO IN
TAP TEMPO
< use TRS cable >
< use TS cable >
MONO OUT
STEREO OUT
< use TRS cable >
< use TS cable >

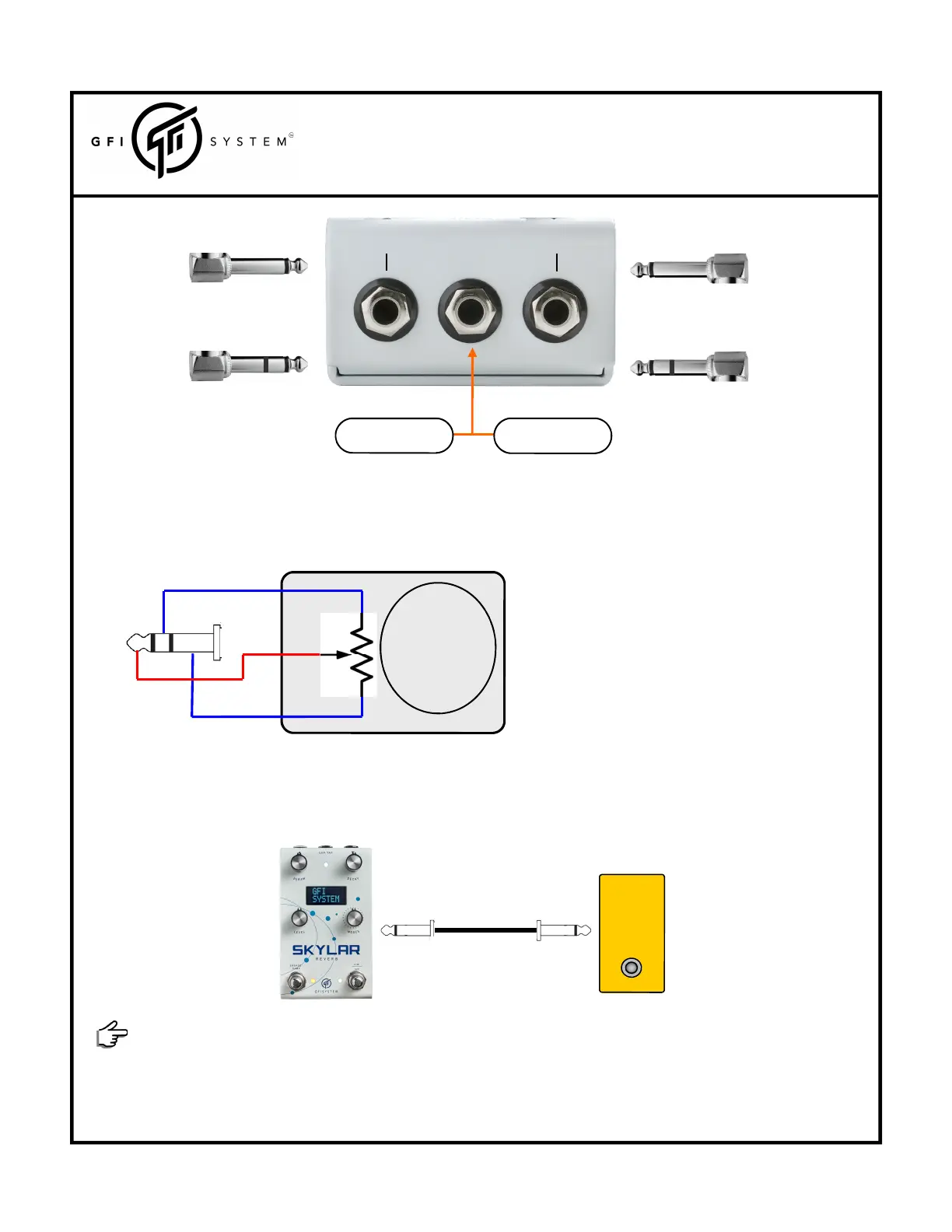

3. Expression Input
An expression pedal may be used to control any one of the primary parameters, alternatively a tap
tempo pedal may be used to remotely send tap tempo signal to the pedal.
INPUT
wiper
Tip
Ring
Expression Pedal requirement.
Some expression pedal on the market has its
wiper connected to the Ring instead, this will
not work with Skylar. Make sure you get the
suitable type : Wiper-to-Tip.
Wiper resistance value should be 10 to 20
KOhm.
4. Tap Tempo Input
A tap-tempo pedal may be connected to the EXP/TAP input to remotely tap in the tempo. The
switch contact must be ‘Normally-Opened’ (NO) type.
TS cable & plug
TAP
PEDAL
Resistance value
10K Ohm
to
25K Ohm
Auto detection
Upon power up Skylar will automatically detect the presence (or absence) of an expression
pedal or a tap-tempo pedal. Therefore, after plugging/unplugging the external gear you need
to reboot Skylar to let it detect the changes.
