27
For reference, the table bellow indicates the various effective seat angles at
the reference saddle heights:
Frame size S M L
E
D1
E D1 E D1
Reference
saddle height
69 cm 77 cm 85 cm
P1 (-20mm)
77,535° 502,25 77,495° 524,02 78,535° 534,79
P2 (0mm)
75,644° 519,26 75,823° 539,29 77,009° 549,82
P3 (+20mm)
73,733° 536,33 74,131° 555,60 75,467° 565,21
In addition to the Vector SLR seat post offset adjustments, your saddle rail
can slide to acheive your exact saddle position
Vector SLR height adjustment
WARNING
To avoid serious injury
Vector SLR seat post is designed to be cut at the appropriate length to
match your saddle height.
Cutting Vector SLR seat post requires extreme caution.
For any questions regarding methods of installation, adjustment,
maintenance or operation, please
contact your Giant dealer.
CAUTION
Make sure you have anticipated the saddle offset adjustment as it will
influence the saddle height.
The seatpost holder is not a traditional seatpost clamp. Pay attention to
the recommended torque of 2Nm.
Over-tightening the seatpost may result in damaging the frame and the
seatpost.
Vector SLR must be cut at the appropriate length and needs to be to be
supported by the frame inner stopper.
Once cut, your saddle height can still be increased and be adjusted with the
Vector SLR spacers.
28

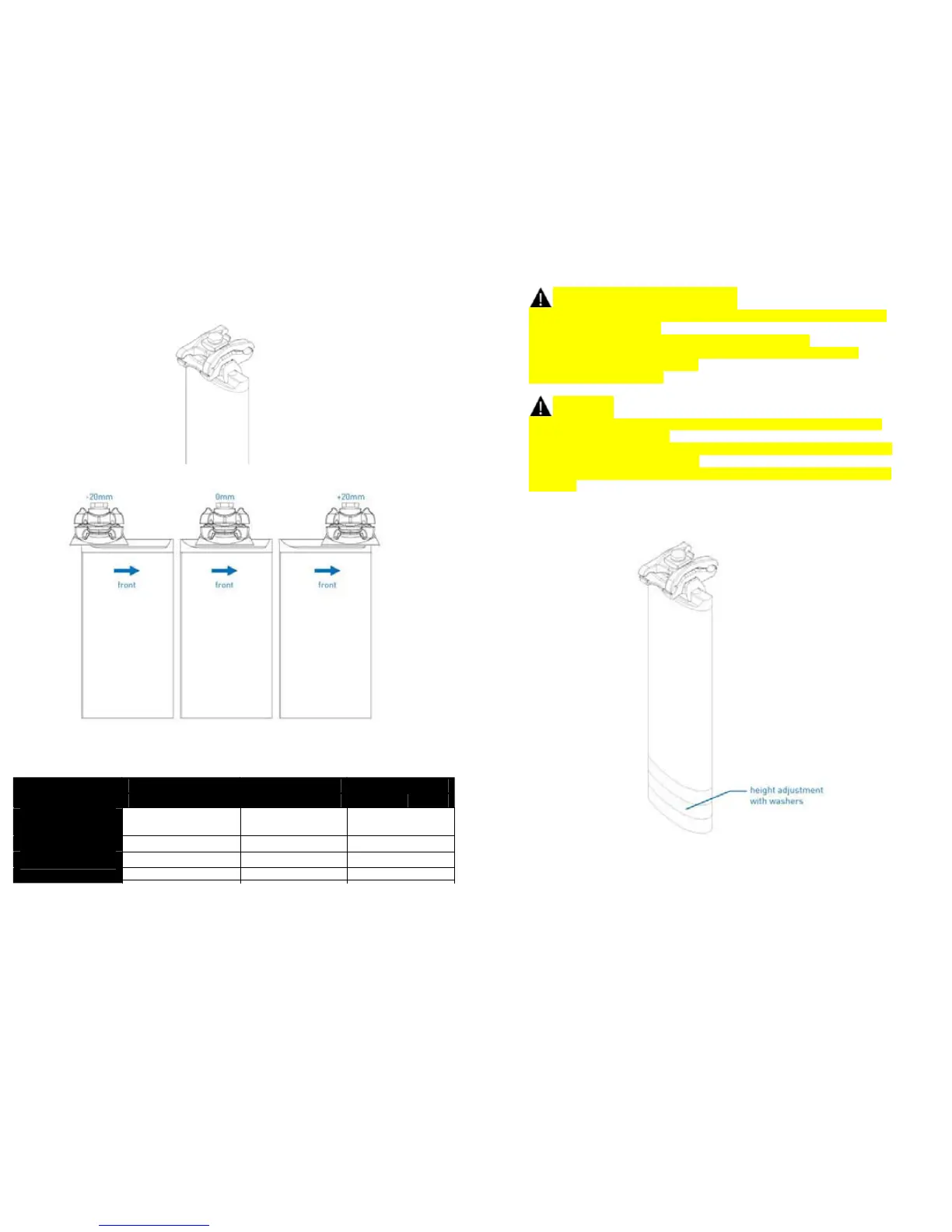

Figure 15 : Vector SLR height adjustment
The rubber seal is necessary to protect dust and projections to get into the
clamp mechanism or into the frames tubes.
The rubber is not waterproof and will not fully protect against water spray
getting into the frame. Make sure to periodically check seatpost, clamp parts
and seattube.
Vector SLR Seat post & seat clamp
The seatpost design is one of the most aerodynamic and light weight designs
available.
Saddle clamp offsets
The Vector SL seat post provides 3 offset choices: -20, 0, +20mm.
Figure 14 : Vector SLR saddle clamp offsets
