15

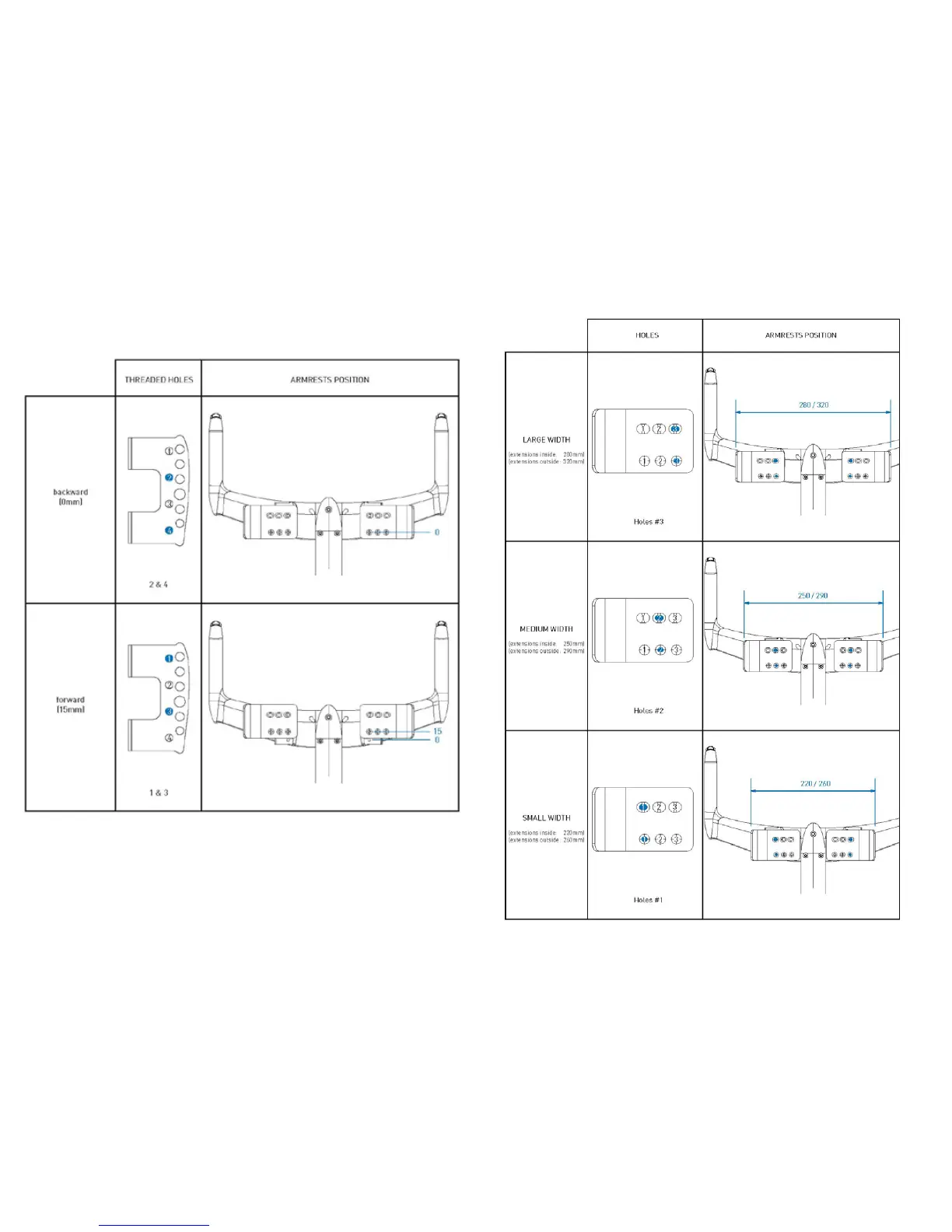

Armrest pads adjustments
Armrest pads fore and aft adjustment.
The armrest pads can be bolted onto the clamps in 2 positions.
Figure 6 : Armrest pads fore and aft adjustment
16
Armrest pads width adjustment
Figure 7 : Armrest pads width adjustment
