5
Operations prior to assembly

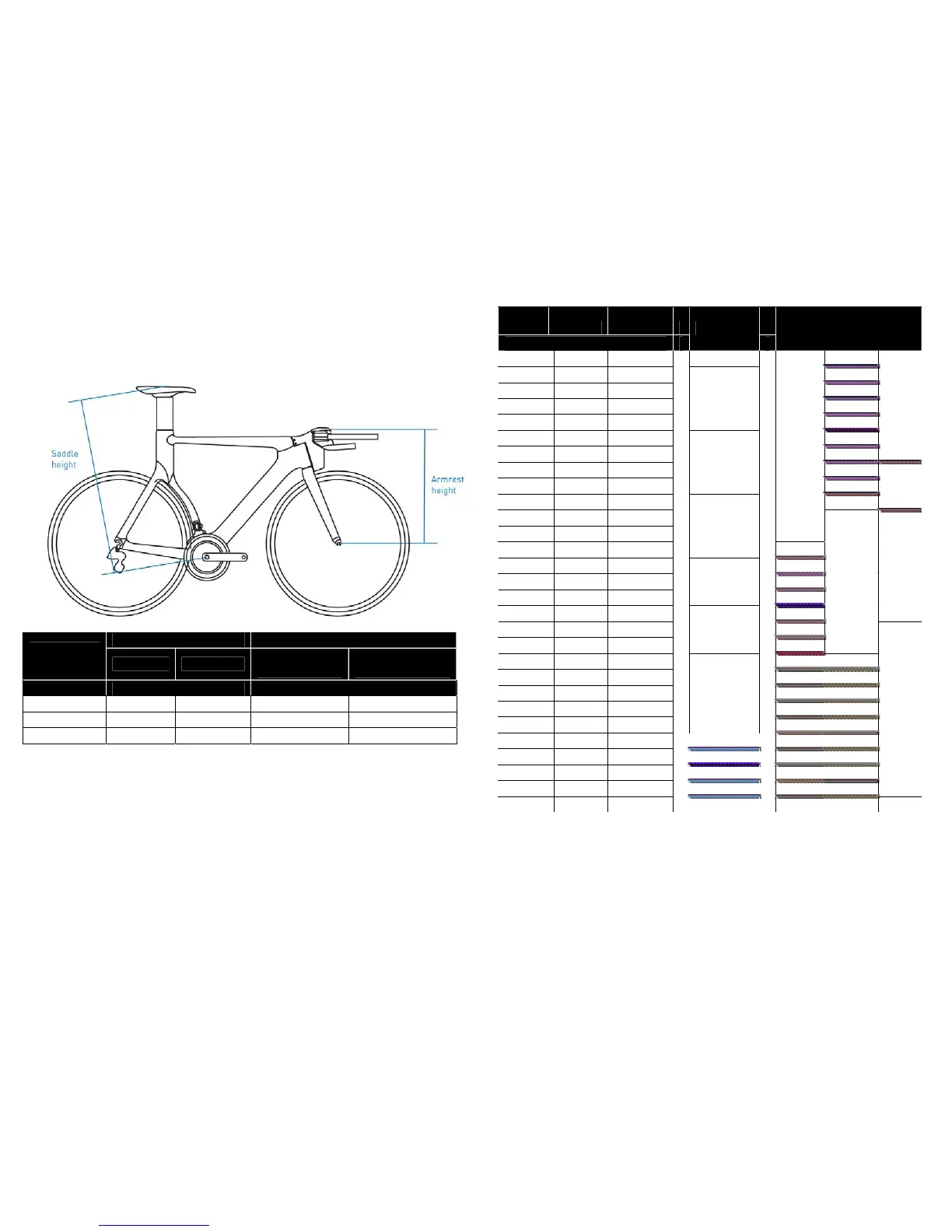

How to select the right frame size ?
The most accurate way to chose from one of the three sizes available is to
refer to the table below.
Please refer to the armrest height to select your frame size.
SADDLE HEIGHT
ARMREST HEIGHT
FRAME
SIZE
mini max
Low stem
no spacer
High stem
40mm of spacers
(centimeters) (centimeters)
S 65 75
42,9 54,9
M 74 81
45,8 57,8
L 80 89
48,7 60,7
6
If you are not sure about your armrest height, you can still refer to this basic
size table.
This recommendation helps you to select approximately your frame size
from:
- your height
- your inseam
- your saddle height
- your actual TCR frame size
RIDER
SIZE
INSEAM
SADDLE
HEIGHT
(centimeters)
TCR TRINITY ADV SL
159,3 73,0 65,0
161,0 74,0 65,9
162,8 75,0 66,8
164,5 76,0 67,6
166,3 77,0 68,5
XS/43
168,0 78,0 69,4
169,8 79,0 70,3
171,5 80,0 71,2
173,3 81,0 72,1
S/46,5
175,0 82,0 73,0
176,8 83,0 73,9
178,5 84,0 74,8
S
180,3 85,0 75,7
M/50
182,0 86,0 76,5
183,8 87,0 77,4
185,5 88,0 78,3
M-L/53,5
187,3 89,0 79,2
189,0 90,0 80,1
190,8 91,0 81,0
L/55,5
M
192,5 92,0 81,9
194,3 93,0 82,8
196,0 94,0 83,7
197,8 95,0 84,6
199,5 96,0 85,4
XL/58,5
201,3 97,0 86,3
203,0 98,0 87,2
204,8 99,0 88,1
206,5 100,0 89,0
L
208,3 101,0 89,9
