Armrest and extensions
Armrest height adjustment
The armrest supports
height can be
adjusted up to 40mm
with the teardrop
spacers.
Depending on the
selected height, make
sure you are using the
correct screw length
as detailed.

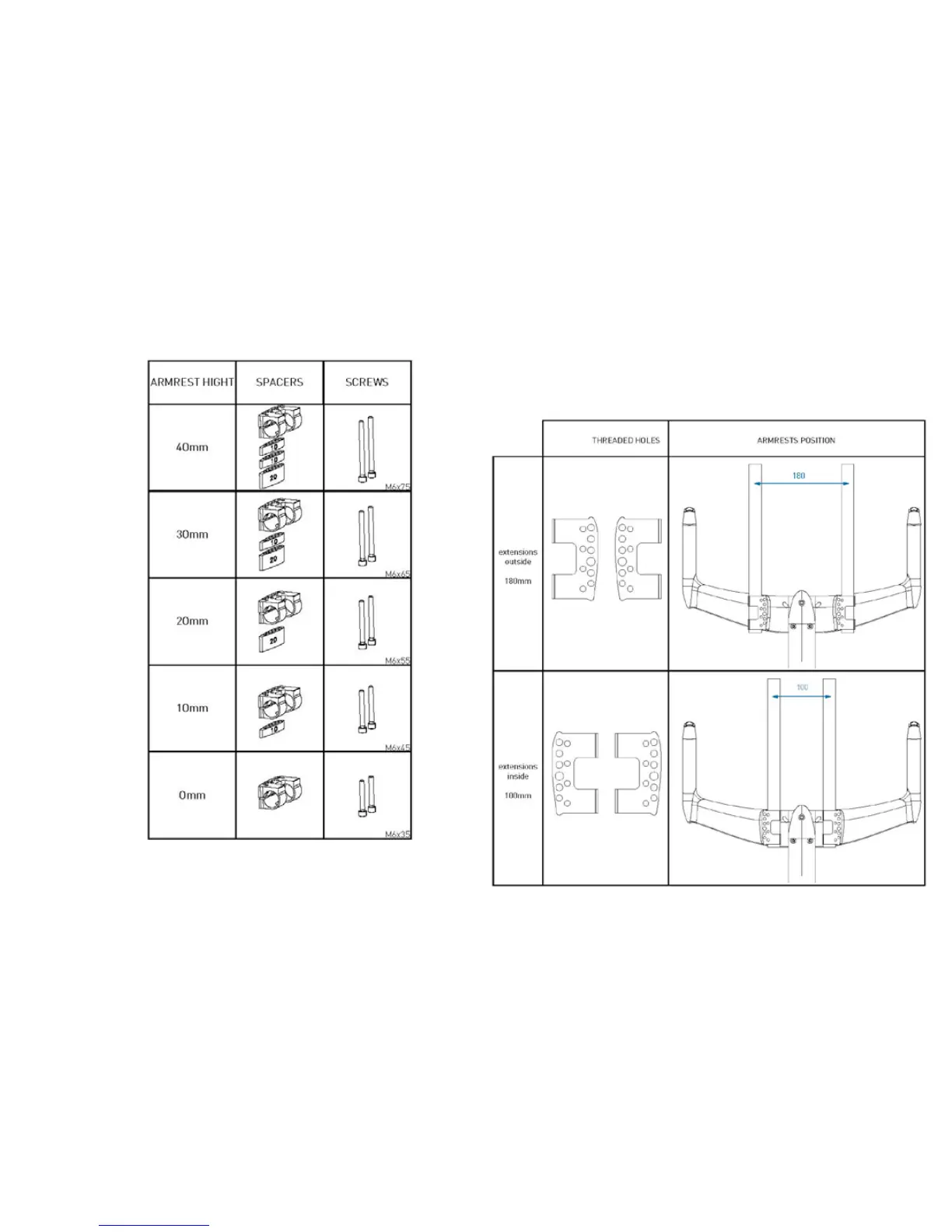

Figure 4 : Armrest height spacers and screws
lengths
14
Extensions adjustment
First, by swapping the extension clamps, you can choose either a wide
extension setup or a narrow setup.
Secondly, you can refine your extension setup by turning the extension’s
bend inward or outward.
As well, the extensions can slide in the clamps. You can adjust the
extensions both fore and aft.
Figure 5 : extensions width adjustment
