AeroDrive Stem Introduction
AeroDrive size selection
The AeroDrive system is provided with three different stems :
- Low (-40mm)
- Middle (0mm)
- High (+40mm)
With this three stem set, you can adjust your base bar height by +/-40mm. A
total range of 80mm for each frame size is possible.
In addition to this, you can add up to 4mm of teardrop washers to space your
armrest over the base bar.
Similar to the table used to select the appropriate frame size, here is some
additional information to select your stem size.
ARMREST HEIGHT
SADDLE
HEIGHT
LOW STEM MIDDLE STEM HIGH STEM
mini max
min
max
min
max min
max
FRAME
SIZE
(centimeters)
(centimeters)
S 65 75
42,9
46,9 46,9 50,9 50,9
54,9
M 74 81
45,8
49,8 49,8 53,8 53,8
57,8
L 80 89
48,7
52,7 52,7 56,7 56,7
60,7
12

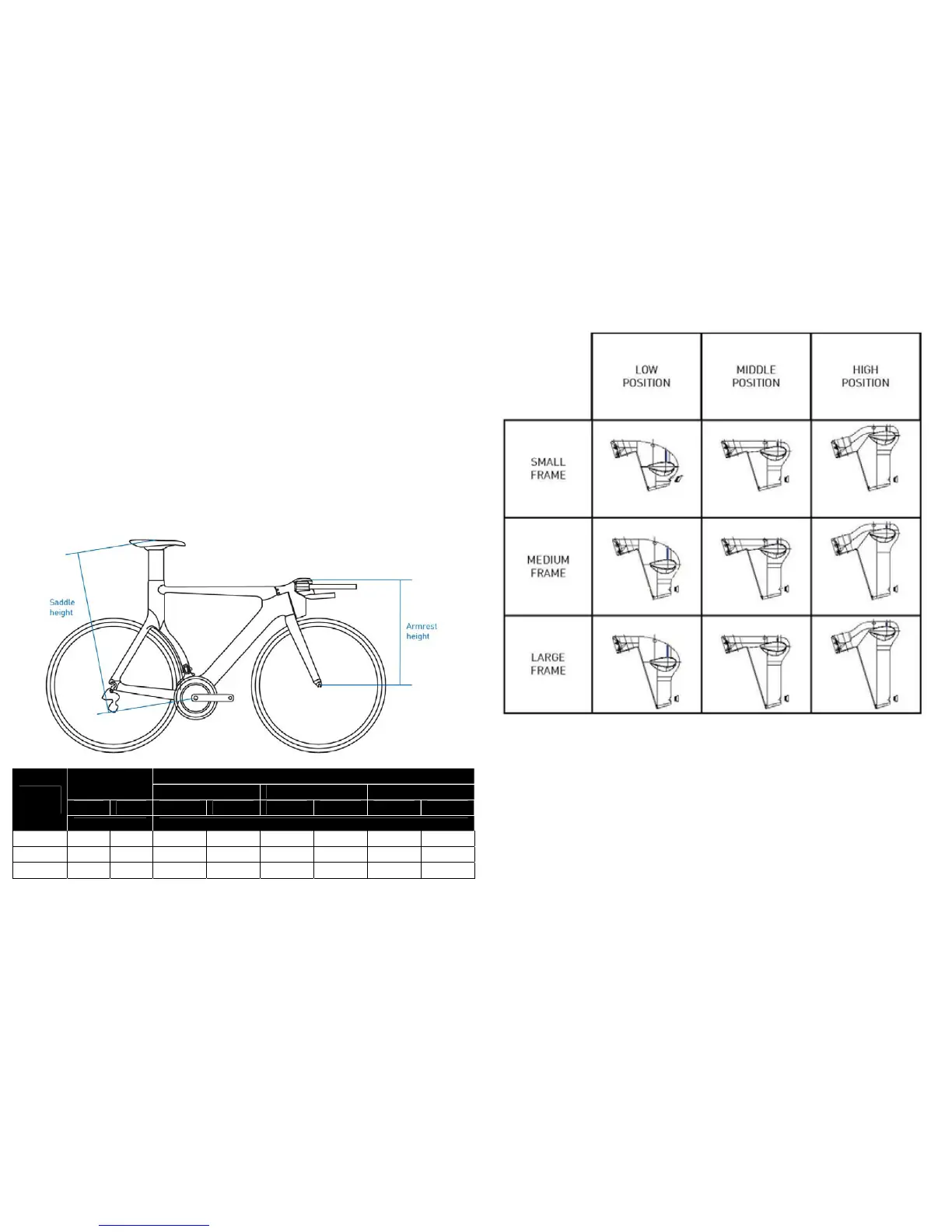

Figure 3 : AeroDrive stem range
