AeroDrive Cockpit
Overview
AeroDrive is a completely integrated stem, base bar and extension set. None
of the parts included are to be substituted.
The stem is the most critical element. It’s a set consisting of a lower stem
and an upper stem. Three stem sets are provided: low, middle, high.
How to proceed ?
1. Find out your base bar height => select the appropriate AeroDrive
stem
2. fFnd out your armrest height => calculate the spacer height you
need to assemble
3. Assemble the AeroDrive cockpit

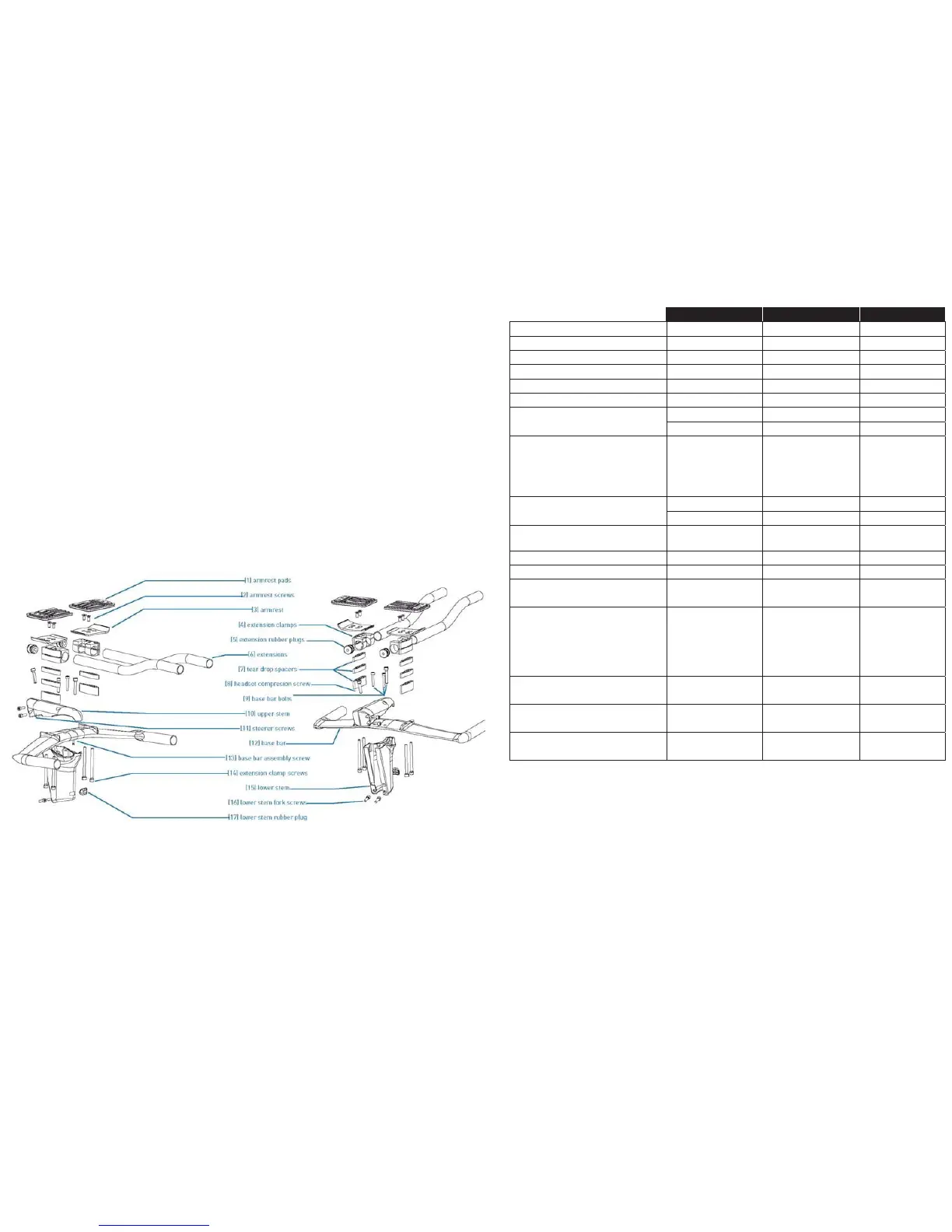

Figure 2 : AeroDrive exploded view & designations
Parts listing
Specification Quantity
Torque range
- 2 sdap tsermra ]1[
[2] armrest screws M5x6 tapered 4 4 Nm
- 2 tsermra ]3[
- 2 spmalc noisnetxe ]4[
- 2 sgulp rebbur noisnetxe ]5[
- 2 snoisnetxe ]6[
10mm 4 -
[7] tear drop spacers
20mm 2 -
[8] headset compression
screw
M6x30 1x For bearing
adjustment.
Report to
headset
instruction
M5x30 2x 6 Nm
[9] base bar screws
M6x35 1x 6 Nm
x3 mets reppu ]01[
low + middle + high
-
[11] steerer screws M5x16 2x 6 Nm
- 1 rab esab ]21[
[13] base bar assembly
screw
M4x30 1x 4 Nm
[14] extension clamp
screws
M6x75 (40mm)
M6x65 (30mm)
M6x55 (20mm)
M6x45 (10mm)
M6x35 (0mm)
4x 6 Nm
[15] lower stem 3x (low +
middle + high)
-
[16] lower stem fork
screws
M5x16 2x 6 Nm
[17] lower stem rubber
plug
- 1
