- 17 - Hardware Installation
1-4-1 Four Channel Memory Conguration
This motherboard provides twelve DDR4 memory sockets and supports Four Channel Technology. After
thememory is installed, the BIOSwill automatically detectthe specicationsand capacity ofthe memory.
Enabling Four Channel memory mode will be four times of the original memory bandwidth.
The four DDR4 memory sockets are divided into four channels each channel has two memory sockets as
following:
Channel 1: DIMM_P0_A0/DIMM_P0_A1/DIMM_P0_A2
Channel 2: DIMM_P0_B0/DIMM_P0_B1/DIMM_P0_B2
Channel 3: DIMM_P0_C0/DIMM_P0_C1/DIMM_P0_C2
Channel 4: DIMM_P0_D0/DIMM_P0_D1/DIMM_P0_D2
1-4 Installing the Memory
Read the following guidelines before you begin to install the memory:
• Make sure that the motherboard supports the memory. It is recommended that memory of the
same capacity, brand, speed, and chips be used.
• Always turn off the computer and unplug the power cord from the power outlet before installing
the memory to prevent hardware damage.
• Memory modules have a foolproof design. A memory module can be installed in only one
direction. If you are unable to insert the memory, switch the direction.
Due to CPU limitations, read the following guidelines before installing the memory in Four Channel mode.
1. Four Channel mode cannot be enabled if only one DDR4 memory module is installed.
2. When enabling Four Channel mode with two or four memory modules, it is recommended that
memory of the same capacity, brand, speed, and chips be used for optimum performance.

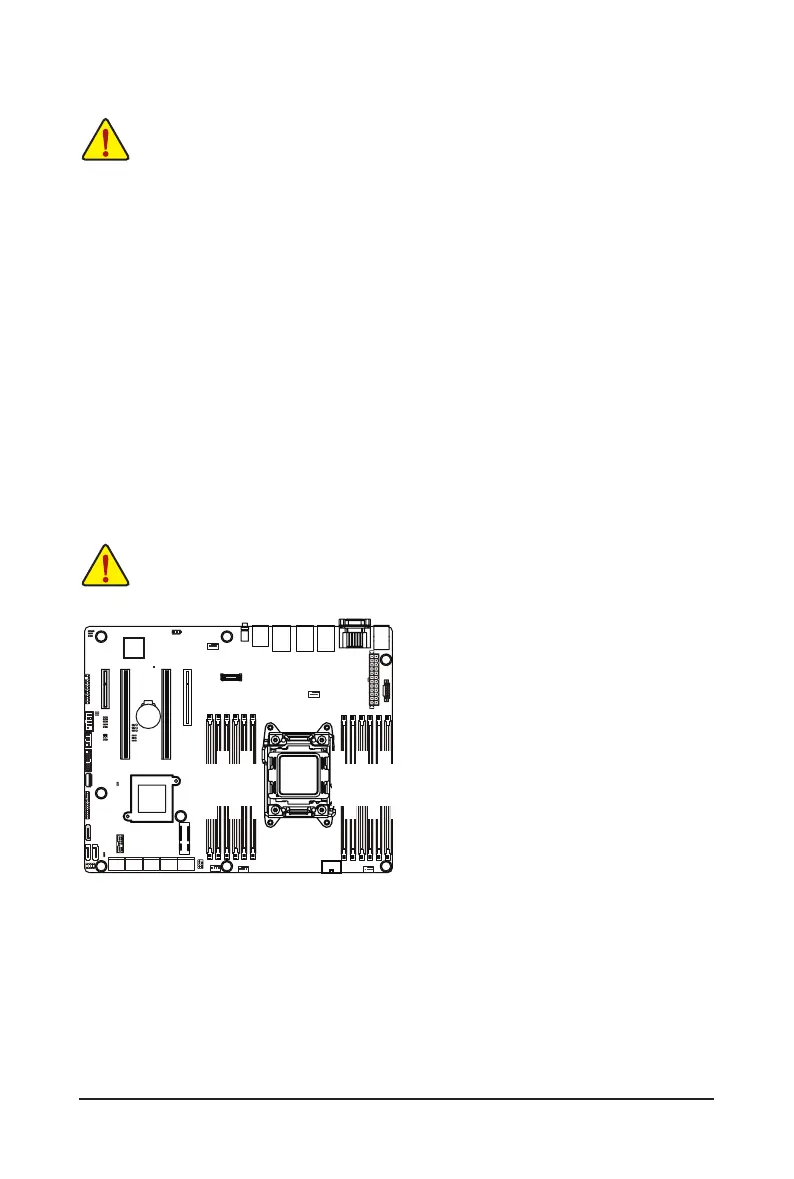

DIMM_P0_A0
DIMM_P0_A2
DIMM_P0_A1
DIMM_P0_B0
DIMM_P0_B1
DIMM_P0_B2
DIMM_P0_D2
DIMM_P0_D0
DIMM_P0_D1
DIMM_P0_C2
DIMM_P0_C1
DIMM_P0_C0
When only one DIMM is used, it must be populated in memory slot0 rst.
Memory populated sequence must be followed with slot0/slot1/slot2.
System will not boot normally with incorrect populated sequence.
