Hardware Installation - 18 -

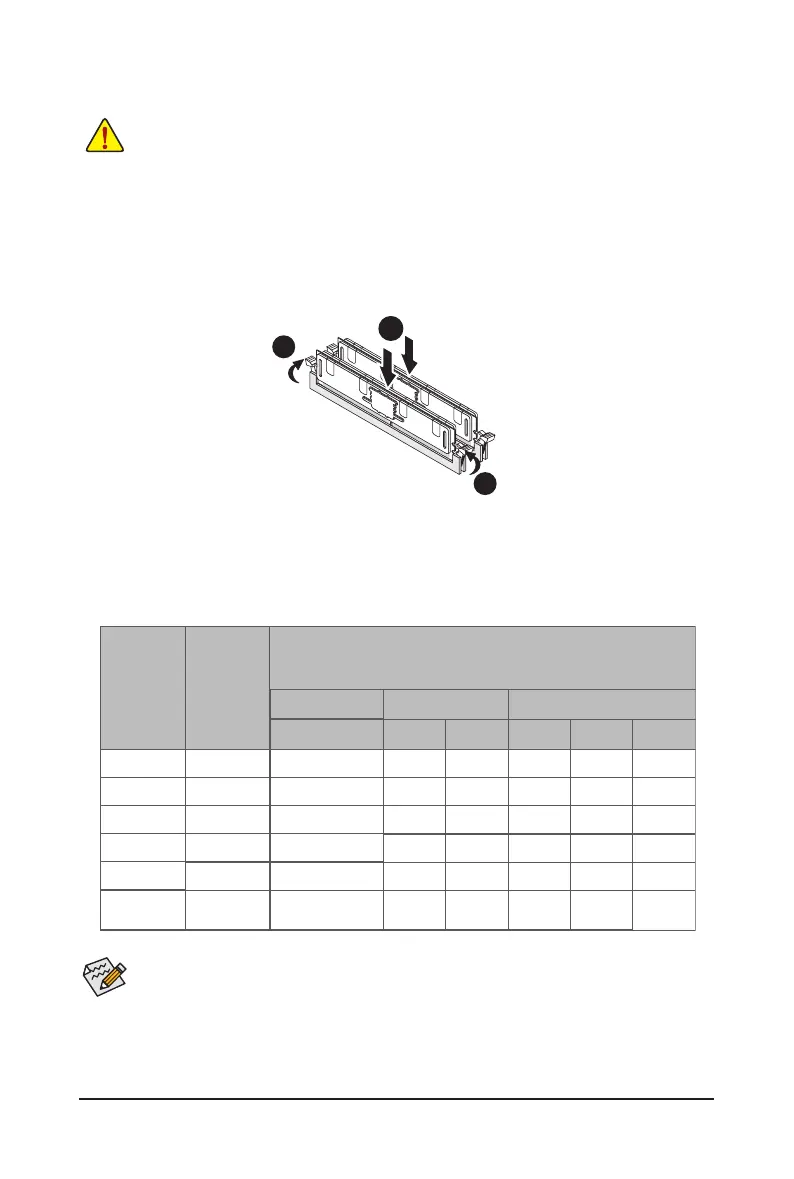

1-4-2 Installing a Memory

Before installing a memory module, make sure to turn off the computer and unplug the power

cord from the power outlet to prevent damage to the memory module.

Be sure to install DDR4 DIMMs on this motherboard.

Installation Step:

Step 1. Insert the DIMM memory module vertically into the DIMM slot, and push it down.

Step 2. Close the plastic clip at both edges of the DIMM slots to lock the DIMM module.

Note: For dual-channel operation, DIMMs must be installed in matched pairs.

Step 3. Reverse the installation steps when you wish to remove the DIMM module.

1-4-3 DIMM Population Table

Two/Three Slots Channel RDIMM Population Conguration Within a Channel

NOTE!

DDR4 2400MHz is only available on Intel Xeon® E5-2600 V4 processor.

Type

Ranks Per

DIMM and

Data Width

Speed (MT/s);

Slot Per Channel (SPC) and DIMM Per Channel (DPC)

RDIMM

LRDIMM

3DS

SRx4

2133

2133 1600

1600

1866

2133

1 Slot Per Channel

1DPC

2 Slot Per Channel

1DPC 2DPC

3 Slot Per Channel

1DPC 2DPC

3DPC

SRx8

DRx8

DRx4

QRx4

2400

8Rx4
