- 31 - Hardware Installation
PinNo. Denition
1 LED+
2 LED-
1
2

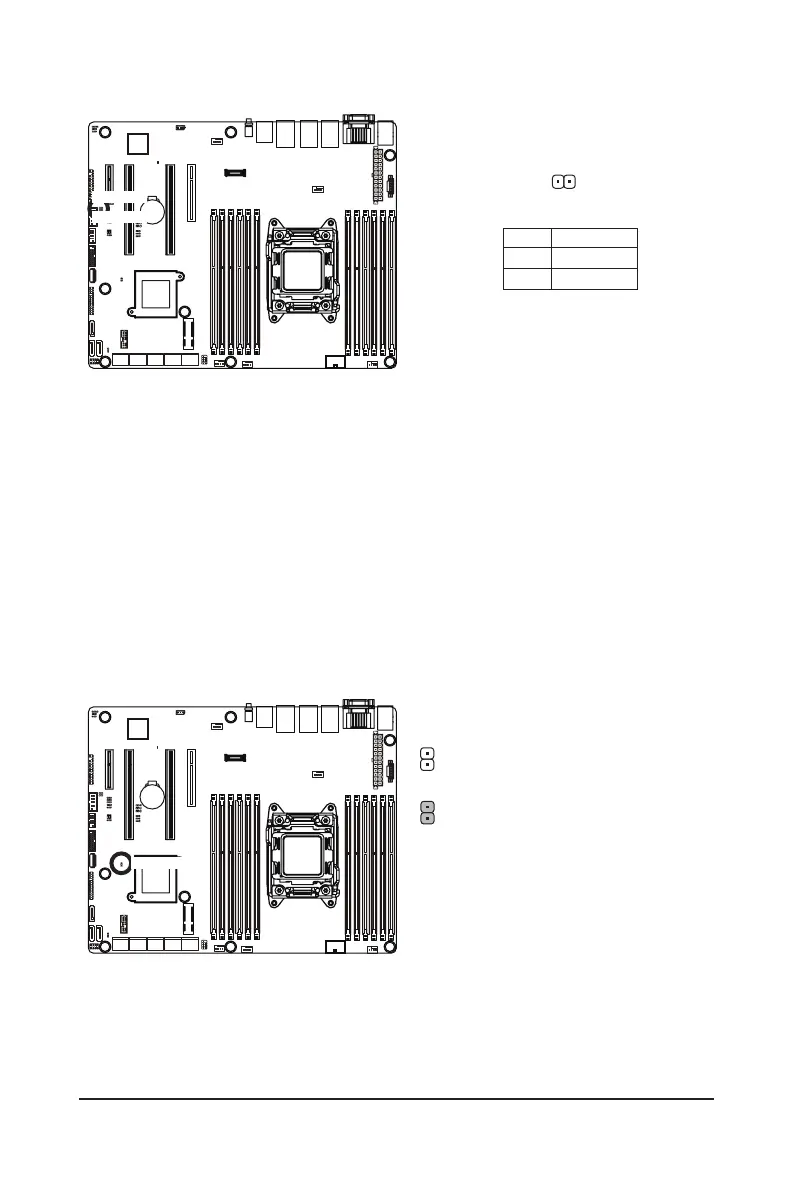

23/24) LAN4_ACT1/LAN3_ACT1(LAN4/LAN3 Active LED Header)
LAN3_ACT1
LAN4_ACT1
25) CASE_OPEN (Chassis intrusion Header)
Open: Normal operation (Default setting)
Closed: Enable chassis intrusion alter.
CASE_OPEN
